VAA46003-R.3659.A
- A17 ･ E7900 -
Lens (-barrel) unit
Adjusting focus stand for APS
(J15327)

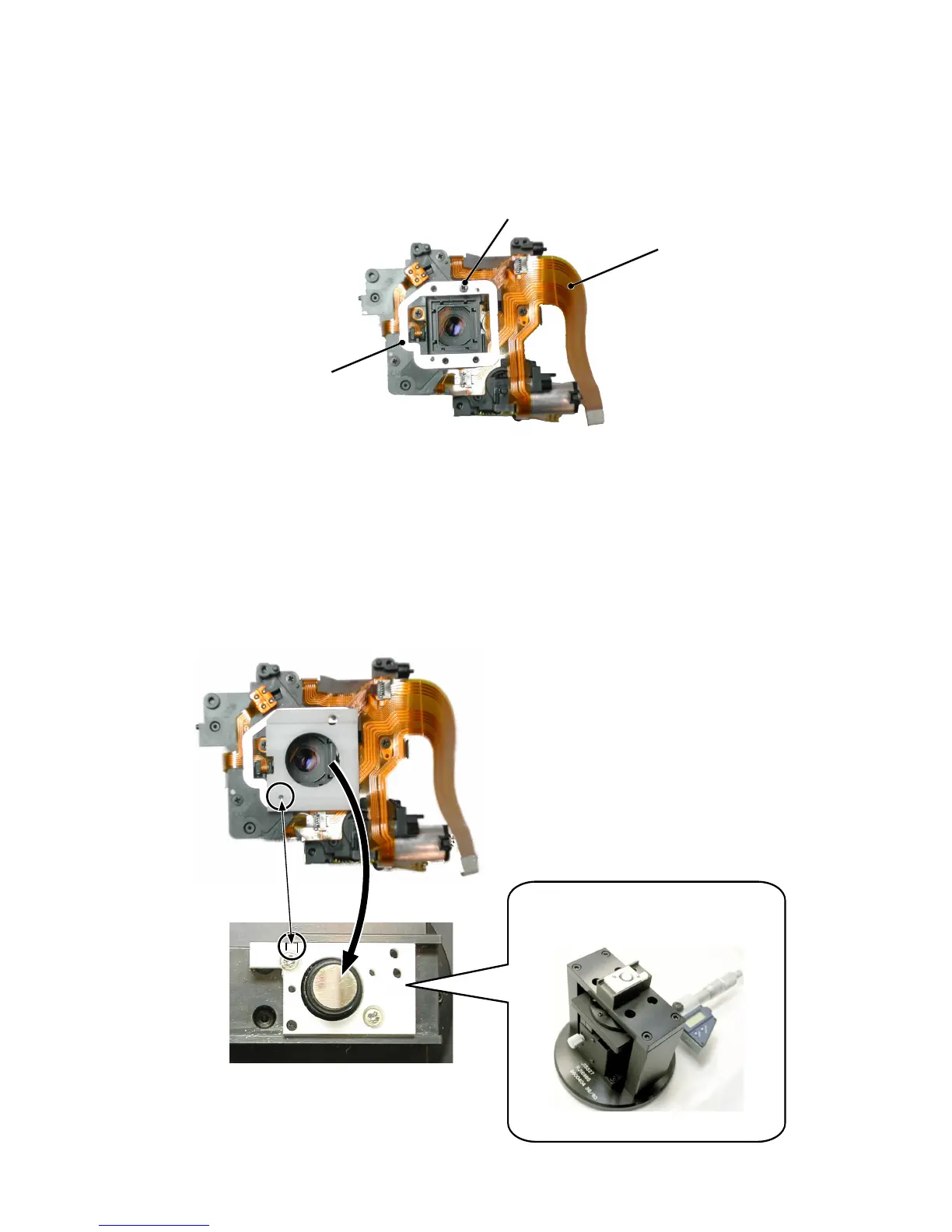

・ By using the lens unit checking tool, set the lens unit at WIDE- or TELE-position, then remove the barrier cover
ring (#666), the barrier unit (B662) and the barrier turning plate (#663).
・ Remove the screw (#681) of the lens unit.
・ Put the adapter (J15327B), which was on the stand, on the lens unit.
・ As shown below, mount the lens unit on the adjusting focus stand (J15327A).
Screw (#681)
Washer (#608)
To Next Page
