Nikon coolpix7900 - Page 54

VAA46003-R.3659.A
- A23 ･ E7900 -
Screws (802)
lug plate (395)
Battery spring (350)
Screws (802)
SD case unit (B351)
Battery case unit (B341)

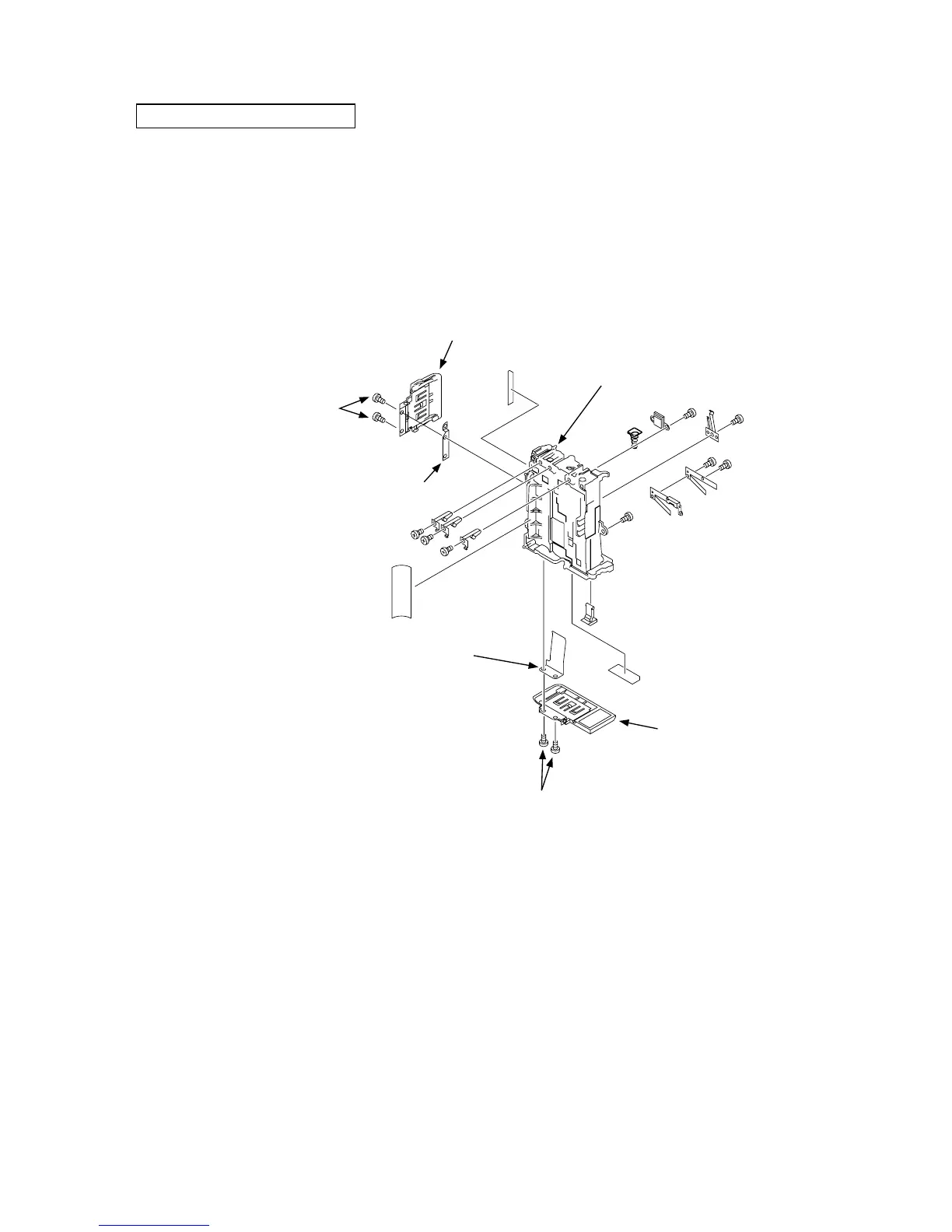

Assembly of battery chamber
・ Set the battery spring (350).
・ Set the battery case unit (B341).
・ Tighten the two screws (802).
・ Set the lug plate (395).
・ Set the SD case unit (B351) and lock it.
・ Tighten the two screws (802).
Battery chamber
