Nikon coolpix7900 - Page 55

VAA46003-R.3659.A
- A24 ･ E7900 -

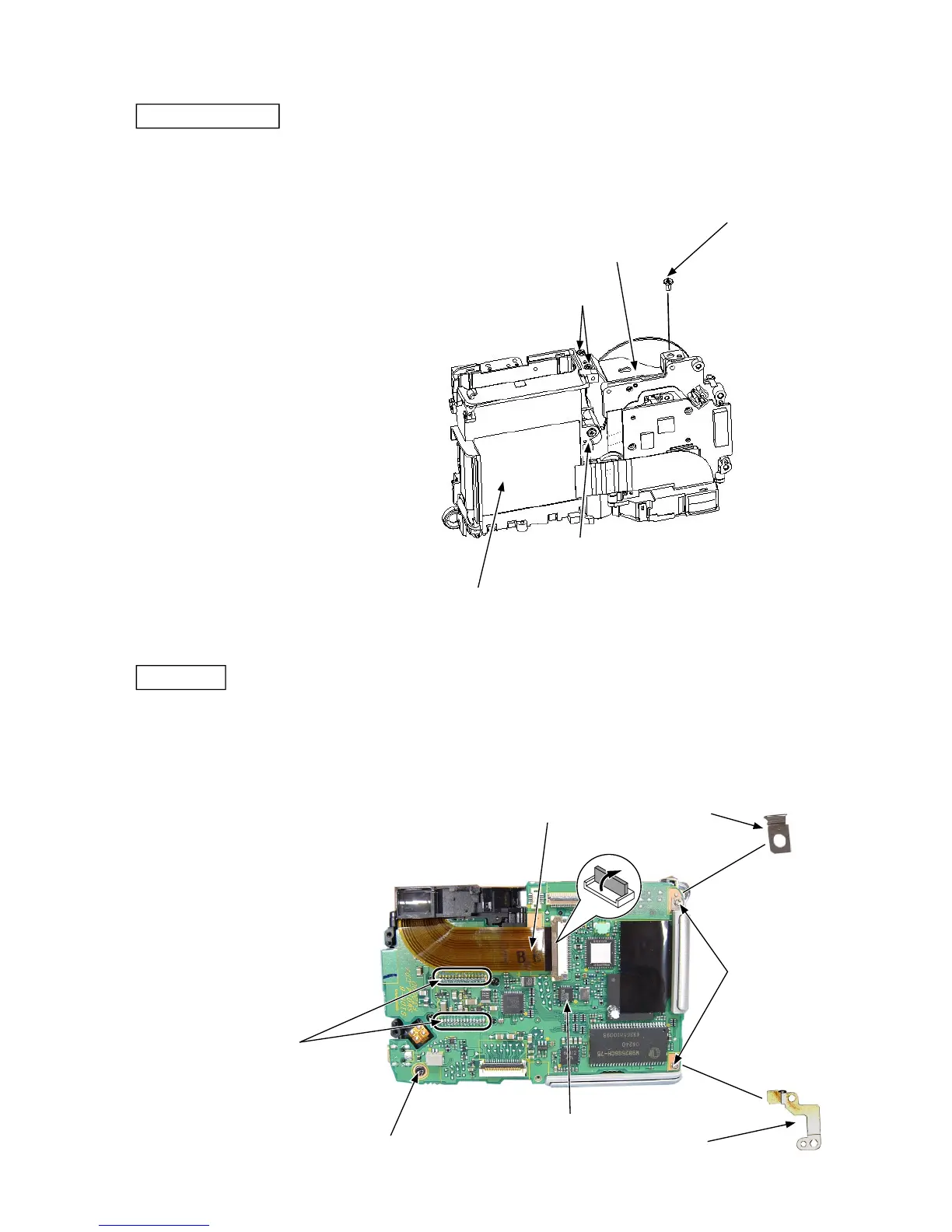

・ Set the battery chamber unit (B10345) and tighten the screw (803).
・ Set the chassis (151) and tighten the two screws (801).
・ Tighten the screw (803).
Screw (803)
Screws (801)
Screw (803)
Chassis (151)
Battery chamber unit (B10345)
Lens barrel unit
Main PCB
・ Set the lug plate (397).
・ Install the main PCB (B1001).
・ Set the lug plate (392).
・ Tighten the two screws (818).
・ Tighten the screw (803).
・ Perform soldering.
・
Set the FPC.
FPC
Lug plate (392)
Lug plate (397)
はんだ
Screw (803)
Screws (818).
Main PCB (B1001)
