Nikon coolpix7900 - Page 56

VAA46003-R.3659.A
- A25 ･ E7900 -

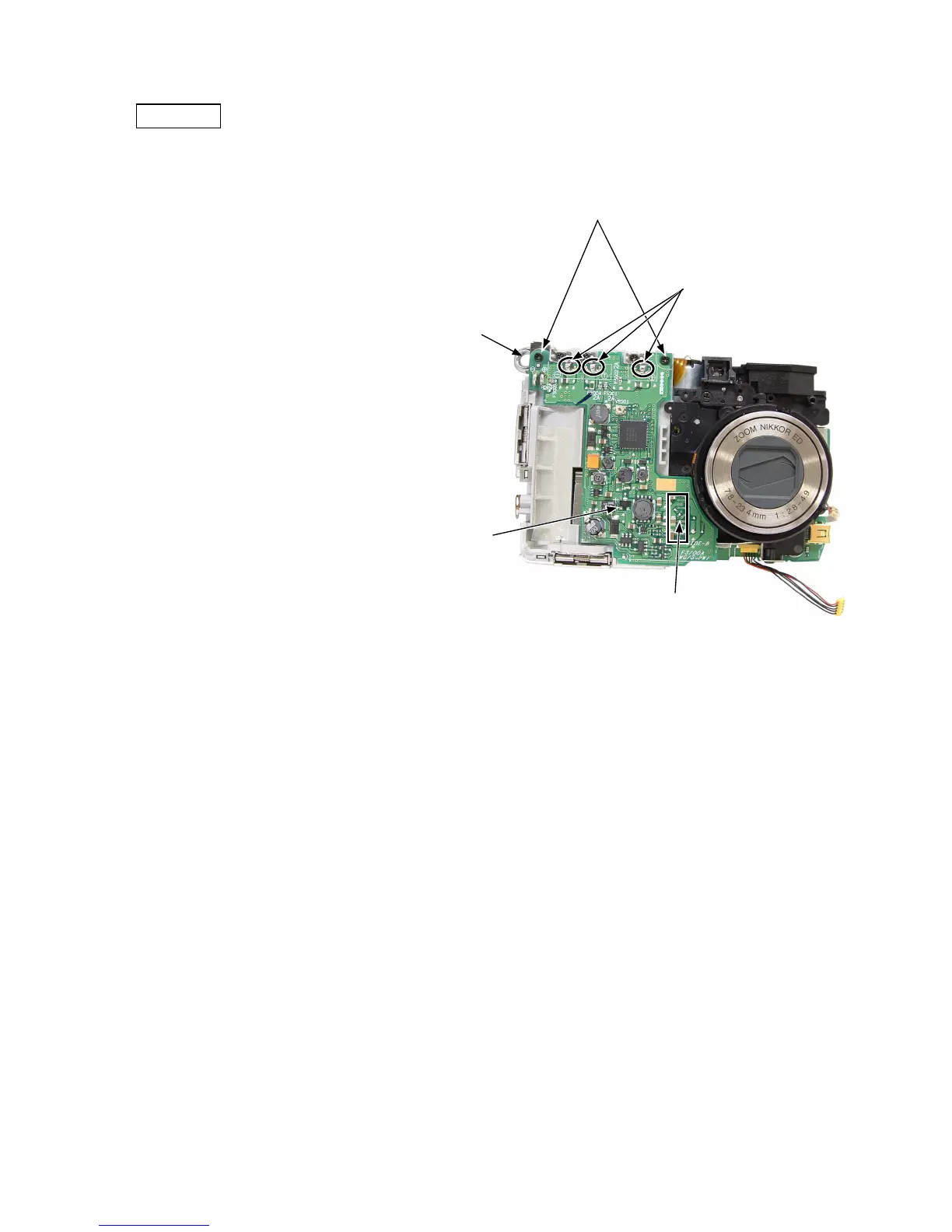

Strap eyelet (381)
Screws (816)
Armature
DC/DC PCB
Position of the main PCB connector (Rear surface)
DC/DC PCB
・ Set the strap eyelet (381).
・ Set the DC/DC PCB onto the main PCB connector..
・ Tighten the two screws (816).
・ Solder the armature.
