Nikon coolpix7900 - Page 57

VAA46003-R.3659.A
- A26 ･ E7900 -
SB control harness (1013)
Connector
（Fig.1）
Microphone (1023)
Cord arranging tape (717)
Cord arranging tape (716)
Lead wire [black] and the lead wire [red]
Condenser.
Cord arranging tape (716)
Microphone (1023)
Screws (804)
Screws (804)
SB PCB
SB insulating sheet (711)
SB PCB

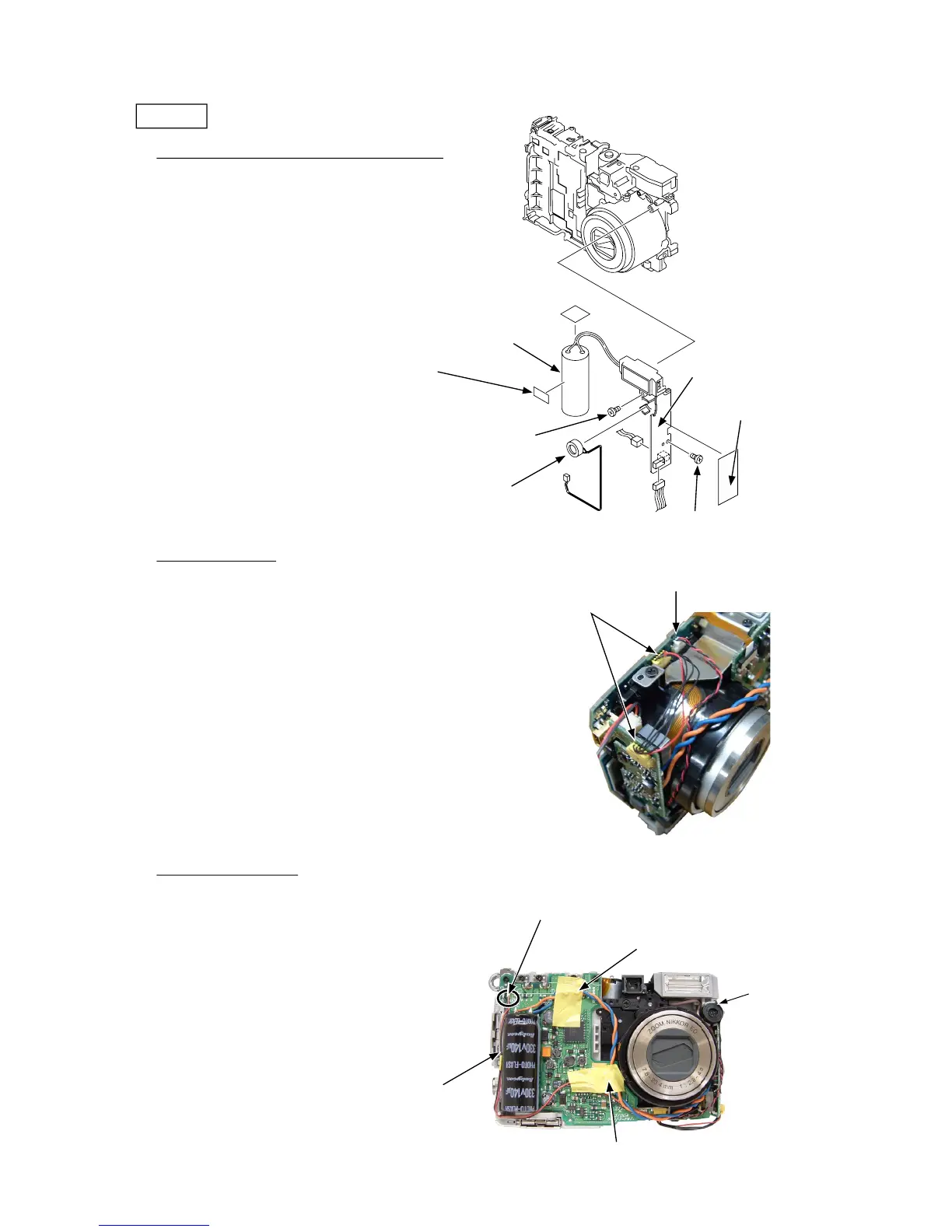

・ Install the SB PCB and tighten the two screws (804).
・ Adhere the SB insulating sheet (711).
・ Set the microphone (1023) and insert the connector. (Fig. 1)
・ Set the condenser.
3. Setting of cords/tapes
2. Setting of harness
1. Installation of condenser/microphone/SB PCB
・ Set the SB control harness (1013).
・ Solder the lead wire [black] and the lead wire [red].
・ Adhere the cord arranging tape (716).
・ Adhere the cord arranging tape (717).
Cord arranging tape (717)
