Nikon D700 - Cf-Pcb

VBA22001-R.3754.A
-D17 ･ D700-

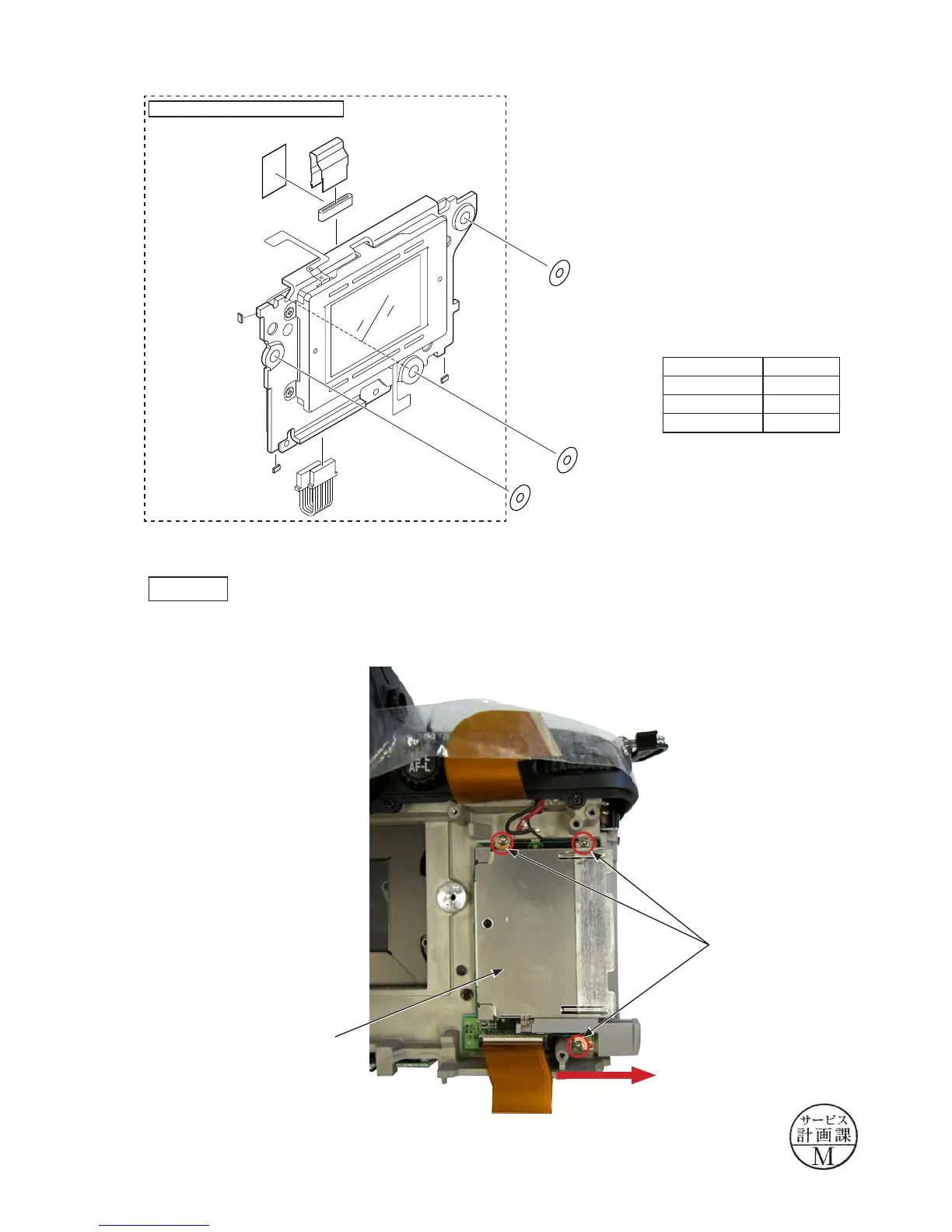

Tape (#TA-0005)
Connection-FPC (#5041)
Core (#5068)
Image sensor unit (#B20521)
Harness (#5072)
Washer
Washer
Washer
・
Position the lever of the CF-PCB (#5018) toward the direction of the arrow, and take out the three
screws (#1543).
CF-PCB
Screw (#1543)
10 × 16
CF-PCB (#5018)
Washer(#531)
Washer(#531)
Washer(#531)
Washer
#534 T=0.02
Washer
#535 T=0.1
Washer
#536 T=0.06
Washer
#531 T=0.1
