Nikon D700 - Sensitivity Ratio Adjustment

VBA22001-R.3754.A
-A134 ･ D700-
(5) Gr/Gb compensation adjustment (R/B lter) - Line crawl adjustment
Using the tool lens (F8), the camera is faced to
the shutter tester (LV12 equiv.) with SP3 (R lter) or SP1 (B
lter) being put between them, and the adjustment is made so that the difference in G output average between
B-G line and G-R line when the whole screen is divided in areas, can fall in the standard range.
(6)Sensitivity ratio adjustment
Using the shutter tester (LV9 equiv.) and tool lens (F5.6), the adjustment is made so that the R/G, B/G output
becomes the same as the output ratio of the sensitivity ratio reference value that was calculated by the reference
body. The adjustment is made only under the condition of ISO200, and the average value of (425 pixels × 425
pixels) which was deviated from the center by 425 pixels is used.
(7) Sensitivity/sensitivity ratio inspection
Using the color viewer (LV13 equiv.) and tool lens (F5.6), inspect whether a difference from the reference body
is in the range of standards.

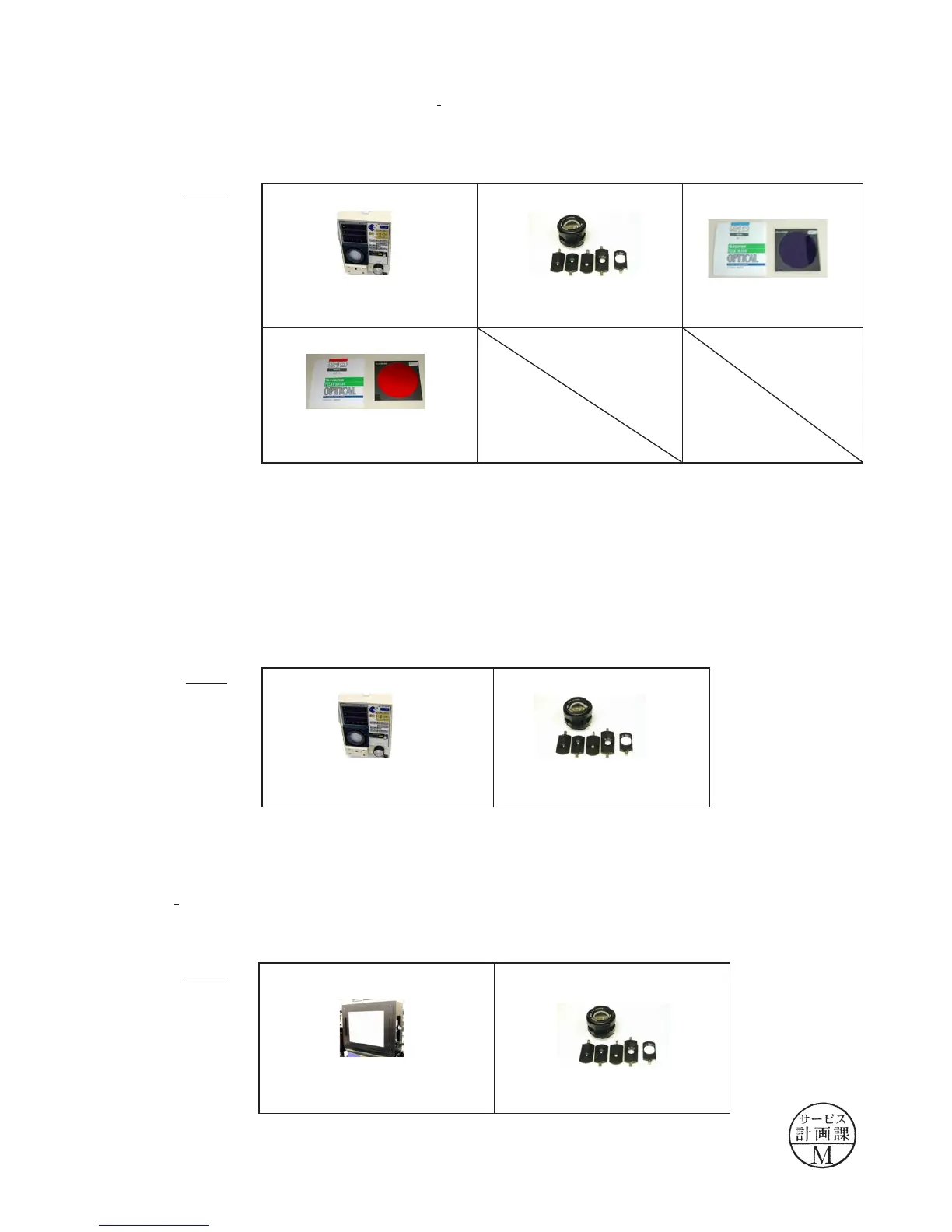

Device
Device
SHUTTER TESTER EF-1(CE)
J19123
D1 STANDARD LENS
J61185
FILTER SP1
FILTER SP3
J63085
J63087
SHUTTER TESTER EF-1(CE)
J19123
D1 STANDARD LENS
J61185
Device
COLOR VIEWER
J63070
D1 STANDARD LENS
J61185
August, 19,2008
Changed page (Overall revision)
INC
