Nikon D700 - Page 47

VBA22001-R.3754.A
-D41 ･ D700-
WB
QUAL
ISO

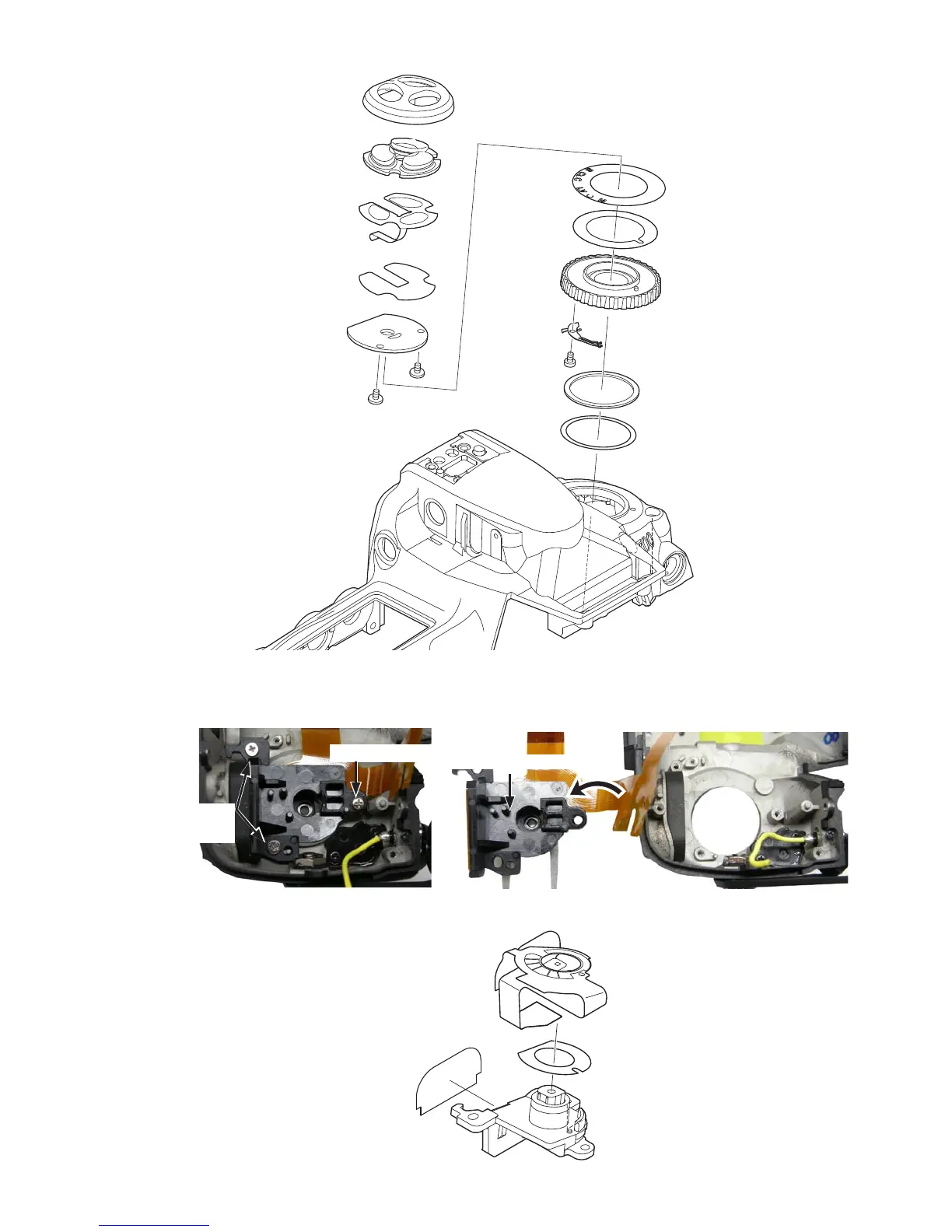

Button cover (#502)
Conducting button (#501)
Trefoil FPC (#5026)
Button support plate (#503)
Screw (#1640) x2
Ring (#518)
Tape (#519)
Drive mode dial (#504)
Drive mode SW
brush (#507)
Screw (#1533)
Washer (#512)
Washer (#511)
Double-stick tape (#516)
･
Take out the screw (#1571) and the two screws (#1609), and remove the base plate (#505).
Screw (#1571)
base plate (#505)
Screw (#1609)
×2
Base plate (#505)
Double-stick tape (#514)
Mode dial FPC (#5025)
Double-stick tape (#515)
INC
