Chapter 1 Microscopy Procedures
18
Chapter 1-3
Microscopy Procedures
Simple Polarizing Microscopy
Microscopy operation
11
Bring a portion of the specimen where there is
no sample into the optical path.
Rotate the stage knob to move the specimen and bring a portion where there is no sample under the cover glass into
the optical path.
12
Bring the analyzer and the polarizer into the
optical path.
Push in the analyzer IN/OUT knob into the analyzer tube
for simple polarization to bring the analyzer into the optical
path.
Set the polarizer unit for simple polarization over the field
lens.
Make sure the orientation mark on the polarizer (roughly)
comes to the front at this point.
Keep the fixing screw of the polarizer unit loosened.
CLAMP
TORQUE
ND4
ND8
OUT
IN
ND4
ND8
OUT
IN

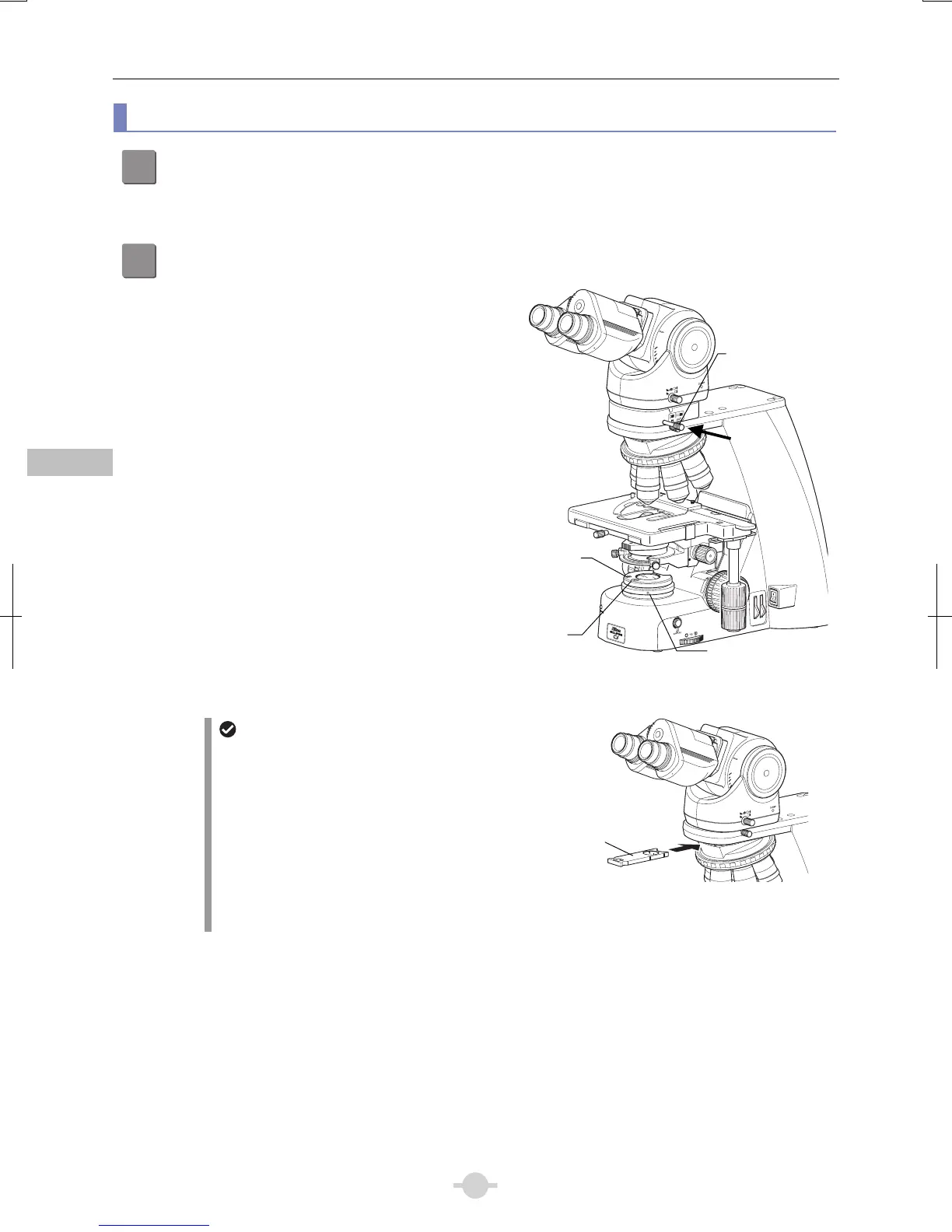

Bringing the analyzer into the optical path
Installing the polarizer
Slider-type analyzer for simple
polarization
Using the D-SA Analyzer Slider for Simple
Polarization instead of an analyzer tube for simple
polarization can keep the eye point from rising. To
use the D-SA Analyzer Slider for Simple
Polarization, the C-NA sextuple nosepiece with
analyzer slot is required. Use the analyzer slide
as follows:
Push in: The analyzer goes into the optical path.
Pull out: The analyzer is removed from and the
dummy hole goes into the optical path.
Using D-SA analyzer slider
nalyzer
IN/OUT knob
Pivot
Fixing screw
Orientation
mark
D-SA Analyzer
slider
To Next Page
