Nikon ECLIPSE Ei User Manual

Chapter 1 Names of Parts
45

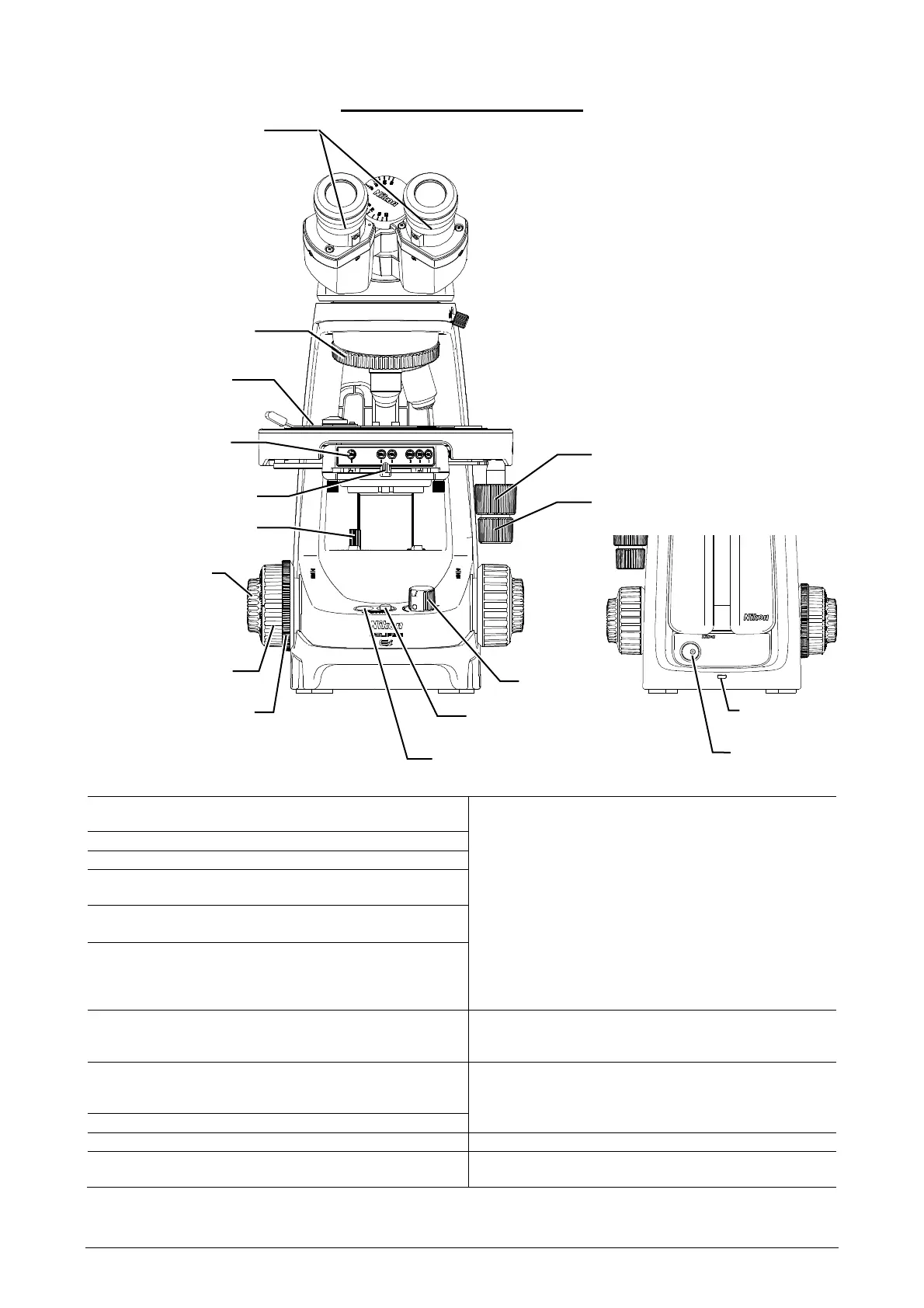

Nomenclature of Control Section
(1) Diopter ring: Compensates for the difference between
the right and left eyesight of the observer.
(12) Status display: Displays the connection state of the
power source and the ON/OFF state
of the light.
Off: The AC adapter (power source) is not
connected.
Orange: The AC adapter (power source) is connected,
and the light ON/OFF switch is off.
Green: The AC adapter (power source) is connected,
and the light ON/OFF switch is on.
(2) Revolving nosepiece: Switches the objectives.
(3) Specimen holder: Holds a specimen.
(4) Stage back & forth movement knob:
Moves the specimen holder back and forth.
(5) Stage right & left movement knob:
Moves the specimen holder right and left.
(6) Stage vertical movement stopper:
Sets the upper limit of the stage movement.
Used for the fail-safe device for specimen damage
protection.
(7) Adjustment position mark of aperture diaphragm:
Display corresponding to the magnification of the
objective
(13) Light ON/OFF switch: Turns the light on or off.
(8) Aperture diaphragm lever:
Adjusts the aperture diaphragm from φ2 mm to
φ28 mm.
(14) Brightness control knob: Adjusts illumination.
Turned clockwise: Increases brightness.
Turned counterclockwise: Decreases brightness.
(9) Fine focus knob: Used for fine focusing.
(10) Coarse focus knob: Used for coarse focusing. (15) DC input connector: Connected with the AC adapter.
(11) Coarse focus knob torque adjustment ring:
Adjusts the tension of the coarse focus knob.
(16) Security slot: Connected with the security wire.
(1) Diopter ring
(3) Specimen holde
r
(4) Stage back & forth movement knob
(5) Stage right & left movement knob
(6) Stage vertical movement
stopper
(8) Aperture diaphragm leve
r
(9) Fine focus knob
(7) Adjustment position
mark of aperture
diaphragm
(10) Coarse focus knob
(12) Status display
(13) Light ON/OFF switch
(14) Brightness
control knob
(11) Coarse focus knob
torque adjustment ring
(2) Revolving nosepiece
(16) Security slot
(15) DC input
connector
