Storing the microscope
After using the microscope, arrange it according to the
following storage conditions, and then store it in the
designated storage location. → “Notes on Handling the
Product” - 3, “Installation location and storage location”
Store the AC adapter in the storage part on the rear of the
microscope, and wind the cords around. The AC adapter
can be stored with it connected to the microscope.

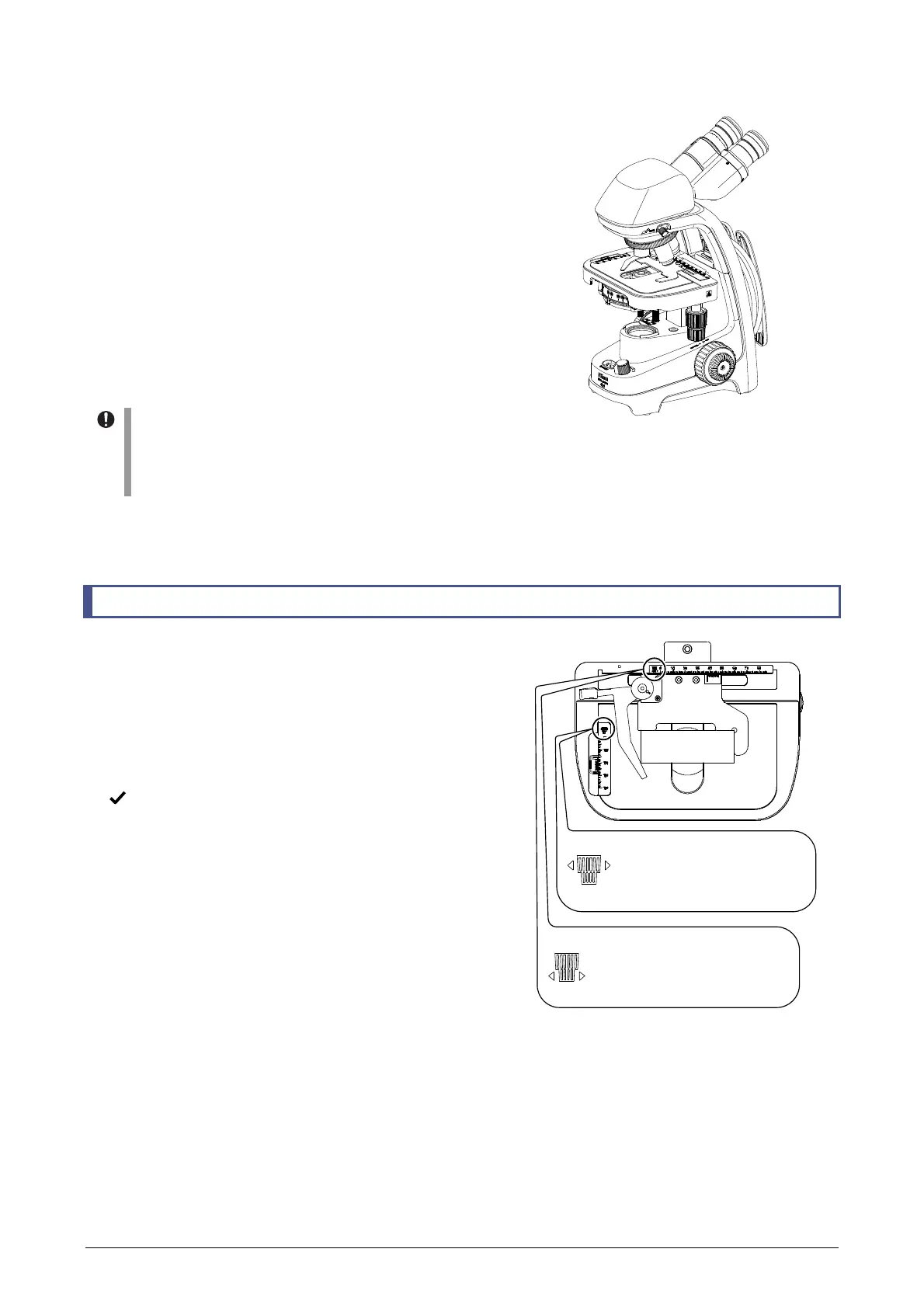

Rotate the eyepiece tube 180 degrees from the observation
point and fix it backward.
Then, the upper part of the microscope is made more
compact. The binoculars do not hit somewhere, resulting in
less storage space. → Chapter 4, “Assembly” - Step 2,
“Change the direction of the eyepiece tube, remove and
attach the eyepiece tube”
Loosen the fixing screw for the eyepiece tube a
couple of turns, and then turn the eyepiece tube. If
the screw head protrudes, turning the eyepiece tube
might damage the circular dovetail mount of it by the
screw head.
3.2 Moving the Specimen
You can set the specimen fixed to the specimen holder to
the desired position by operating the stage motion knobs to
move the specimen holder back and forth, and right and left.
Set the specimen so that the region you want to observe is
in the optical path.
The end of the travel scale shows the icon of the stage
motion knob to be operated.
Travel scale
The stage has the scales that indicate the travel of the
specimen in the horizontal and vertical directions. You can
use the main scale and vernier scale to read the travel in
units of 0.1 mm.
This mark indicates that
rotating the upper side of the
stage motion knob moves the
specimen back and forth.
This mark indicates that
rotating the lower side of the
stage motion knob moves the
specimen right and left.
