Nikon Eclipse Ni-U User Manual

Chapter 1 Assembly
23
Assembly
MODEL ECLIPSE Ni-U
NIKON CORPORATION
TOKYO, JAPAN
100–240V~
1.7A
50/60Hz
MADE IN JAPAN
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est confirme à la norme NMB-003 du Canada.
920001
INSPECTION
EQUIPMENT
4N75
LAMP
DC12V 100W
DSC
LAMP CTRL
(BOX B)
1.
2.
3.
Do not touch the lamphouse while the lamp is lit.
The surface of the lamphouse becomes hot when the
lamp is on.
Turn off the power and allow the lamp and lamohouse
to cool enough before replacing the lamp.
Wait for at least 30 minutes after turning off the
lamp.
Use 12V100W HALOGEN lamp only.
HALOGEN 12V100W
952001
NI-LH
CAUTION!
-High Temperature-
JAPAN

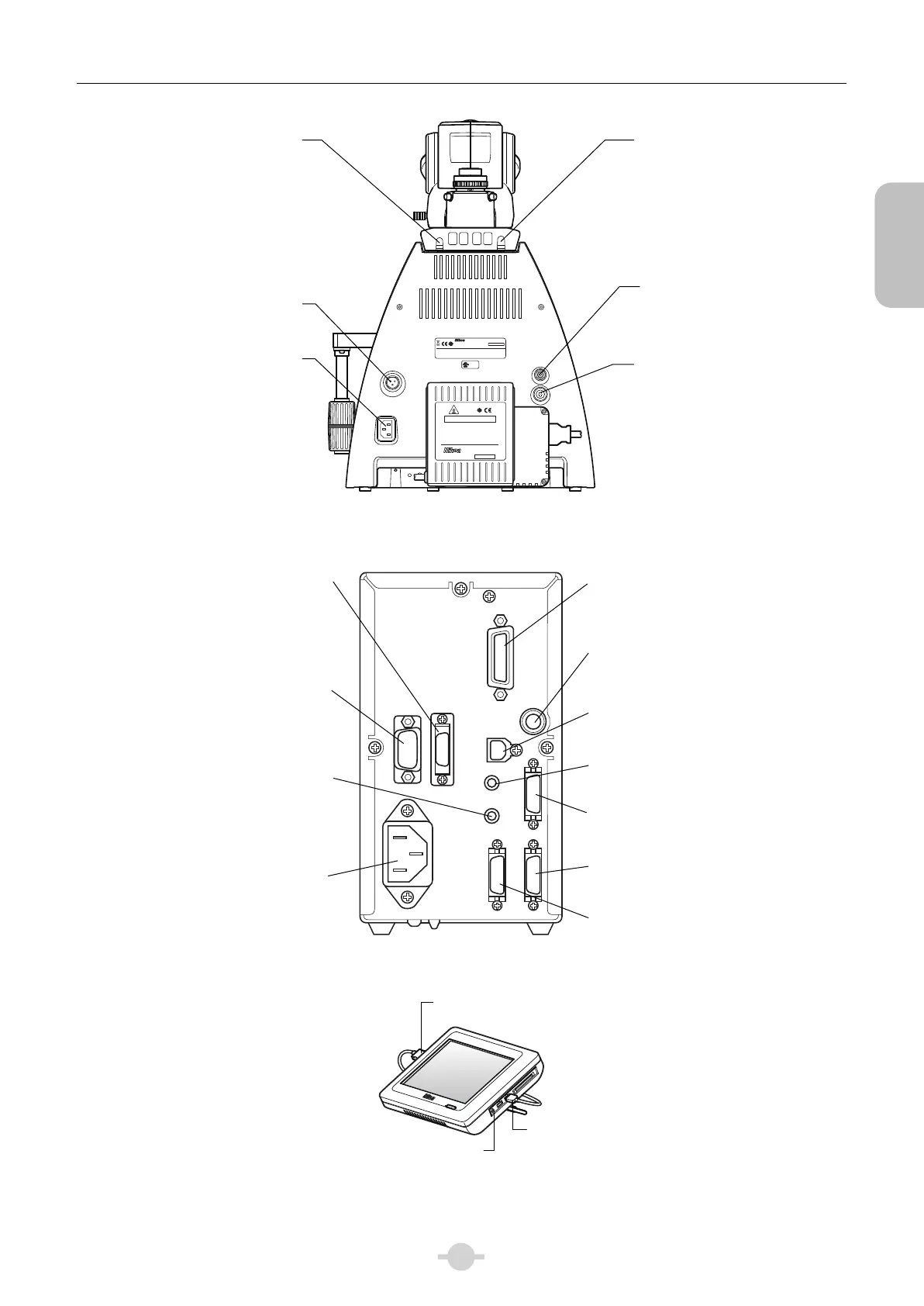

Ni-U main body rear
CONTACT
ARM1
DIA
SHUTTER
EPI
SHUTTER
100-240V~
1.0A
50/60Hz
CONTACT
ARM2
DSC
(Ni-U)
Ex-OUT
HGFIE REMOTE
USB
LAMP
CTRL
(Ni-U)
Control box B rear
DS-L3 DS camera control unit
CONTACT ARM1
(Connect to CONTACT ARM1 on
control box B)
DSC
(Connect to DSC (Ni-U) on
control box B or EXT.I/O on DS-L3/U3)
CONTACT ARM2
(Connect to CONTACT ARM2
on control box B)
LAMP
(Connect to dia-illumination
lamphouse)
AC inlet
(Connect to AC power supply via
power code)
LAMP CTRL (BOX B)
(Connect to LAMP CTRL (Ni-U) on
control box B)
HGFIE
(Connect to RS232C on motorized HG
precentered fiber illuminator)
REMOTE
(Connect to simple remote
control pad)
CONTACT ARM1
(Connect to CONTACT ARM1 on contact arm)
DSC(Ni-U)
(Connect to DSC on Ni-U main body)
Ex-OUT
(Connect to EXT.I/O on DS-L3/U3)
LAMP CTRL(Ni-U)
(Connect to LAMP CTRL (BOX B) on Ni-U main
body)
USB connector
(Connect to USB (H) on DS-L3 or PC)
CONTACT ARM2
(Connect to CONTACT ARM2 on contact arm)
DIA SHUTTER
(Connect to DIA motorized shutter)
EPI SHUTTER
(Connect to EPI motorized shutter)
AC inlet
(Connect to AC power supply via
power code)
CAMERA
(Connect to camera head)
USB(H)
(Connect to USB on control box B)
EXT.I/O
(Connect to DSC on Ni-U main bod
y
or Ex-OUT on control box B)
