Nikon eclipse Ti-S/L100 - Ti-S, Ti-S;L100

Chapter 1 Part Names
1.1 Microscope Configuration
13
1.1.2 Ti-S, Ti-S/L100
The illustrations below show the Ti-S microscope body with the following accessories:
TI-DS Dia Pillar Illuminator 30W, ELWD-S Condenser, TE-PS30 30W Power Supply, TI-SR Rectangular
Mechanical Stage, TI-T-B Eyepiece Base Unit, TI-TS Eyepiece Tube B, CFI 10x eyepieces, TI-N6
Sextuple Nosepiece, objectives, etc.
PORT
SIDE
EYE
EN
TI
-
DS 30W
6V 30W
HALOGEN

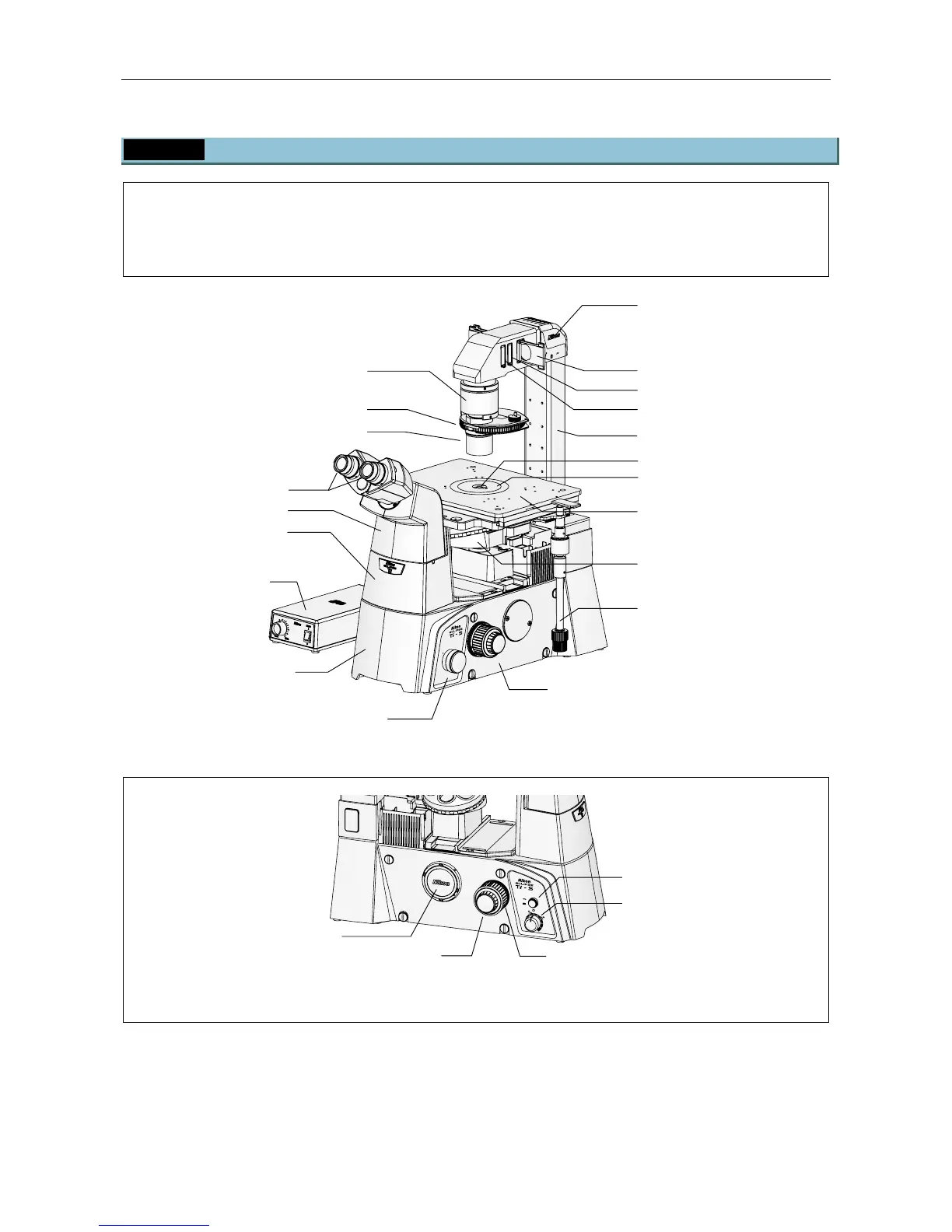

Figure 1-3 Ti-S
ON
OFF
6V30W
MAX.
12V100W
Figure 1-4 Ti-S (Left View)
* Attach a protective cap on the side port when the side port is not in use.
Lamphouse
Dia pillar illuminator (Fig.: TI-DS)
Filter sliders
Stage (Fig.: TI-SR)
Nosepiece (Fig.: TI-N6)
Stage knob
Optical path selector knob
Main body (Fig.: Ti-S)
Power supply device
(Fig.: TI-PS30W)
Eyepiece base unit
(Fig.: TI-T-B)
Eyepiece tube (Fig.: TI-TS)
Eyepieces (both sides)
Condenser lens
Condenser turret (Fig.: ELWD-S)
Condenser holde
r
Objectives
Stage ring (concentric ring)
Field diaphragm slider
Focus knob (Coarse/Fine)
Dia illumination brightness
control knob
Dia illumination ON/OFF switch
Left side port*
Torque adjustment ring
for coarse focus knob
Focus knob
(Coarse/Fine)
Dustproof slider
