Nikon eclipse Ti-S/L100 - Left View

Chapter 1 Part Names
1.2 Microscope Base
15
Left View
6V30W
MAX.MIN.
12V100W
ON
OFF

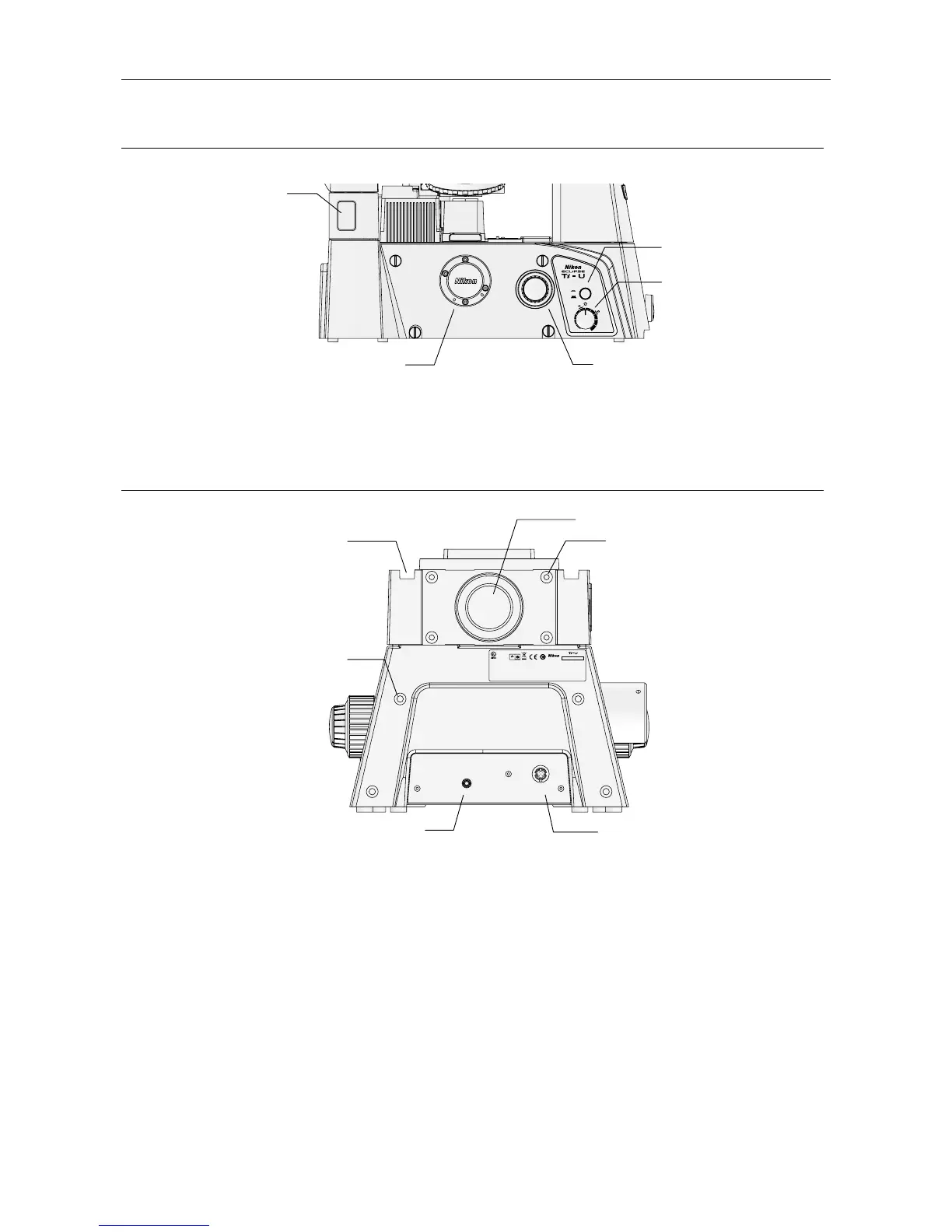

Figure 1-6 Microscope Base (Left View)
Rear View (Connector Panel)
INTERLOCK
LAMP CTRL
Gepruftes Medizinprodukt
Approved medical device
Freiwillige Produktprufung
R
5 3 2 0 0 1
This device complies with Part 15 of the FCC Rules.Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference,and
(2)
EQUIPMENT 4N75
MODEL : Ti-U
INSPECTION
TUV
Rheinland
Product Safety
JAPAN
this device must accept any interference received, including interference
that may cause undesired operation.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numØrique de la classe A est conforme  la norme NMB-003 du Canada.
Figure 1-7 Microscope Base (Rear View)
Epi-fl illumination field
diaphragm slide
r
mount
Fine focus knob,
Coarse focus knob,
Torque adjustment ring for coarse focus knob
Left side port
Dia illumination lamp
ON/OFF switch
Dia illumination
brightness control knob
Epi-fl illumination mount
LAMP CTRL connector
(for dia illumination power supply)
INTERLOCK connecto
r
(for external laser controller)
(Ti-U and Ti-U/B only)
Hub Controller B attachment
screw holes (x4)
Power cable groove
(both sides)
Epi-fl illumination attachment
screw holes (x4)
