nilan CTS 600 - Technical Specifications and Support; Unit Dimensions and Weight

May be subject to change page 24 af 25

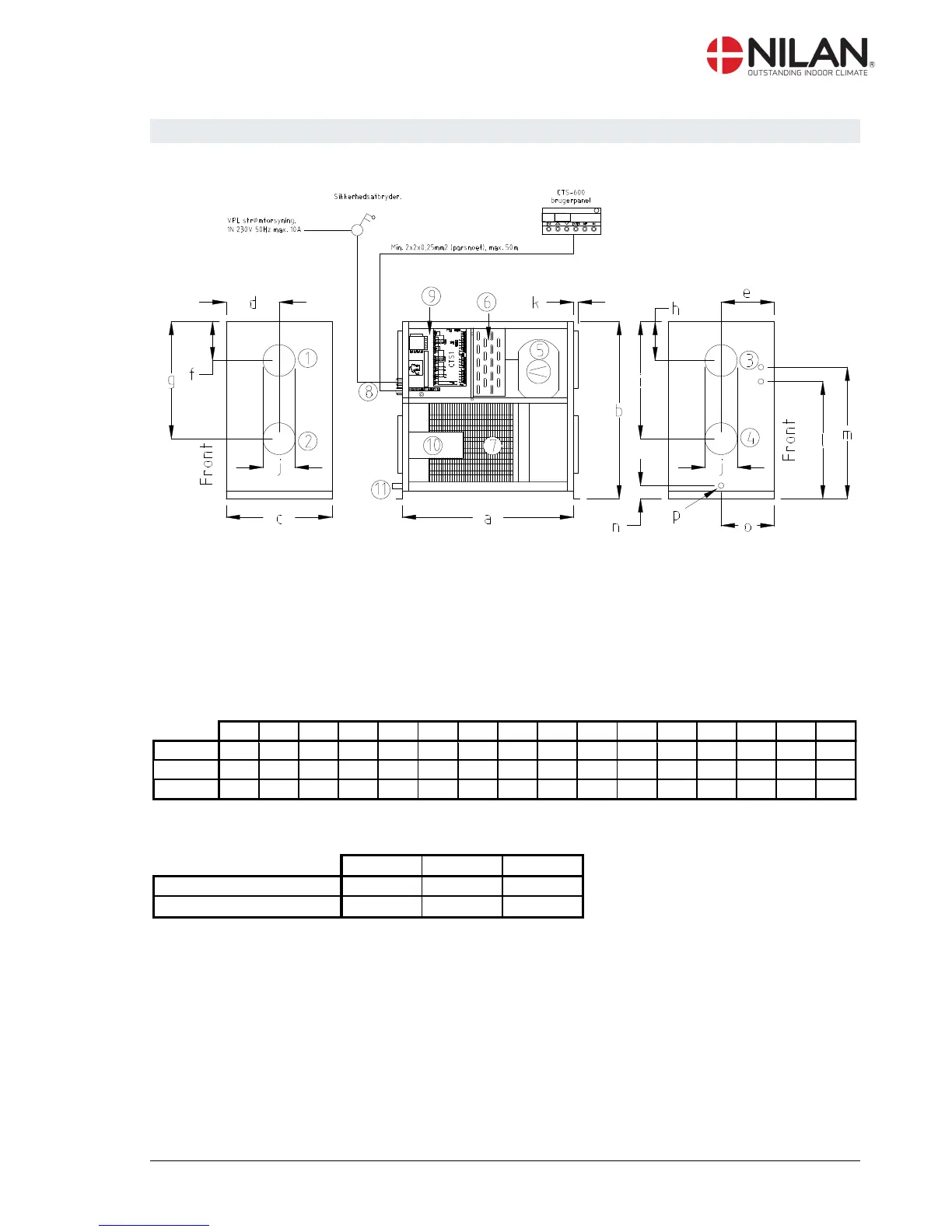

System dimensions
1. Fresh air intake. 5. Compressor 9. Inlet fan
2. Exhaust 6. Condensator (hidden) 10. Exhaust fan
3. Inlet 7. Evaporator 11. Condensation drain
4. Discharge 8. Electrical connections
Dimensions in mm:
a b c d e f g h i j k l m n o p
VPL 15 650 680 400 200 200 90 410 90 410 Ø160 38 450 510 50 200 Ø20
VPL 15T 550 600 635 50 95 190 140 140 160 160 160 160 - - - -
VPL 25 700 760 570 285 215 160 480 205 505 Ø250 44 505 540 25 85 Ø20
Weigt i Kg.:
VPL 15 VPL 15T VPL 25
Unit 54 50 65
Filterunit with Heat-pipe 30 - 40
Right view
Left view
Front view
