Nilfisk-Advance 7765 - Solution System

178Service Manual – Advance 7765 / Nilsk CR1500
Solution System
Functional Description
The solution system directs and regulates the solution ow from the solution tank to the scrub brushes.

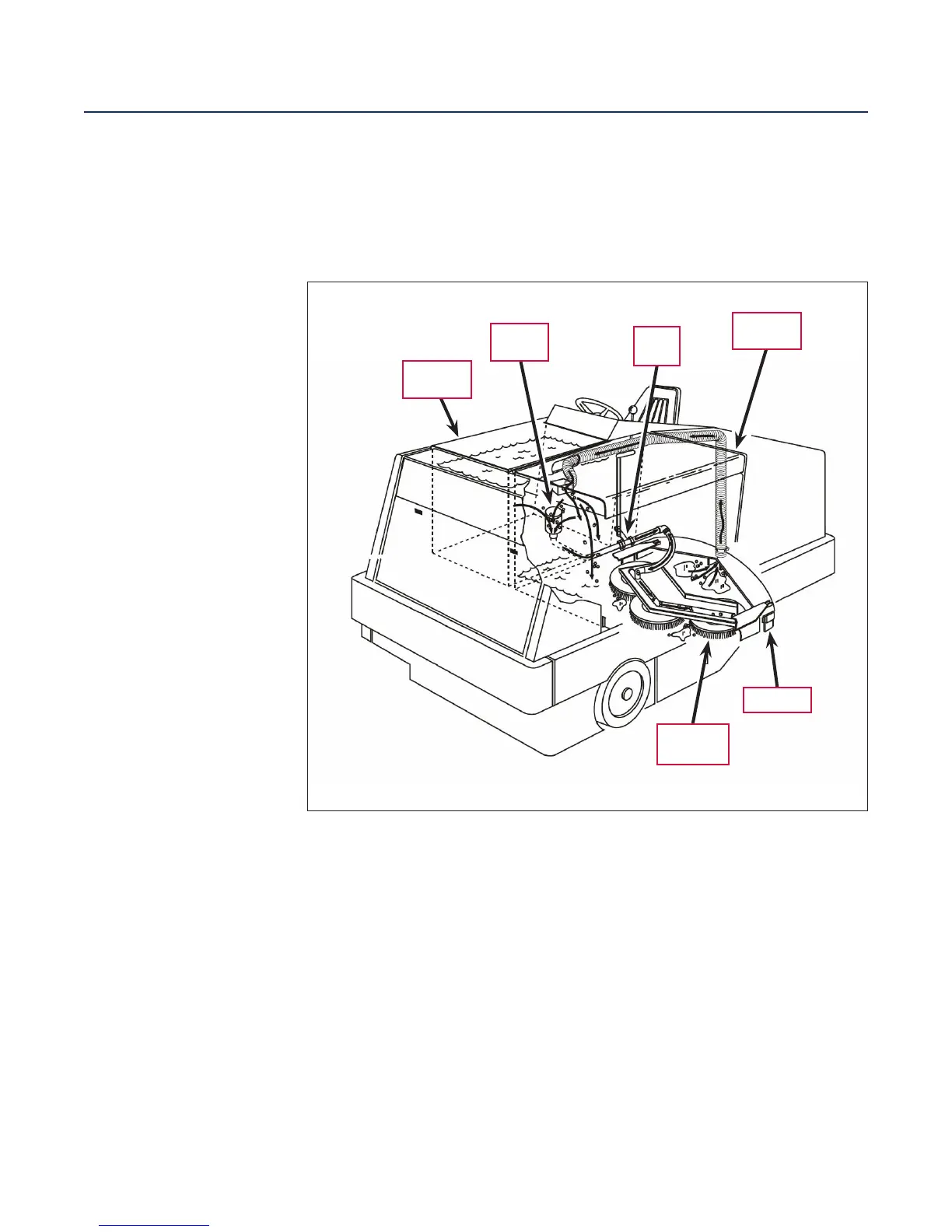

Overview – Standard Solution System
On machines not equipped
with the ESP/Recycle
option, the solution travels
from the Solution Tank
through the Inlet Strainer,
then to the regulating Ball
Valve. The Ball Valve is
manually controlled by the
solution control lever and
regulates the solution ow
to the three Scrub Brushes.
The Squeegee picks up
the wastewater from the
oor and directs it to the
Recovery Tank.
Solution
Tank
Ball
Valve
Inlet
Strainer
Recovery
Tank
Squeegee
Scrub
Brush (3)
