Nilfisk-Advance 7765 - Swing Squeegee Support

Squeegee System 196Service Manual – Advance 7765 / Nilsk CR1500
Swing Squeegee Support
The Squeegee Arms on the
swing squeegee support
form parallel linkages
that connect the Rear Pin
Weldments on the Squeegee
Support Weldment to
the Squeegee Supports.
These linkages allow the
squeegee to maintain the
correct angle to the oor as
the squeegee moves up and
down.
The Shafts with locking
Collars connect the
Squeegee Supports to
the Left and Right Pivot
Brackets fastened to the
machine frame. The
Squeegee Supports pivot
on the Shafts in the Left
and Right Pivot Brackets to
allow the squeegee to pivot
side-to-side.

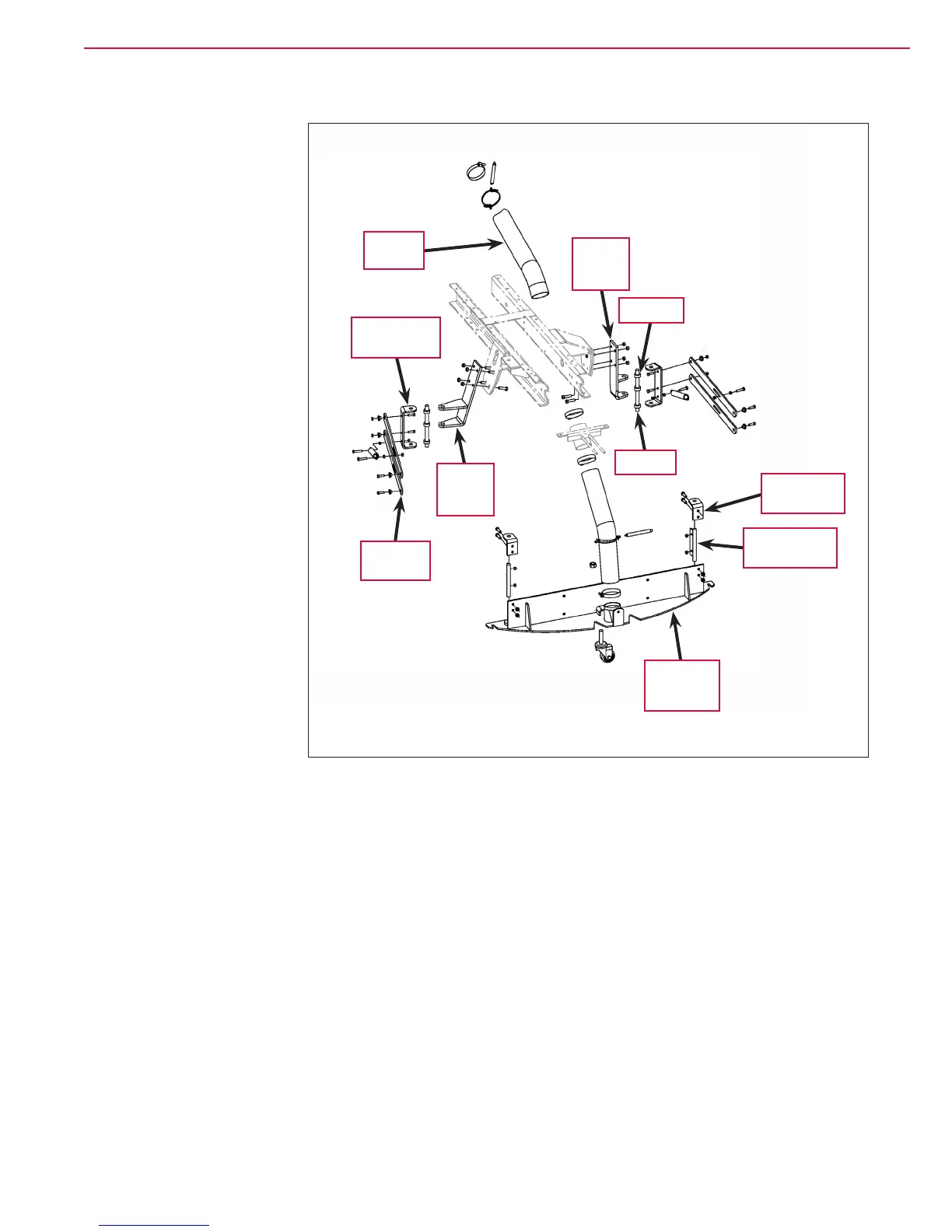

Squeegee
Arm (4)
Squeegee
Support (2)
Left
Pivot
Bracket
Right
Pivot
Bracket
Rear Pin
Weldment (2)
Angle
Bracket (2)
Squeegee
Support
Weldment
Vacuum
Hose
Collar (6)
Shaft (2)
