Solution System 182Service Manual – Advance 7765 / Nilsk CR1500
Detergent and Solution Tanks
The Detergent Tank is mounted
in the Solution Tank and supplies
detergent to the Detergent Pump.
The Detergent Low Switch in the
Detergent Tank will light the LOW
DETERGENT warning light on the
instrument panel
when the detergent
level in the Detergent
Tank is low.
The Solution High Switch in the
Solution Tank will light the HIGH
SOLUTION warning light on the
instrument panel
when the water level
in the Solution Tank
is too high.
Detergent Pump
The Detergent Pump pumps
detergent from the Detergent Tank
into the solution line downstream
of the ball valve. The Detergent
Flow knob on the instrument
panel controls the detergent ow
rate.

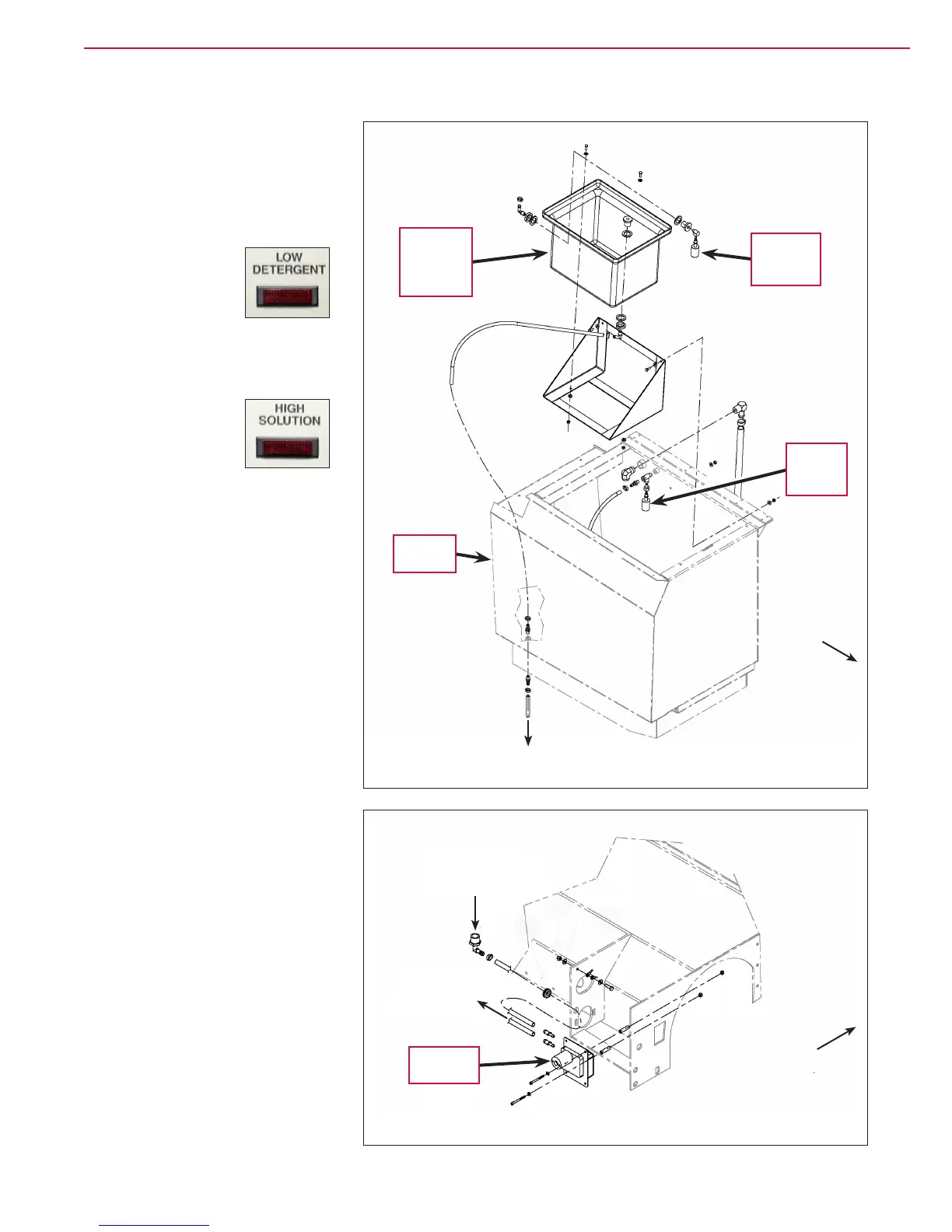

Front
Detergent
Low
Switch
Detergent
Tank
(cover not
shown)
Solution
Tank
To Detergent Pump
Solution
High
Switch
Front
To Solution
Line
From
Detergent
Tank
Detergent
Pump
To Next Page
