AFTER USE
1 Raise the Pad Drive Deck (1), then drive the machine to a service area.
2 Turn the Master Key Switch (A) OFF (O) and remove the key.
3 Remove the burnishing pad, rinse the pad with warm water and hang it up to dry. NOTE: Allow pad to dry completely before using again.
4 Check the Dust Collection Bag (5) if over half full or damaged remove and replace with a new bag.
5 Check the maintenance schedule and perform any required maintenance.
6 Wipe the machine with a damp cloth, then store the machine in a clean, dry place.
MAINTENANCE SCHEDULE
MAINTENANCE ITEM Daily Weekly Monthly Yearly
Charge Batteries X
Check/Clean/Replace Burnishing Pad X
Check/Replace Dust Collection Bag X
Check Battery Water Level(s) X
Check/Replace Pad Shroud Skirt X
Steering Chain Tension X
Lubrication X
Check Carbon Brush Wear On Pad/Wheel Drive/ Actuator Motors X
NOTE: Refer to the Service Manual for more detail on all maintenance items mentioned in this manual.
LUBRICATING THE MACHINE
Locations requiring periodic oiling are:
Qty 1 - Steering Wheel Shaft Universal Joint (oil hole or port)
STEERING CHAIN TENSION
Inspect once a month and make adjustments if needed (refer to the service manual for detailed instructions).
ELECTROMAGNETIC BRAKE
FIGURE 4

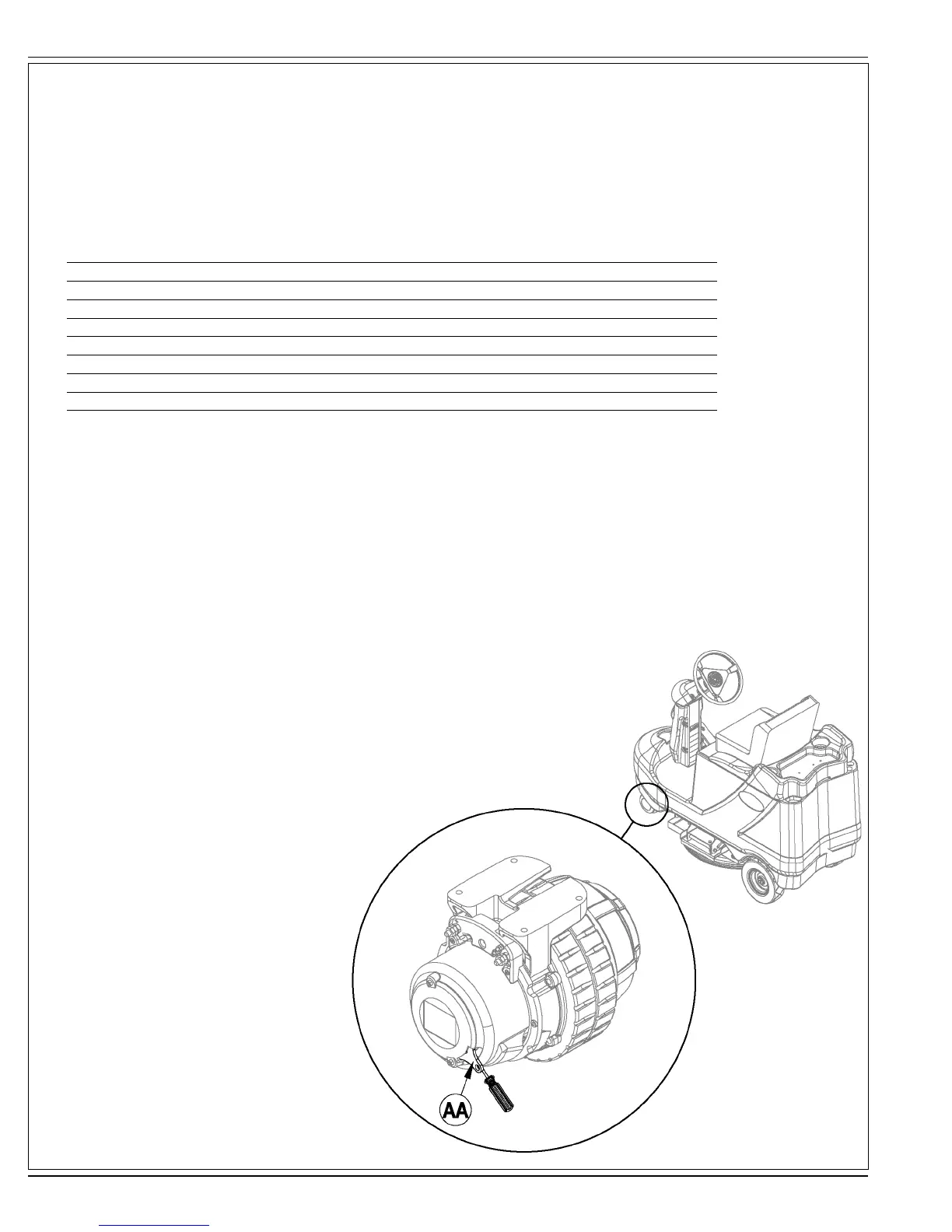

See Figure 4. The Drive / Steer Wheel Assembly (14) has a built in electromagnetic brake that
is engaged whenever the Master Key Switch (A) is OFF or the FWD / REV Drive Pedal (8) is in
the neutral position. This brake can be manually over ridden if necessary by inserting a medium
to large screwdriver behind the Yoke (AA) as shown. This should only be done in the event you
need to push or pull the unit.
