Nilfisk-Advance Convertamatic 24 - Control Panel; Control Panel Overview

A-8 / ENGLISH
A-8 - FORM NO. - 56041596 - Convertamatic
™
24, 26, 28, 32 / BA 625, 725, 825
Ø.4
!
!
A
B
C
E
F
G
H
I
D
D1
D2
D3
D4 D5
D6
D7
D8
D

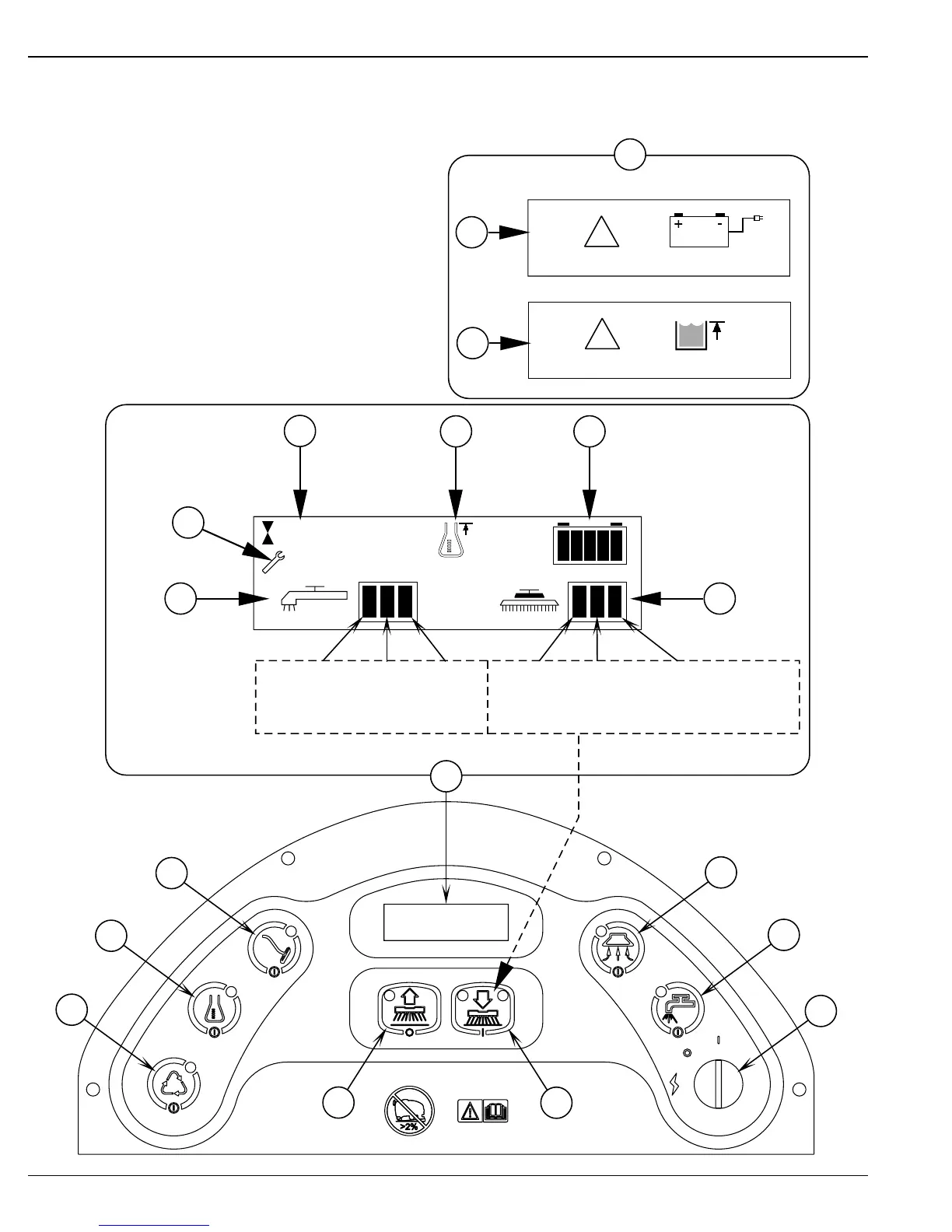

CONTROL PANEL
A Key Switch (Main Power)
B Solution Switch
C Vacuum Switch
D Display Panel
D1 Solution Flow Indicator
D2 Fault Indicator
D3 Hour Meter
D4 AXP/EDS Indicator
D5 Battery Indicator
D6 Scrub Pressure Indicator
D7 Recovery Tank FULL Indicator
D8 Battery Low Indicator
E Wand Switch (Dealer Installed Option)
F Detergent System (AXP/EDS models only)
G Extended Scrub System (Dealer Installed Option)
H Scrub OFF
I Scrub ON
revised 1/07
Regular Heavy Extreme Regular Heavy Extreme
Scrub Scrub Scrub Scrub Scrub Scrub
(press once) (press twice) (hold 5 sec.)
