RECOVERY TANK AND COVER CLEANING
1. Lift the tanks container (13) from the machine body using
the handle (15).
2. Remove the cover (A, Fig. 11) and clean it with hot water.
3. Remove the suction grid (B) along with the oat and clean
them thoroughly.
4. If necessary, remove the body (C), then clean with care
and reinstall.
5. Check the recovery tank cover gasket (D) for integrity.
NOTE
The gasket (D) creates the vacuum in the tank that is
necessary to vacuum up the recovery water.
If necessary, replace the gasket (D) by removing it from its
housing on the cover. When assembling the new gasket,
install the joint (E) in the area shown in the gure.
6. Check the air duct gasket (C) conditions. If necessary,
replace the gasket.
7. Clean the tank compartment (G) with water and detergent,
then rinse carefully.
8. Check that the seating surface (H) of the gasket (D) is
clean and adequate for the gasket itself.
9. Reassemble the components.
10. If necessary wash the solution tank with clean water.
A
G
H
D
E
C
F
B

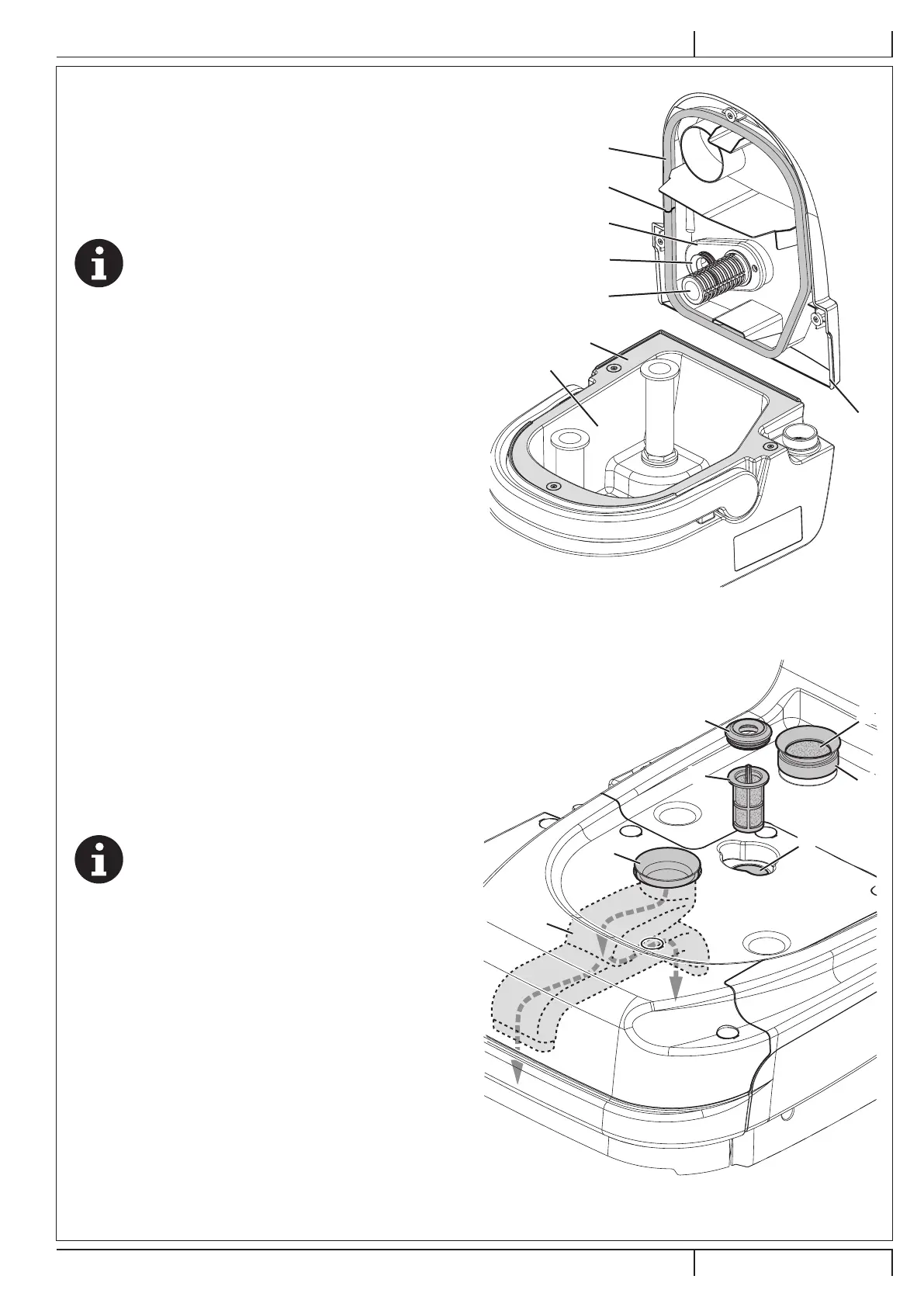

Figure 11
P100942
CLEANING OF THE SOLUTION FILTER, AIR
FILTER, GASKETS AND RECOVERY WATER
DUCT
1. Remove the tanks container (13) from the machine body
using the handle (15).
2. Remove the rubber gasket (A, Fig. 12), then remove the
lter strainer (B).
3. Clean them and reinstall in the housing (C).
4. Remove the air lter (D) and clean it.
5. Ret the lter in the housing of the gasket (E).
NOTE
The gaskets (E) and (F) create vacuum in the system
that is necessary for vacuuming the recovery water.
6. Check and clean the gasket (E) of the vacuum system
motor.
7. Check and clean the recovery water duct gasket (F).
8. Rinse the inside of the duct (G) with water.
F
A
B
C
D
E
G
Figure 12
P100943
