ENGLISH INSTRUCTIONS FOR USE
8 SC250, Scrubtec 334 - 9100001614
ACCESSORIES/OPTIONS
In addition to the standard components, the machine can be equipped with the following accessories/options, according to the
machine specic use:
– Cylindrical brush SOFT NYLON BLACK
– Cylindrical brush MEDIUM NYLON WHITE
– Cylindrical brush HARD GRIT 120 GREY
– Cylindrical brush MICROFIBRE
– Battery + battery charger kit
For further information concerning the optional accessories, contact an authorised Retailer.

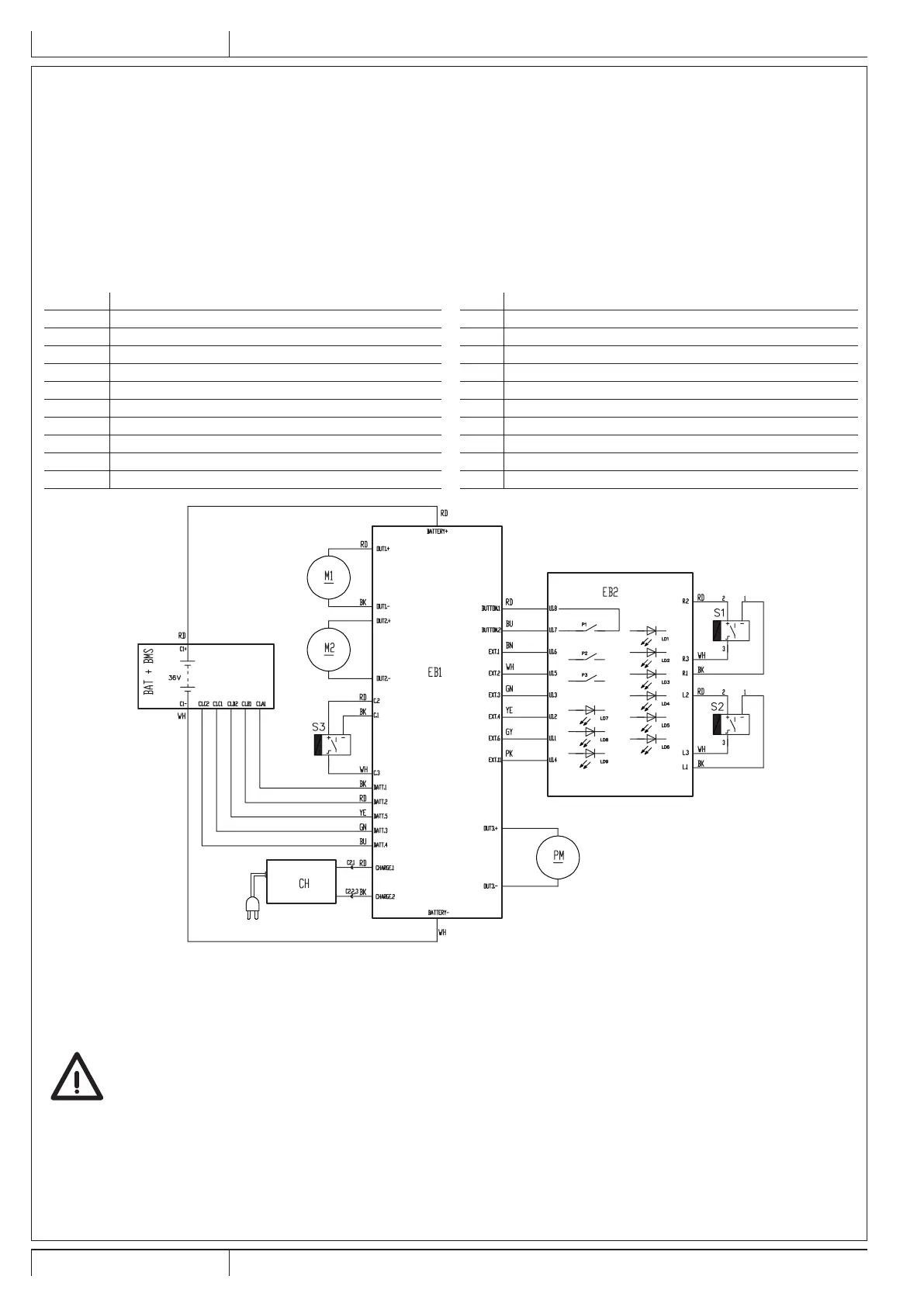

WIRING DIAGRAM
Key
BAT+BMS Lithium ion battery + Control system
C1 Battery connector
CH Battery charger
EB1 Function electronic board
EB2 Display electronic board
M1 Brush motor
M2 Vacuum system motor
PM Solution pump
S1 Grip handle sensor (right)
S2 Grip handle sensor (left)
S3 Solution presence sensor
Colour codes
BK Black
BU Blue
BN Brown
GN Green
GY Grey
OG Orange
PK Pink
RD Red
VT Violet
WH White
YE Yellow
P100931
USE/OPERATION
CHECKING/SETTING UP A NEW MACHINE
WARNING!
The electric components of the machine can be seriously damaged if the battery is either improperly installed.
Check the battery for damage before installation.
1. Install the battery (27), the cylindrical brush (18) and the squeegee bars (20), as shown in the instruction sheet inside the
machine packaging.
2. When rst using the machine, perform a full charging cycle (see the procedure in the Maintenance chapter).
