MAIN BROOM
Several different main brooms are available for this machine. Contact your Nilf sk dealer if you need help selecting the best broom for the surface
and litter that you will be sweeping. Note: Reference broom maintenance for installation steps.
SCRUB BRUSHES
1 Make sure the Key Switch (B) is OFF (O).
2 See Figure 4. Raise the side skirt assemblies for easier access. NOTE: Lift straight up on the middle of the side skirt assembly and engage
the catch (AE) to keep the skirt assembly raised while installing the brushes.
3 Pull Lever (AF) outward to disengage the gas spring. This allows the right scrub brush assembly to be swung towards the rear of the
machine and provide easier access to the middle scrub brush.
4 To mount the brushes (or pad holders) align the lugs on the brush with the holes on the mounting plate and turn to lock in place according to
rotation directions shown in Figure 5.

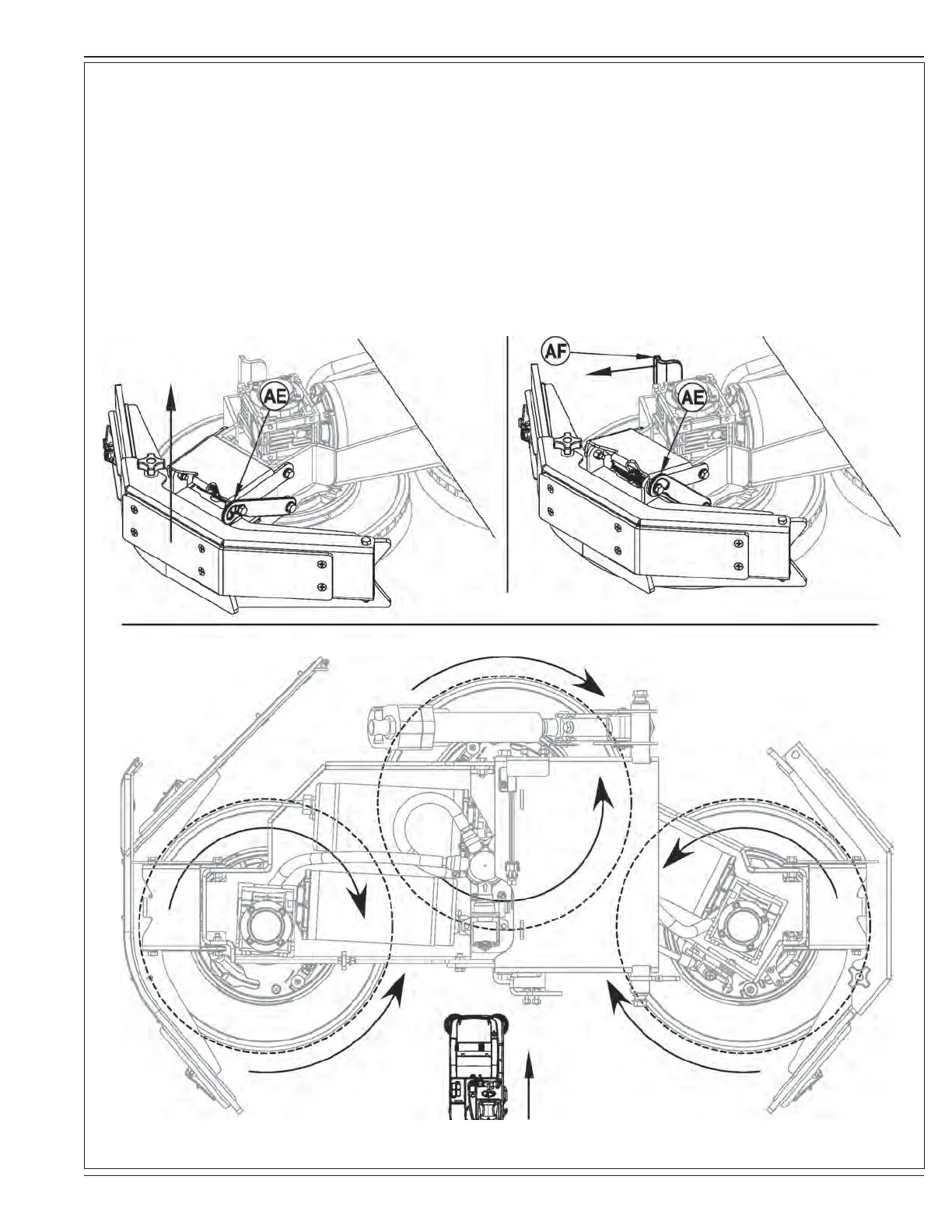

FIGURE 4
Down Position
Up Position
Outside arrows represent brush installation rotation direction.
Inside arrows represent brush motor rotation while scrubbing.
FIGURE 5
To Next Page
