Nilfisk-Advance SC4000 User Manual

A - 16 Advance SC4000 - 56091272 9/2022
INSTRUCTIONS FOR USEA - ENGLISH
LEAD-ACID BATTERIES - CONTINUED
CAUTION!
Electrical components in this machine can be severely damaged if the batteries are not installed and connected properly.
Batteries should be installed by Nilsk or by a qualied electrician.
1 Remove the batteries from their shipping crate and carefully inspect them for cracks or other damage. If damage is evident, contact the
carrier that delivered them or the battery manufacturer to le a damage claim.
2 Turn the Power Switch (H) OFF and remove the Magnetic SmartKey (39).
3 Rotate the Battery Compartment Latch (20) to unlock then tip the seat forward (the gas spring holds the seat open).
4 For additional access the recovery tank can be removed from the machine. NOTE: Disconnect the recovery hose, vacuum motor wiring and
warning beacon wiring then lift the tank straight up and off the machine, using two people or an overhead hoist.
5 Your machine comes from the factory with enough battery cables to install three 12 volt batteries. Using at least (2) people and an
appropriate lifting strap, carefully lift the batteries into the battery compartment and arrange them exactly as shown in FIGURE 2-1. Secure
the batteries as close to the rear and right side of the machine as possible. Use battery spacer to keep batteries from moving. If installing a
mono-block battery use an overhead hoist.
6 Install the battery cables as shown. Position the cables so the battery caps can be easily removed for battery service.
IMPORTANT!: The protective caps supplied with the batteries need to be left on or re-used to completely cover the portion of the
battery terminals that are not being protected by the battery cable terminal cover boots supplied with the battery cables. This also
applies to the in-line fuse holder boot.
7 Carefully tighten the nut in each battery terminal until the terminal will not turn. Do not over-tighten the terminals, or they will be very difcult
to remove for future service.
8 Coat the terminals with spray-on battery terminal coating (available at most auto parts stores).
9 Put one of the black rubber boots over each of the terminals and connect the Machine Battery Connector (19).
10 Make sure the fuse holder boot is covering the fuse holder, the cable end of the Machine Battery Connector (19), and as much of the battery
terminal as possible. Leave the protective caps supplied with the batteries in place or re-use to cover the terminal areas not protected by the
terminal cover boots.
When changing batteries or the charger, please contact your local authorized service center for correct battery, charger and machine
settings to prevent battery damage.

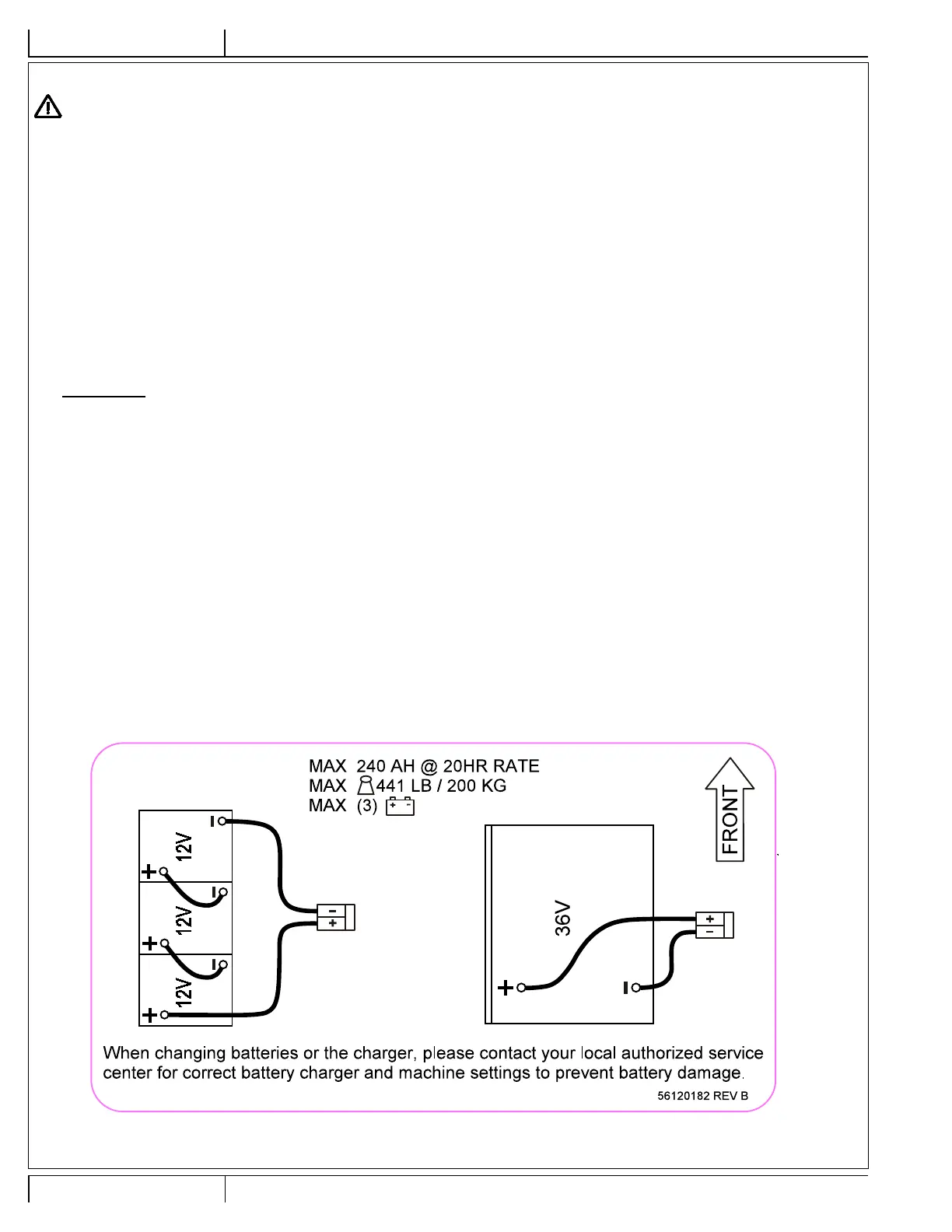

FIGURE 2-1
-NOTES-
6
ADHESIVE LINER TO B E BACKSPLIT VERTICALLY
5
ALL DIMENSIONS ARE CONTROLLED BY PRODUCTI ON ARTWORK
4
NON PRINTING MAGENTA INDICATES CUT OUT
3
COLOR: 56E00 158-56975034 (BLACK)
2
COLOR: 56E00 158-56975004 (WHITE)
1) MATERIAL: 5 6E05002-03 OR ORACAL 1640.
5 FULL SCA LE PRODUCTION ARTWORK
2 3
6
6.5 ±0.03
3.50 ±0.0 3
4 X R 0.25 ± 0.03
4
B
REV
DWG NO
TITLE
C
SHEETS: 1 OF 1
SCALE: 1.000
FUO:
NOTES UNLESS
OTHERWISE SPECIFIED
1. ALL DIMENSIONS IN INCH, [ ] IN MM.
2. DO NOT SCALE DRAWING.
3. ALL DIMENSIONS APPLY AFTER
PLATING AND HEAT T RE ATING, BUT
BEFORE PAINTI NG.
4. REMOVE ALL BURRS AND
SHARP EDGES.
5. SEE 56E00713 FOR TORQUE INFO.
6. APPEARANCE AND FINSH SHALL
COMPLY WITH NILFISK OPERAT IONAL
PROCEEDURE 1-72005 0.
7. WELD SYMBOLS PER AWS A2.4.
DRAWING STATUS: RELEASED
ASSY:
SIZE
CC: NO
NILFISK INC.
BROOKLYN PARK, MN 55445
Compliance with: NA CS 2020
PRJ ENG
18-OCT-2021DRAWN
CANVAS
MATERIAL: SEE NOTES
FINISH: SEE NOTES
56120182
B
56120E 12-1
SC4000
MLB
DECAL-BATTERY
3D Model: MODEL NAME Drawing: SAMPLE-DECAL
SHEET
DWG NO
REVISIONS
APPDDFTMDATEECOREV
1
CPGMLB18-OCT-202 1A-15247
A
RELEASE
56120182
F
F
12
3
4
5
6
CONFIDENTIAL
THIS DRAWING AND T HE DESIGN REPRESENTED HEREON IS THE PROPERTY OF NILFISK INC.,
BROOKLYN PARK , MINNESOTA AND IT HAS BEEN ISSUED WITH THE UNDERSTANDING THAT IT WILL NOT BE REPRO-
DUCED NOR COPIED NOR USED FOR ANY PURPOSE OTHER THAN FOR WHICH I T WAS ISSUED AND RECIPIENT
AGREES TO RETURN IT UPON REQUEST.
A
B
C
D
E
B
C
D
E
12
3
4
5
6
CPG
CPGMLB15-NOV-2021A-15452
B
UPDATE: ARTWORK
