Construction
Neptune 4_EN_Ver.1.0_04/06
Construction
The external design of the Neptune 4 hot-water
high-pressure cleaner is identical to the Neptune 3
line of products. As far as sensors, control,
functionality and electronics are concerned, there
are no differences to the Neptune 3 series as well.
There are only two differences compared to
Neptune 3:
The Neptune 4 series has the NP5 hp-pump (1)
installed (like the Neptune 5) and the machine is
equipped with an additional hydraulic accumulator
(2)(see also STI MPW-040).
For further details about the construction of the
machine, refer to the Neptune 3 and Neptune 5 / 7
Service Manuals (chapter C resp. chapter 3).

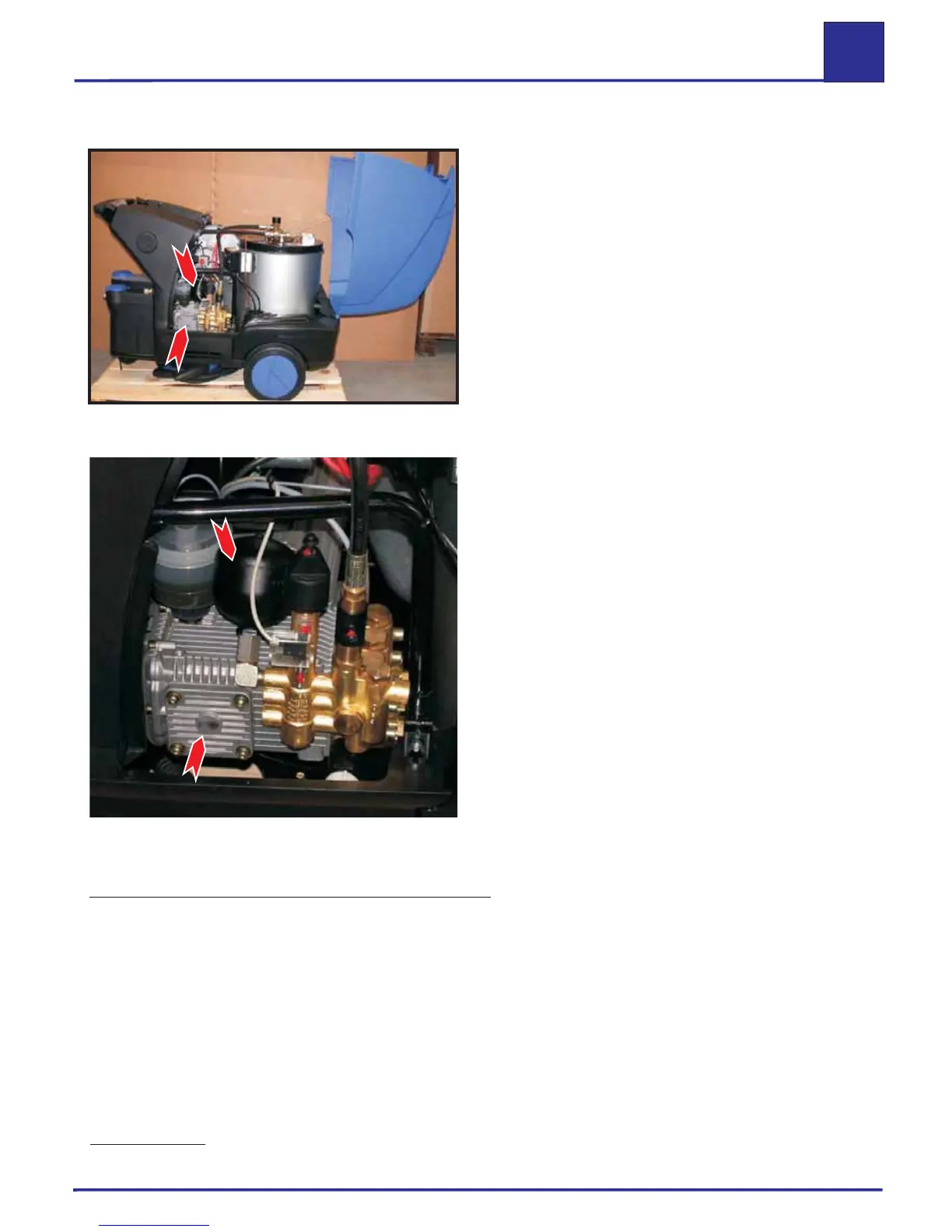

Fig. C.1: Neptune 4
Fig. C.2: NP5 pump & Control Safety Block with hydraulic
accumulator
The Neptune 4 HPC is available in following versions:
Neptune 4-25:
Neptune 4-28:
1~
1
The machine comes as standard- (with storage tray for accessories, tools, etc.) or X-model (with hose
reel instead of the storage tray). Upgrading with a hose reel is possible.
~
1~
3~
3~
3~
Neptune 4-30:
Neptune 4-42:
Neptune 4-49:
Neptune 4-54:
Fig. C.1 & C.2:
1.) NP5 hp-pump 2.) Hydraulic accumulator
