Nilfisk-ALTO SCRUBTEC 343B User Manual

10 SCRUBTEC 343B 909 6313 000(2)2007-06 A
ENGLISH USER MANUAL

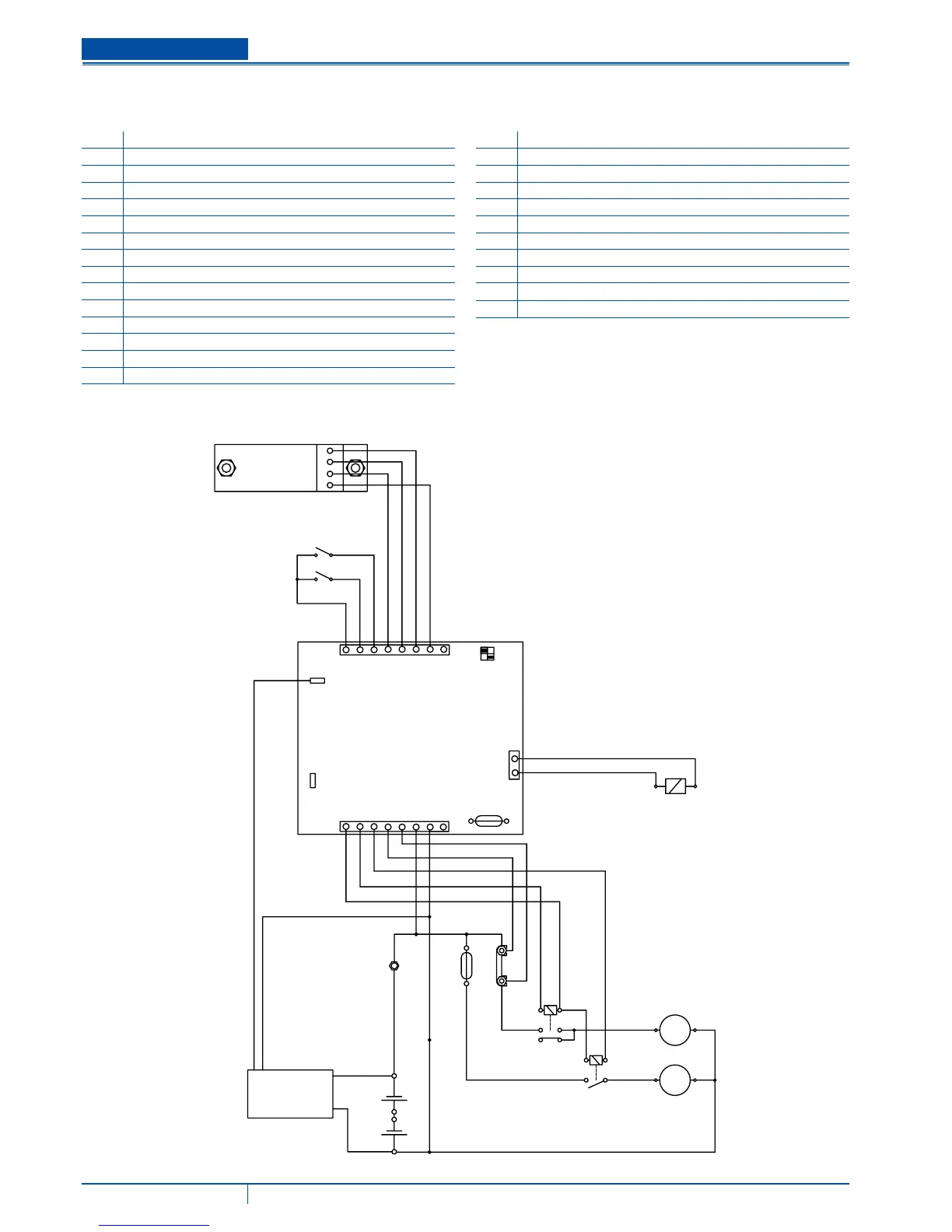

WIRING DIAGRAM
Key
CH1 Battery charger (optional)
C1 Battery charger connector (optional)
EB1 Electronic board (CF BA430)
EB2 Electronic board led (CF BALED)
ES1 Brush/pad-holder switch
ES2 Vacuum system switch
EV1 Water solenoid valve
F1 Brush fuse (40 A)
F2 Vacuum system fuse (40 A)
F3 Solenoid valve and electronic board fuse (5 A)
IS1 Negative insulator
M1 Brush/pad-holder motor
M2 Vacuum system motor
SW1 Brush/pad-holder switch
SW2 Vacuum system switch
Colour codes
BK Black
BU Blue
BN Brown
GN Green
GY Grey
OG Orange
PK Pink
RD Red
VT Violet
WH White
YE Yellow
F3
CH1
BK
RD
BN
V-
IS1
F2
YE
CFBA430
BKBU BN RD
BK
EB1
PKWHOGBNBU GY
EB2
SW1
SW2
RD
ES1
BU
ES2
F1
YE
BN
M2
BU
M1
RD
RD
OR WH
EV1
Pb/Gel
SWITCH
RD
GY
BK
RD
RD
BK
909 5604 000
Rev. A
+
-
+
-
CT
1
BL
S-
BT VT
S+ V-
BL
V+
8
CH
1
SC LRSVSB LY LG
KY
LC
8
Ch
NO Ch
W-
W+
Gel
Pb
S310228
