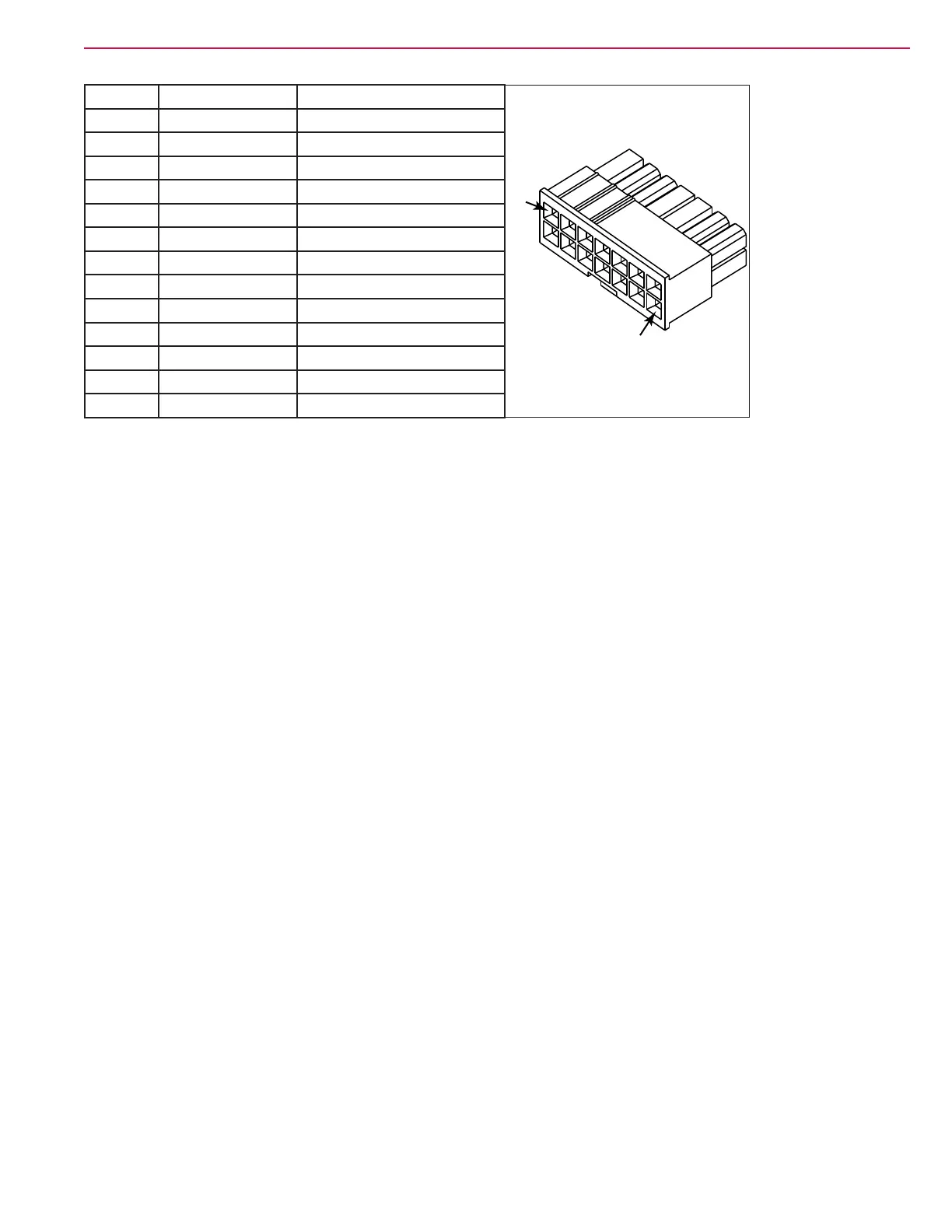

Electrical System 46Service Manual – Focus II / Scrubtec R6 Rider Autoscrubber

J3-1 Power BRN/VIO, W181

J3-2 Ground BLK, W212

J3-3 Reverse_out RED/BRN, W166

J3-4 Seat Switch BRN, W178

J3-5 Reverse Signal BLU/BLK, W066

J3-6 Fwd/Rev Signal RED/WHT, W058

J3-7 Drive Status ORN/BLU, W068

J3-8 Power BRN/VIO, W182

J3-9 Horn- GRN/BLK, W049

J3-10 Horn+ ORN/RED, W048

J3-11 Solution Solenoid1 VIO/BLK, W047

J3-12 Vac Contactor GRY/BLK, W003

J3-13 Brush Contactor WHT/RED, W010

J3-14 Key Switch GRY/BLK, W183
