Squeegee System 75Service Manual – Focus II / Scrubtec R6 Rider Autoscrubber

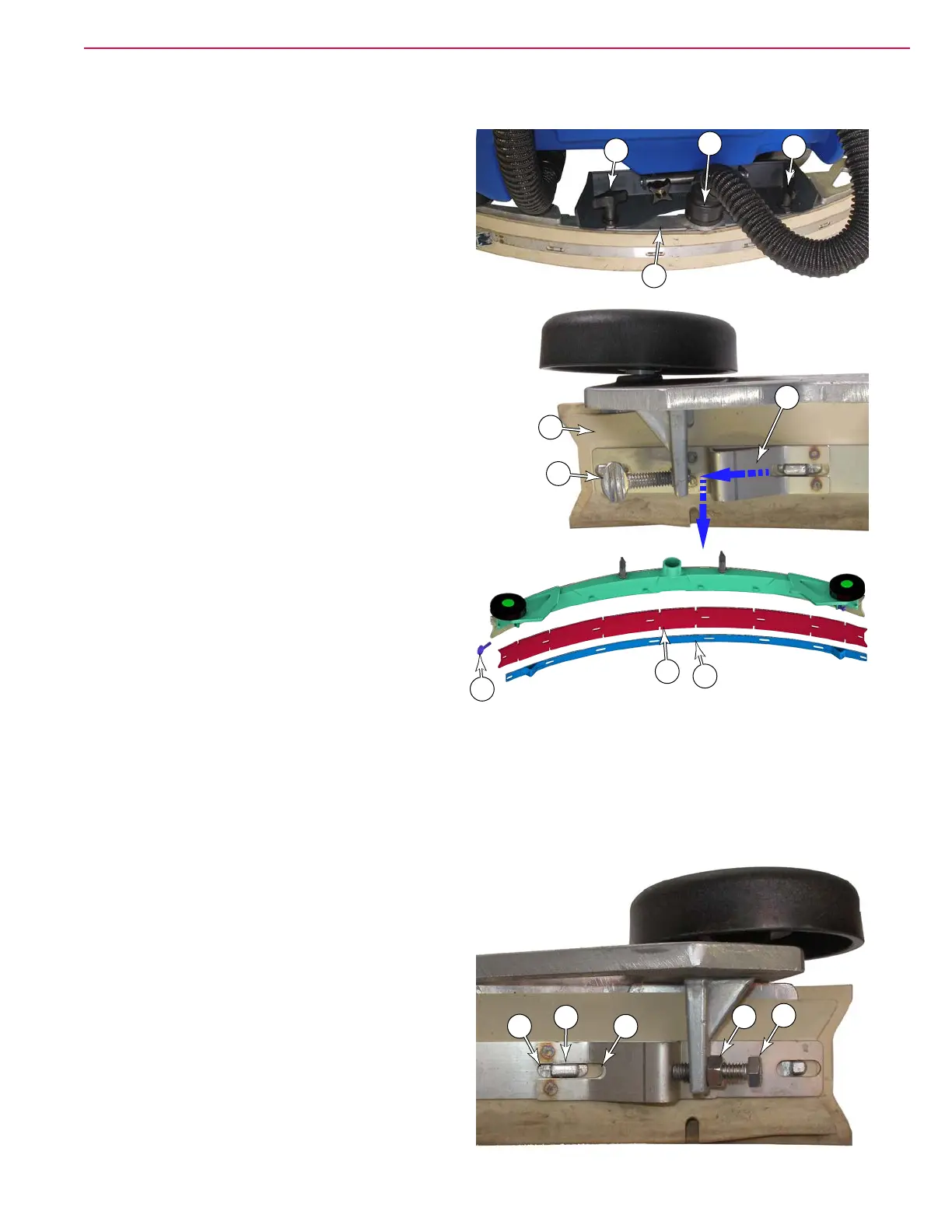

Front Squeegee Blade Reversal or Replacement
1. Remove the suction hose (2) from the squeegee
body (1).
2. Loosen the two thumbscrews (3) that secure the
squeegee body (1) to the machine, and remove the
squeegee body.
3. Loosen the clamping thumbscrew (6) that
compresses the retaining strap (7) against the
squeegee blade (8) and squeegee body (1).
Note: The thumbscrew (6) may be on either the left or right
side of the squeegee body.
4. Slide the retaining strap (7) toward the thumbscrew (6),
lift it off the tabs of the squeegee body (1), and slide it
down to free it from the squeegee body.
5. Lift the front squeegee blade (8) off the squeegee body
(1).
• The squeegee can be rotated and/or ipped 3 times to
expose a new edge (4 edges total) to the lower-front. If all
4 edges are worn, replace the squeegee blade (5)
with a new one.
6. To replace the blade (8), align the slots in the
blade with the tabs (1C) on the squeegee body (1).
7. Reinstall the retaining strap (7) in the reverse process from removing it.
8. Tighten the thumbscrew (6) to press the retainer against the squeegee blade.
9. Inspect the adjustment clamping screw (9) to ensure it is properly adjusted.
• If the screw is adjusted too far in, the tabs
(1C) will be too close to the slots at (7A)
and make it difcult to install of remove the
retaining strap.
• If the screw is adjusted too far out, the tabs
(1C) will be too close to the other end of the
slot at (7B) and the clamping thumbscrew (6)
will not properly hold the retaining strap.
• When properly adjusted, the tab (1C) should
be close to (7B) but not touching, when the
thumbscrew (6) is tightened.
• Make sure the jam nut (10) is tightened
against the post on the squeegee body.
2
3
3
1
6
7
8
7
8
6
9
10
7A
1C
7B
