Wheel System, Traction 87Service Manual – Focus II / Scrubtec R6 Rider Autoscrubber
Drive Motor, Brushes, and Electromechanical Brake
Removing the drive motor requires the drive wheel
assembly to be removed from the machine so it can be
stood on-end, to prevent the gear oil from leaking out
of the gear box.
Replacing the electromechanical brake requires
removing the motor because the wire passes through
the motor housing ange. However, the brake disks
can be inspected without removing the drive assembly
from the machine.
1. Remove the Drive Wheel Assembly described on
page 84.

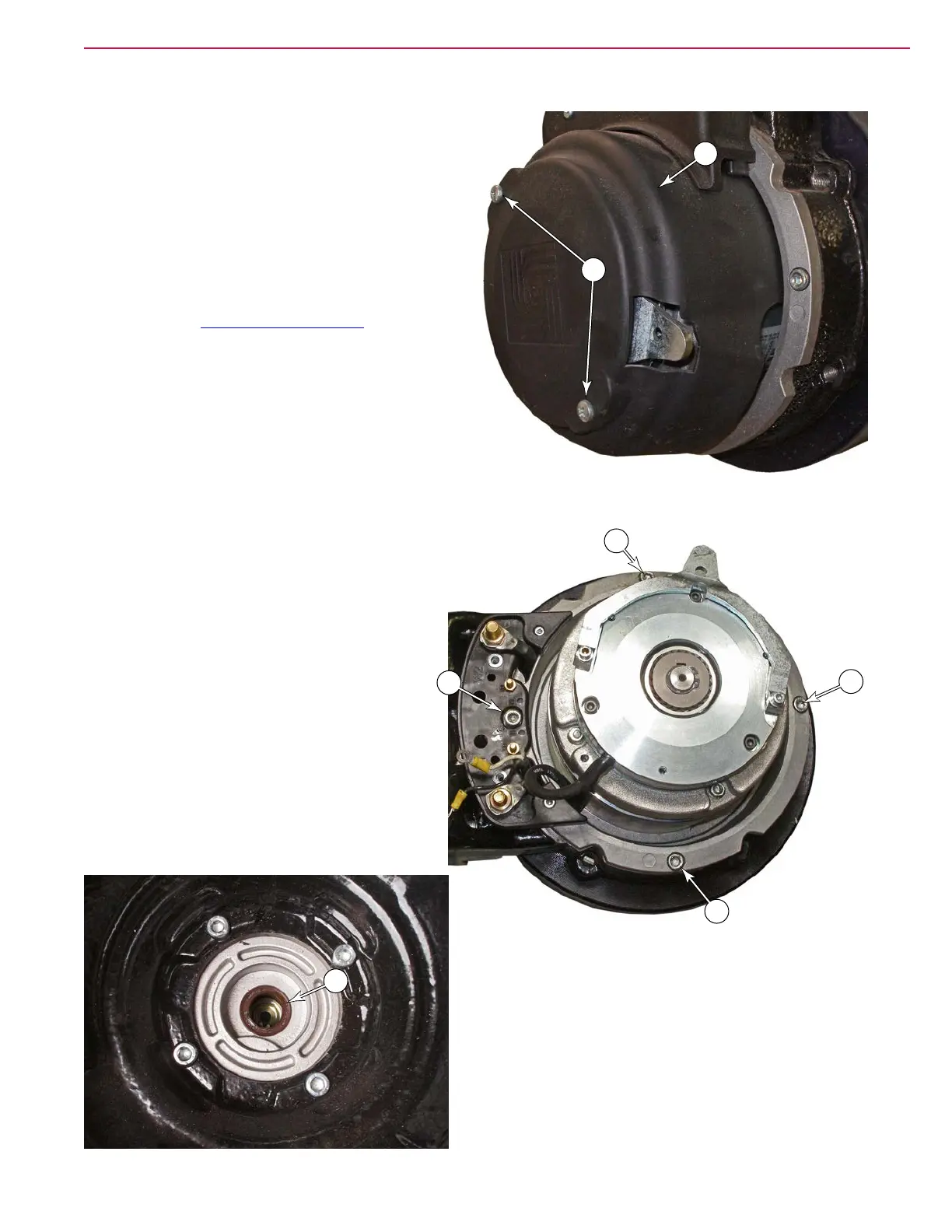

2. Remove the two screws (29) that secure the motor
cover (30), and remove the cover.
3. Using a 5mm hex key, remove the four
screws (31) that secure the motor to the
drive wheel assembly.
4. Make sure the motor is facing up to
prevent oil from dripping out of the
gearbox, and lift the motor out of the drive
assembly.
5. Place a clean rag over the opening to
the gearbox (32) to prevent debris from
entering the gearbox while the motor is
removed.
29
30
31
31
31
31
32
