Scrub System: Disc, Cylindrical, & Boost 66Service Manual – Focus II / Scrubtec R6 Rider Autoscrubber
Specifications
Parameter Range
Brush Contactor Coil Resistance 52.0 Ω
No-Load Motor Amperage • Boost Deck = 9.5-10.4 A
• Cylindrical Deck = 7.5 A (total)
• 2 Disk Deck = 15.5 A (total)
• 3 Disk Deck = 25.0 A (total)
Lift Actuator Amperage • Raising = 1.4 - 2.8 A
• Lowering = 0.8 - 1.3 A
Scrub Pressure & Amperage Specifications Chart
Scrub Mode
Default Pressure
Indicator
Deck Type
Disc 28" Cyl. 28" Disc 34" Disk 40"
Regular Scrub 1 LED 24 AMPS 20 AMPS 24 AMPS 35 AMPS
Heavy Scrub 2 LED 28 AMPS 27 AMPS 28 AMPS 45 AMPS
Extreme Scrub 3 LED 35 AMPS 34 AMPS 35 AMPS 55 AMPS
Special Tools

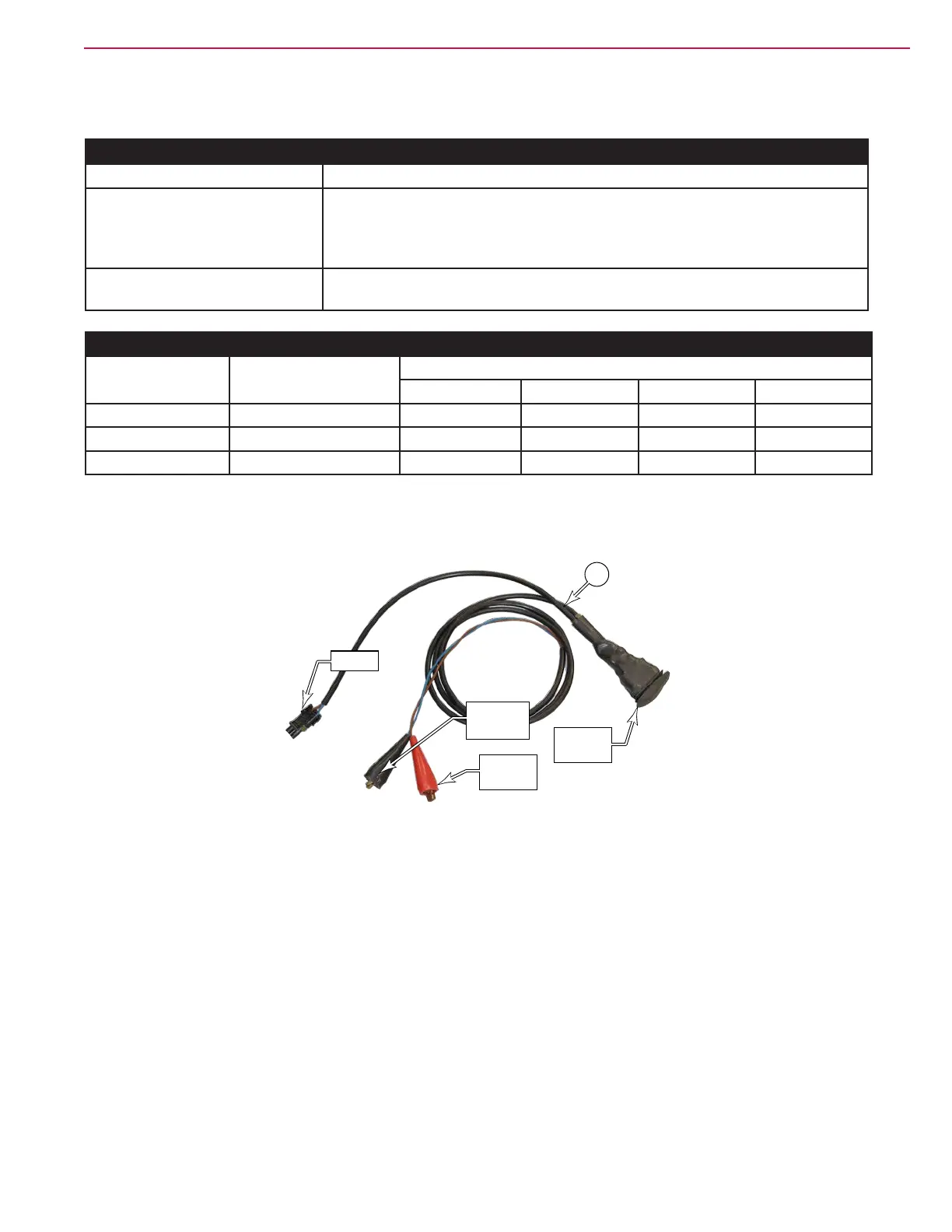

The Actuator Power Cord Adapter (1) (PN 56407502) is used to manually control the brush lift actuator.
99
Battery
Positive
Motor
Battery
Negative
For/Rev
Switch
