INSTALLATION
Some models do not have a lower hinge
mounted on both sides. In this case the
existing hinges must be moved to the
required side. The hinge is attached
with two screws and threaded washers
as illustrated.
Note that the washer is not attached to
the cabinet frame.
B NO LOWER HINGE ON THE OPPOSITE SIDE

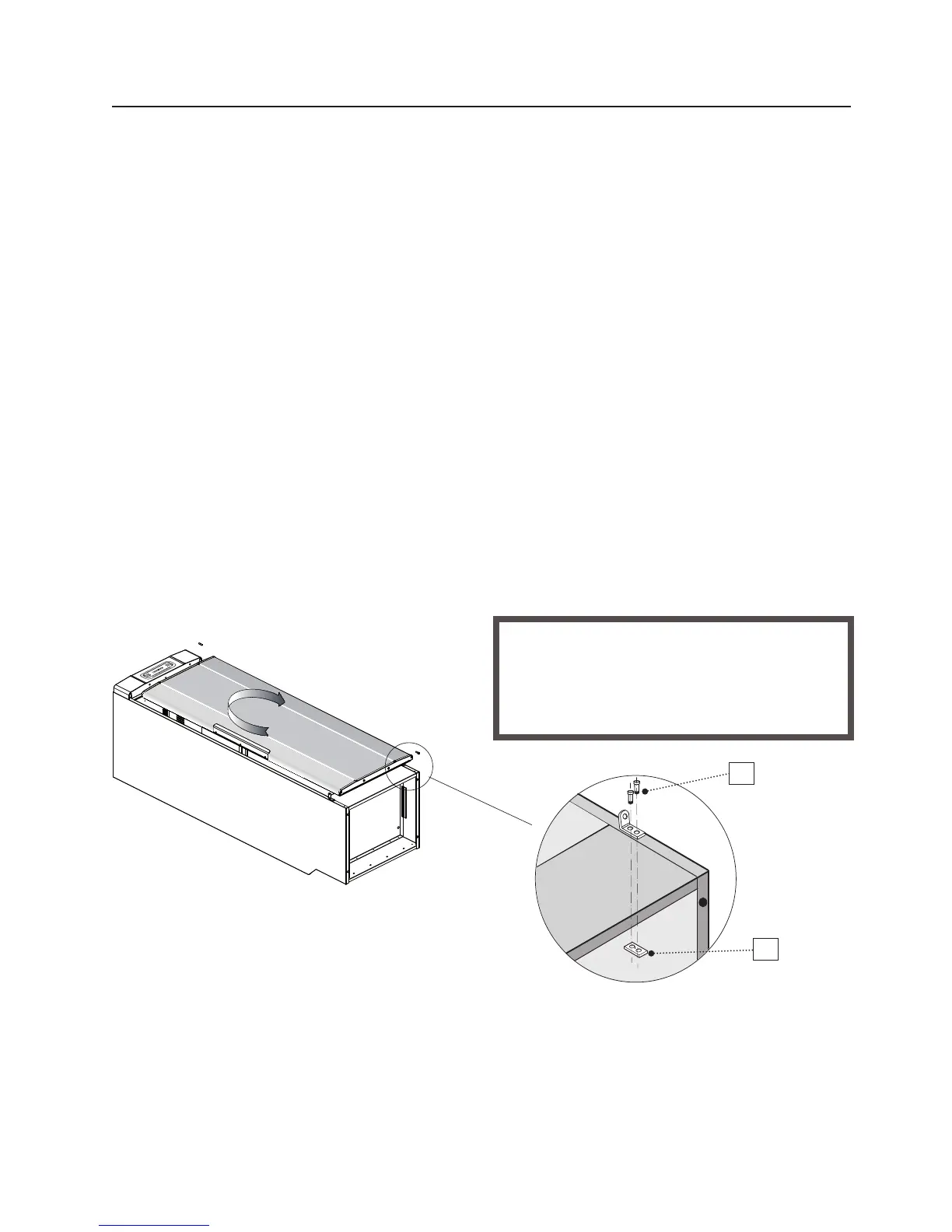

Rehanging the door when the appli-
ance is resting on its back
1 Undo the hinge screws (3).
2 Screw the threaded washer back on
(4). On the opposite side there is a th-
readed washer already pre-mounted.
3 Mount the hinge in its new position.
4 Undo the hinge pin from the top
hinge (2) and place it on the opposite
side.
5 Rotate the door, align and secure the
door with the lower hinge pin (1).
After the hinge has been mounted on the
opposite side, threaded washers must
be refitted in their former position. This
increases the stability of the cabinet.
