Nimos Micro-Trac - Operation Controls

Usermanual NIMOS Micro-Trac Page 10

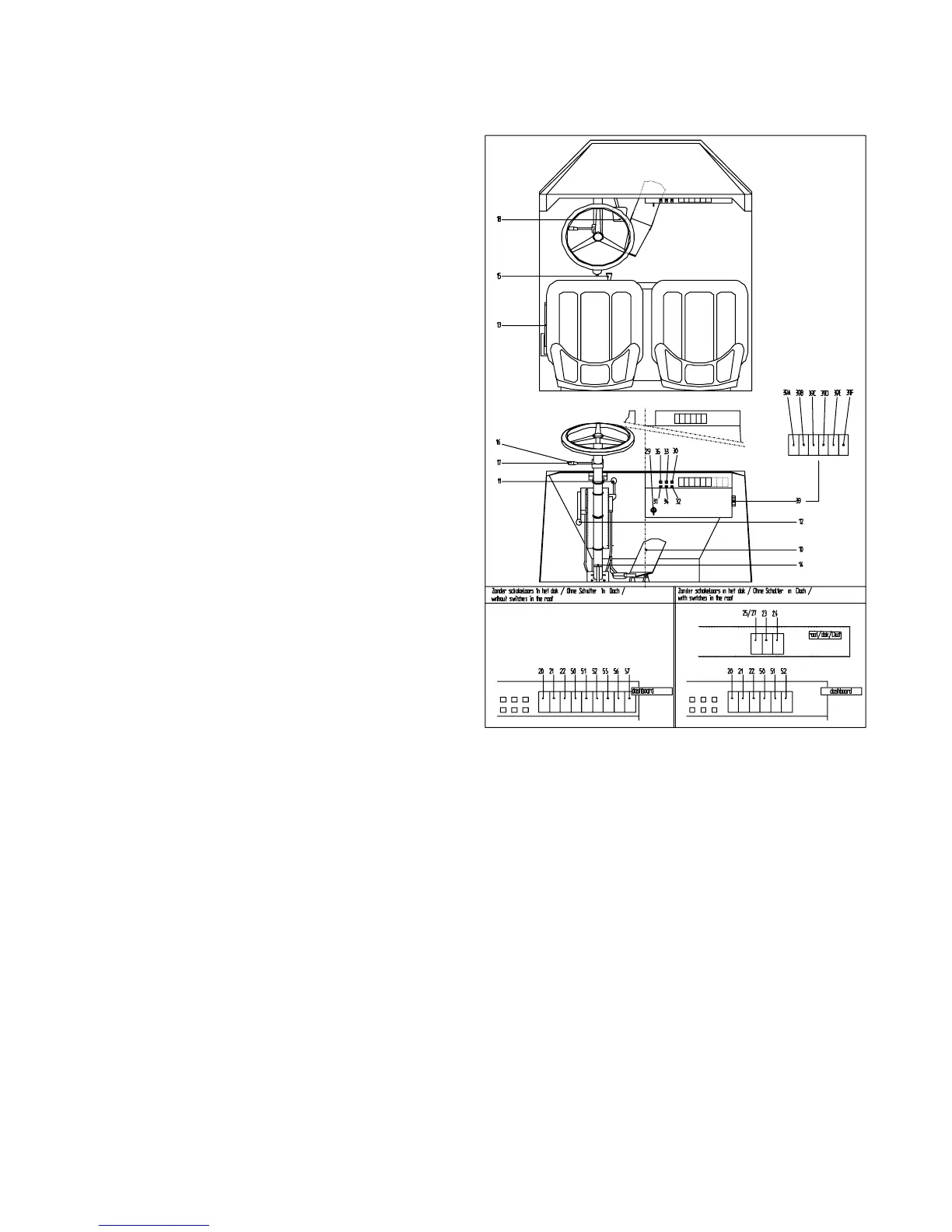

3 Operation controls
Nr. Description.
10. Drive pedal (forward/rearward)and speed control
11. Throttle lever36-9211
12. Lever high and low gearingdrawing
13. Parking brake70-0371
14. Differential lock pedaldrawing
15. Choke-button36-9134
16. Switch direction indicator35-2215
17. Switch horn35-2215
18. Brake pedal
20. Switch lighting35-6404
21. Switch alarm35-6418
22. Switch tipping platform35-6420
23. Switch windscreen wiper35-6402
24. Switch windscreen washer35-6422
25. Switch rotary beacon35-6418
26. Switch blower35-6418
27. Switch work lamp35-6418
29. Starting switch (key)
b
35-2242
30. Maximum engine temperature
31. Air filter Renew air filter and reset the switch.
32. Charging current No charging current. Stop machine.
33. Fuel Little fuel in the tank: fill tank.
34. Oil pressure.
35. Glowing Cold engine pre-heats till the lamp goes out.
36. Control lamp direction indicator.
39. Fusebox35-2247
39A. 10A (hydraulic)35-2241
39B. 10A (horn and rearward driving light)35-2241
39C. 10A (windscreen wiper and blower)35-2241
39D. 10A (direction indicators, radio)35-2241
39E. 10A (lighting R.)35-2221
39F. 10A (lighting L.)35-2241
50. Switch hydraulic PTO (SA/front)35-6418
51. Switch hydraulic DA (front)35-6422
52. Switch hydraulic front lift (SA)35-6420
55. Switch hydraulic PTO (SA/rear)35-6418
56. Switch hydraulic DA (rear)35-6422
57. Switch hydraulic rear lift (SA)35-6420
