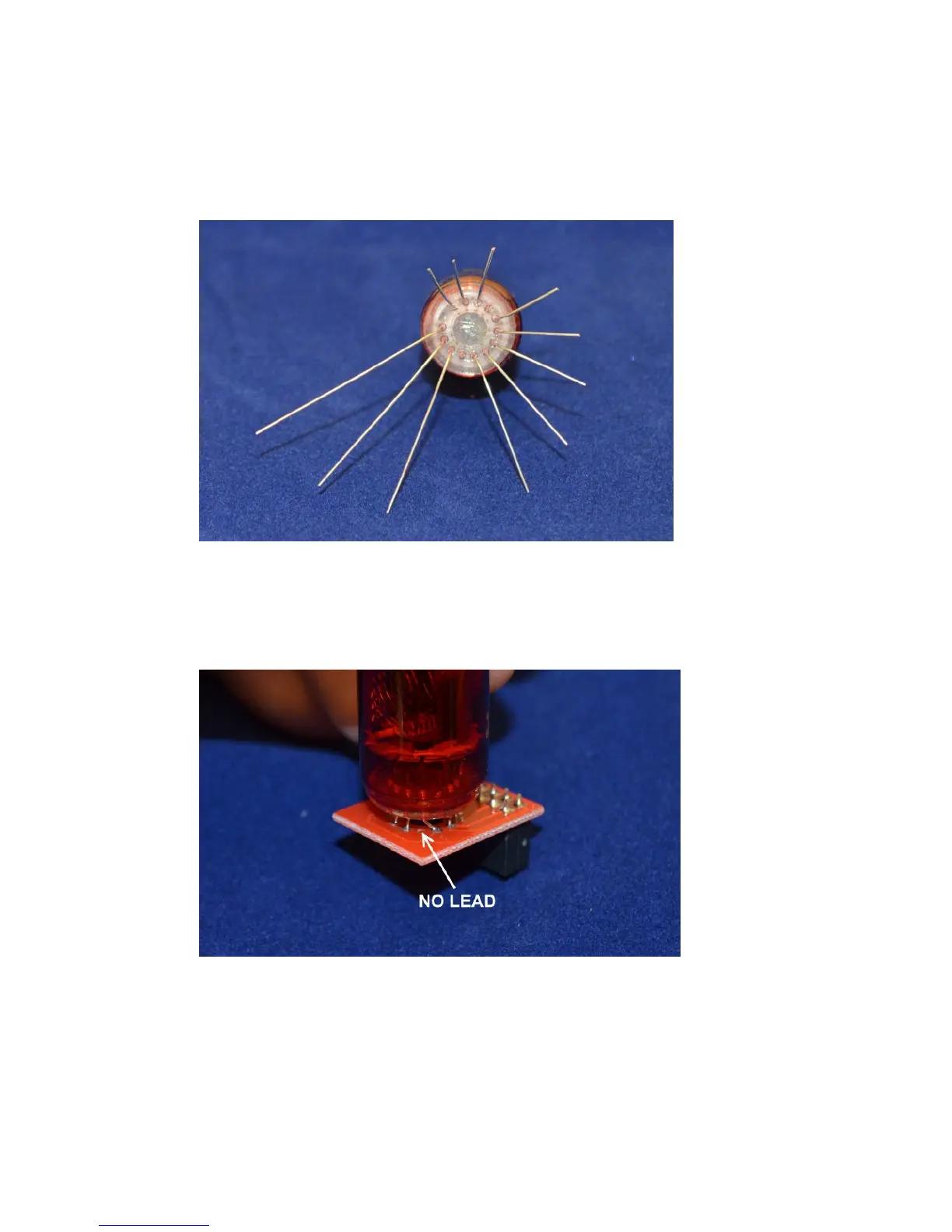

Then, working around the tube, cut each sucessive lead approx
2mm shorter than the previous one. This will allow you to feed
each lead in in turn.
Now you can insert and solder in the tube.
There are 11 leads on the trimmed tube and 12 pads on the PCB.
One of the pads on the PCB is unconnected. DO NOT INSERT A
LEAD INTO THIS HOLE:
