Insert from the side of the PCB with no markings.
Pay attention that the tube sits squarely on the PCB.
Then solder on the connector.

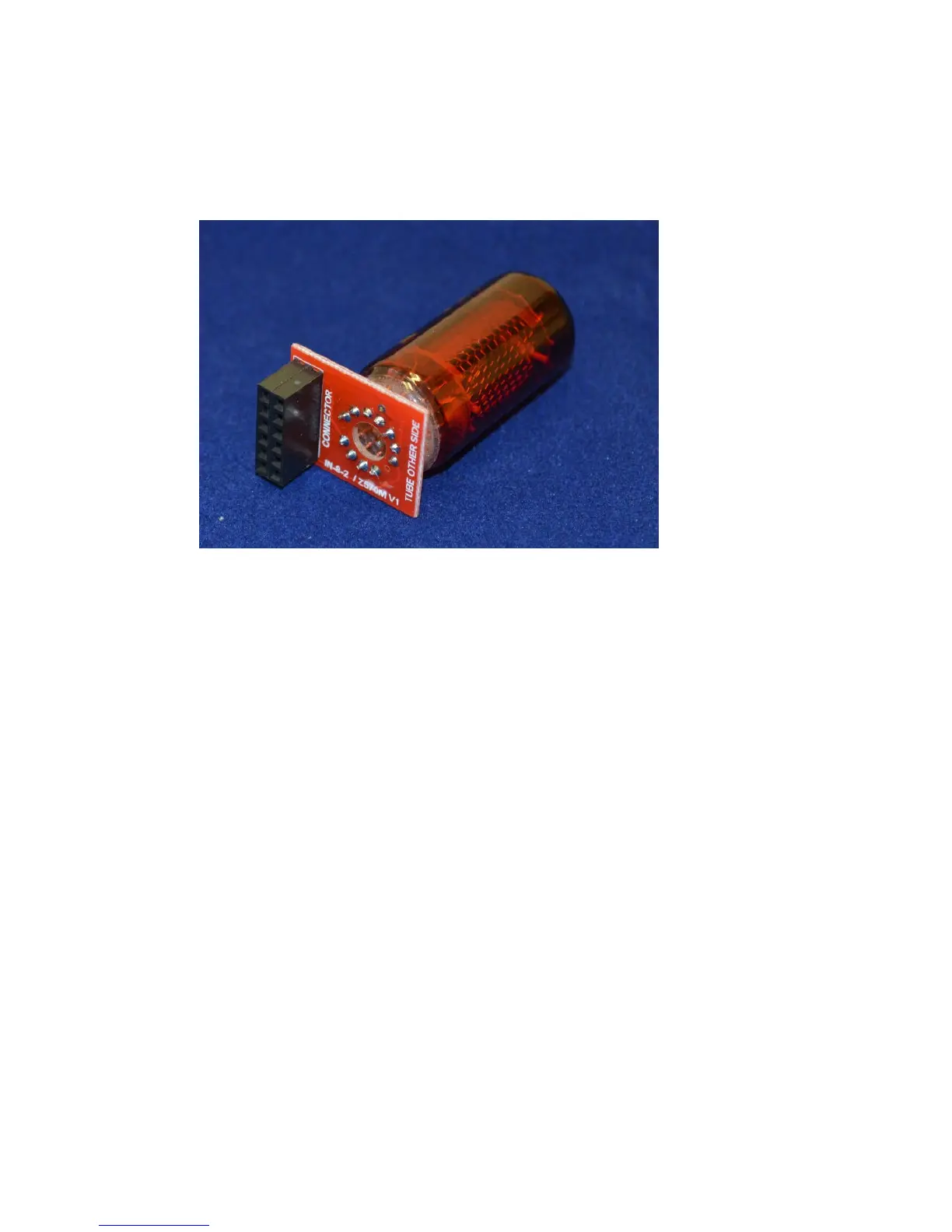

The tube cell is now complete. Repeat for the other 5 tubes.
Then move on to step 6.
