32 47_processor_Regatta_um_UK_40
TWD port > TWD starbord :
Add hald of the difference between both values.
For this purpose a correction table « Adjwa.d » is available at the following address in the
Processor Regatta:
ftp://root:pass@192.168.0.232/mnt/flash/processor/tables ,

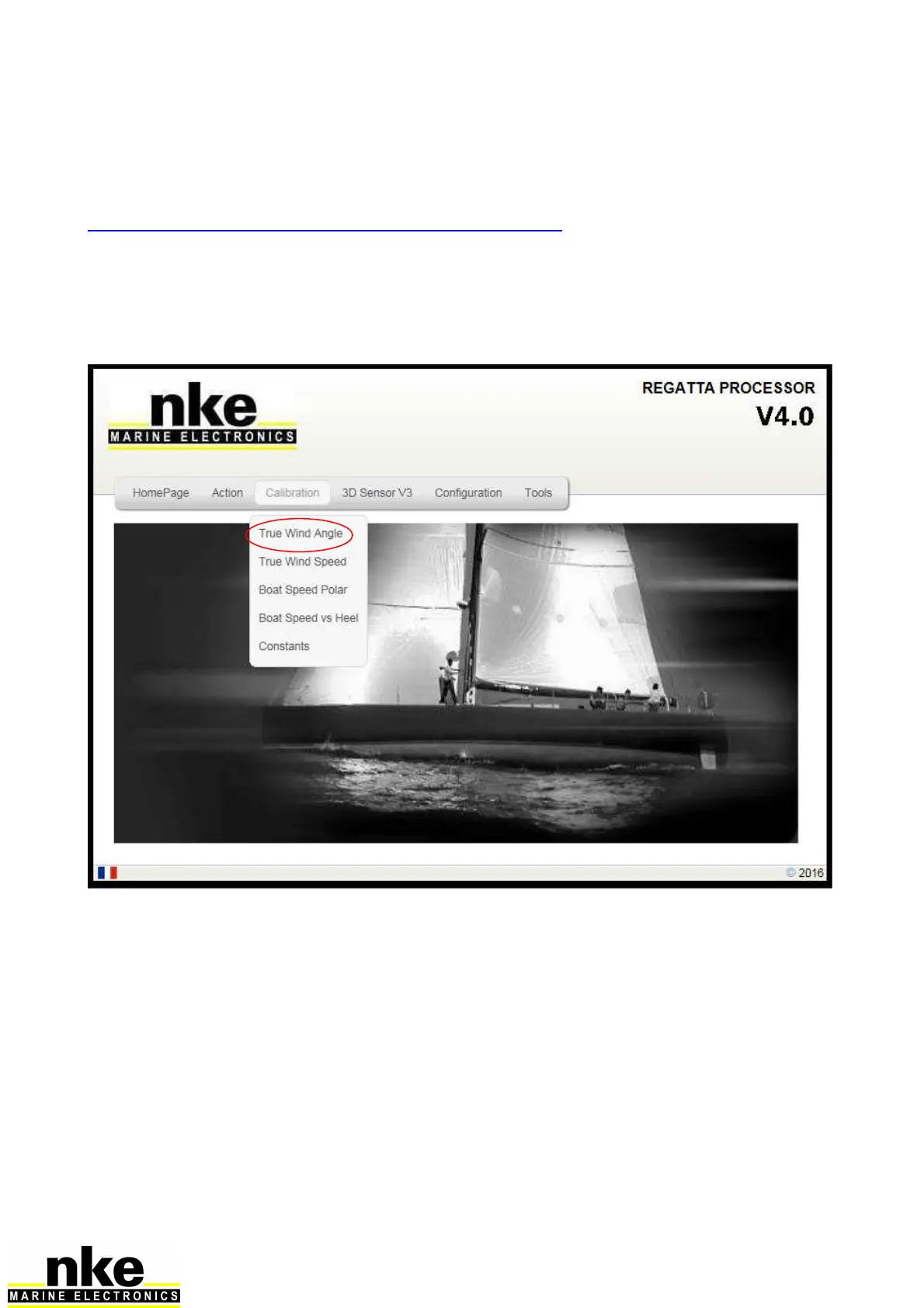

Alternatively, you can access that table from the home page under « Calibration » and
then « True Wind Angle ».
If the table already contains values, the corrections will be added to the existing entries.
The table below is a True Wind Angle correction example. The column on the left shows
true wind speed in knots. V1 is the correction in degrees. A1 is the angle for which the
correction is applied. Same for V2 and A2 (reaching) ; and V3 and A3 (downwind).
