1.4 General Lubrication Diagram
Item Specification Fig.
Lubricate stair unlock mechanism shaft through
the grease fittings on each shaft bracket.
All purpose grease 1
Lubricate the safety release linkage to both the
stair and upper frame support.
SAE No.10 1
Lubricate the moveable handrail wheel bearings
and latches.
SAE No. 10 1
Apply coating of grease to inside of main channel. All purpose grease 1
Lubricate truck components as recommended by
truck manufacturer.
Ford F300 manual 1
Lubricate stabilizer pivot pins. SAE No. 10 1
CHAPTER 2 MAINTENANCE SEPTEMBER 30, 2008
1 SERVICING PAGE 5
Truck Mounted Passenger Stair TMPS-200 Manual No. 307559

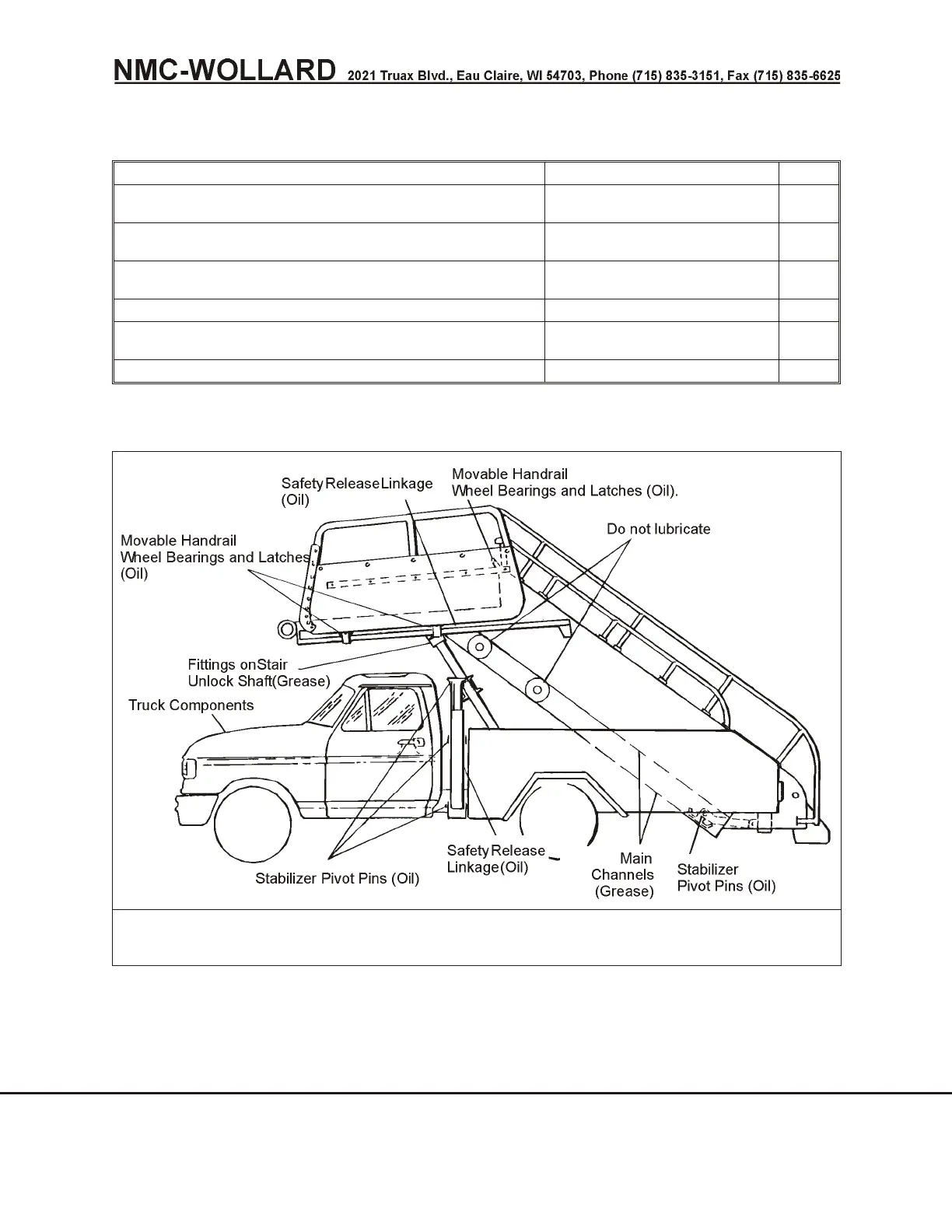

FIGURE 1.
LUBRICATION POINTS
