3.10 Installation of Optional Canopy
3.10.1 Deck Section
Figure 2
The Deck section is the first canopy section to be installed. The stair must be
DOWN.
1. Unpack wings and all canopy components.
2. Install wings onto stair deck. See instructions in the Passenger Stair
Manual.
3. Install a temporary safety guard between the deck forward handrails.
Suggested method: A steel bar or heavy wood beam secured to handrails
with 10-15 wraps of reinforced tape (such as duct tape).
SEPTEMBER 30, 2008 CHAPTER 2 MAINTENANCE
PAGE 10 3 REMOVAL AND INSTALLATION
Truck Mounted Passenger Stair TMPS-200 Manual No. 307559

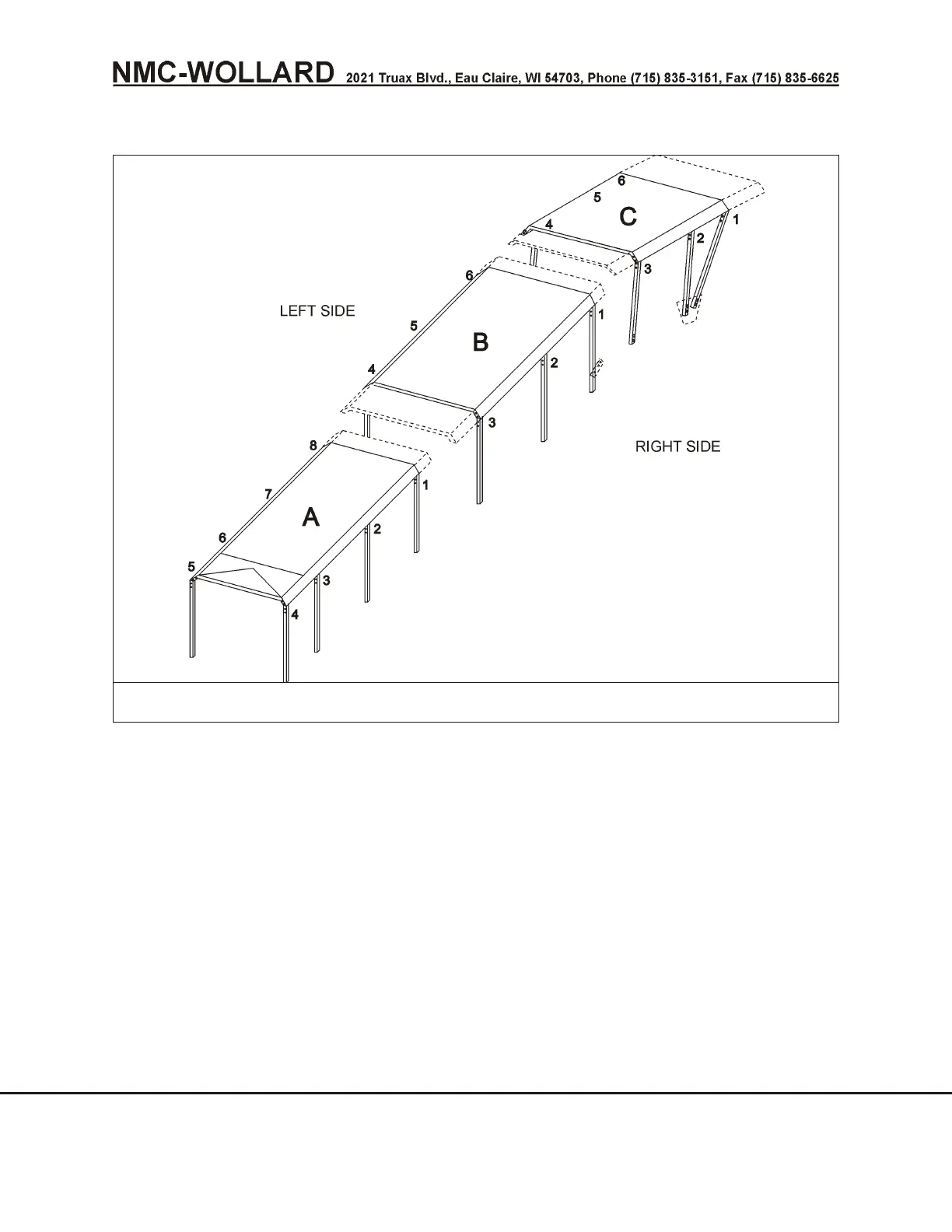

FIGURE 1. OPTIONAL CANOPY
