Install a temporary safety guard between handrails across
front of deck to help prevent a fall and furthermore each person working on the
stair deck should wear a safety harness secured to the deck.
4.
Place deck section canopy on a non-scratch surface, top side down.
NOTE: Roof pins are shipped installed.
5. Install (6) deck posts onto the roof pins. Refer to Figure 2 to determine
correct location for the different post lengths. Secure the posts with 3/8
capscrews and washers. Capscrews must face the same direction.
6. Stand deck canopy section on its posts. Attach slings and lift deck section
using a crane, OR, with four people, lift the deck section and carry it up to
the stair deck.
CHAPTER 2 MAINTENANCE SEPTEMBER 30, 2008
3 REMOVAL AND INSTALLATION PAGE 11
Truck Mounted Passenger Stair TMPS-200 Manual No. 307559

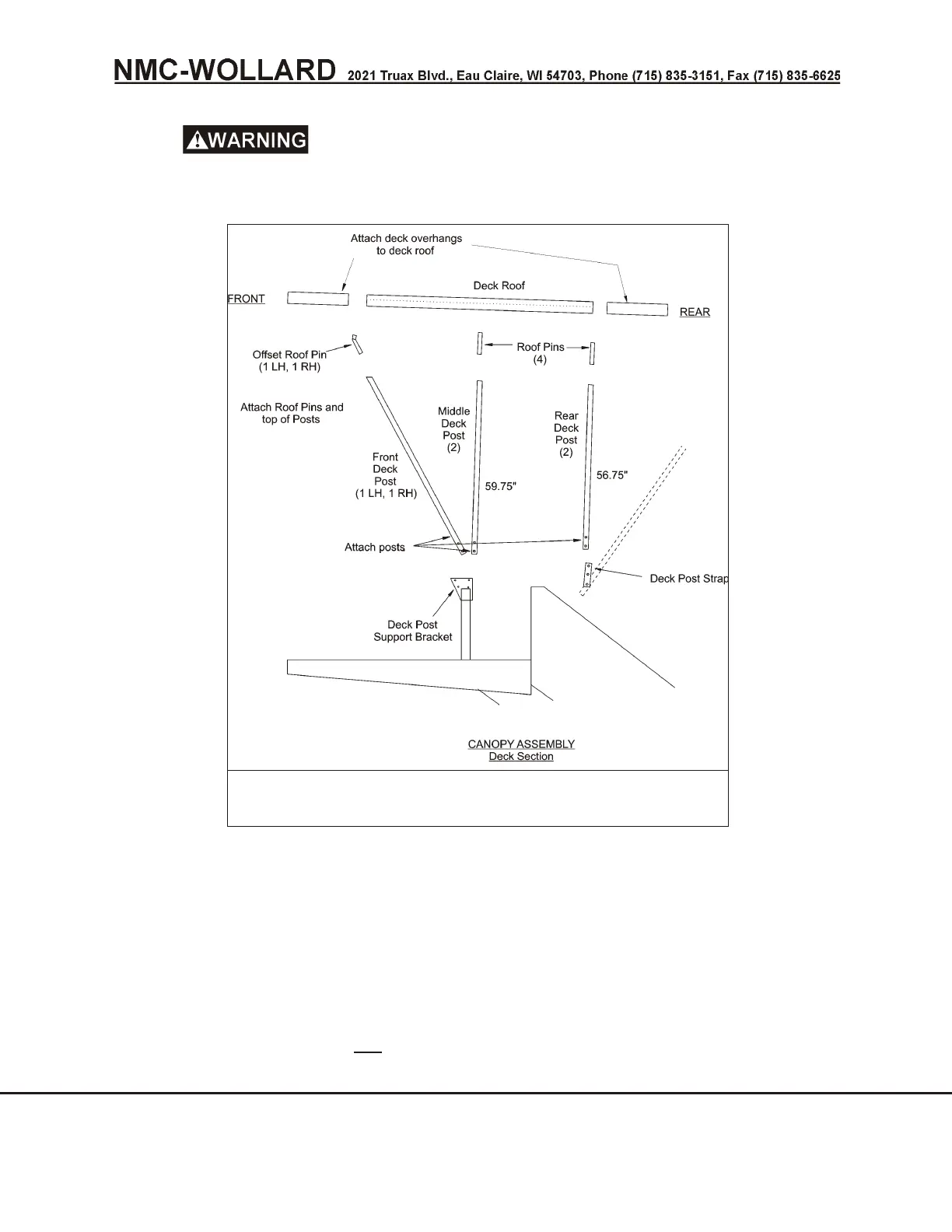

FIGURE 2.
CANOPY ASSEMBLY DECK SECTION
