7. Secure front and middle posts to outside of mounting plate with 3/8
capscrews and washers. Capscrews should face inward.
8. Lower Section
3.10.2Lower Section
Figure 3 and Figure 4
1. Install the deck section can opy.
2. Place lower canopy section on a non-scratch surface, top side down.
NOTE: Roof pins are shipped installed.
3. Install (8) 40-inch posts onto the roof pins. Install, but do not tighten, 3/8 x
0.75 capscrews and washers. All capscrews should face out.
4. Raise the stair to its fullest extent.
5. Stand lower section on its posts. With one person on each post (6 people
needed), lift the section and carry it up the stair.
6. Place posts onto the brackets. Secure posts to brackets using 3/8 x 0.75
capscrews and washers. All capscrews should face out.
Truck Mounted Passenger Stair TMPS-200 Manual No. 307559
SEPTEMBER 30, 2008 CHAPTER 2 MAINTENANCE
PAGE 12 3 REMOVAL AND INSTALLATION

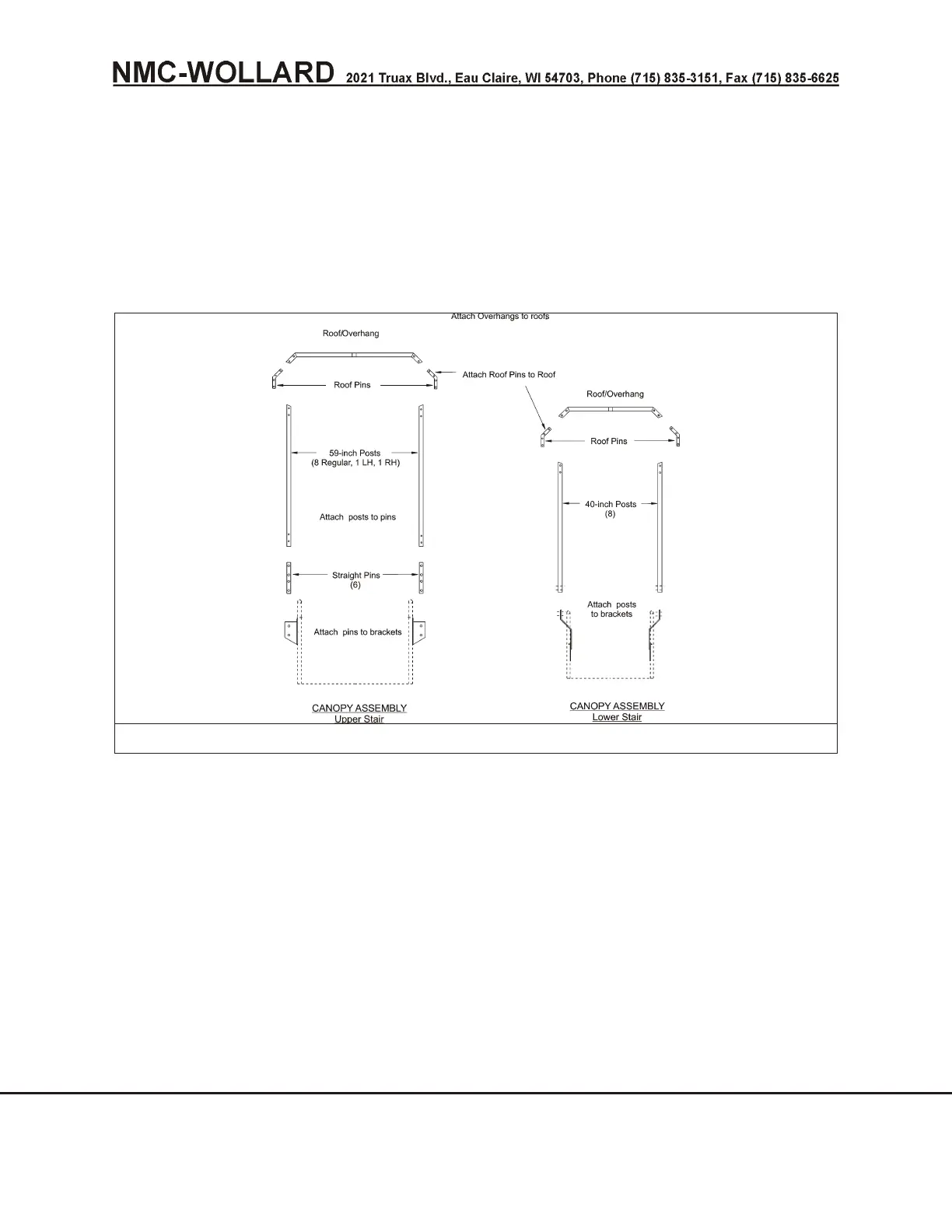

FIGURE 3. CANOPY ASSEMBLY LOWER SECTION
