NOTE: The brackets are shipped installed on the stair.
7. Attach upper section overhang to upper section using 3/8 x 0.75
capscrews and washers.
8. Make sure upper Section handrails do not contact lower Section posts. If
needed, loosen handrail and/or post fasteners and move handrails and/or
posts and retighten fasteners.
3.10.3 Final Assembly
1. Stand directly behind the stairs and check that the each canopy Section
is centered and square. Check all clearances. Readjust as required.
2. Tighten 3/8-16 capscrews to pins inside aluminum tubes to 30 ft/lbs
torque.
3. Tighten capscrews through aluminum tubes without deforming washers
or tubes.
3.10.4Upper Section
Figure 5
Truck Mounted Passenger Stair TMPS-200 Manual No. 307559
CHAPTER 2 MAINTENANCE SEPTEMBER 30, 2008
3 REMOVAL AND INSTALLATION PAGE 13

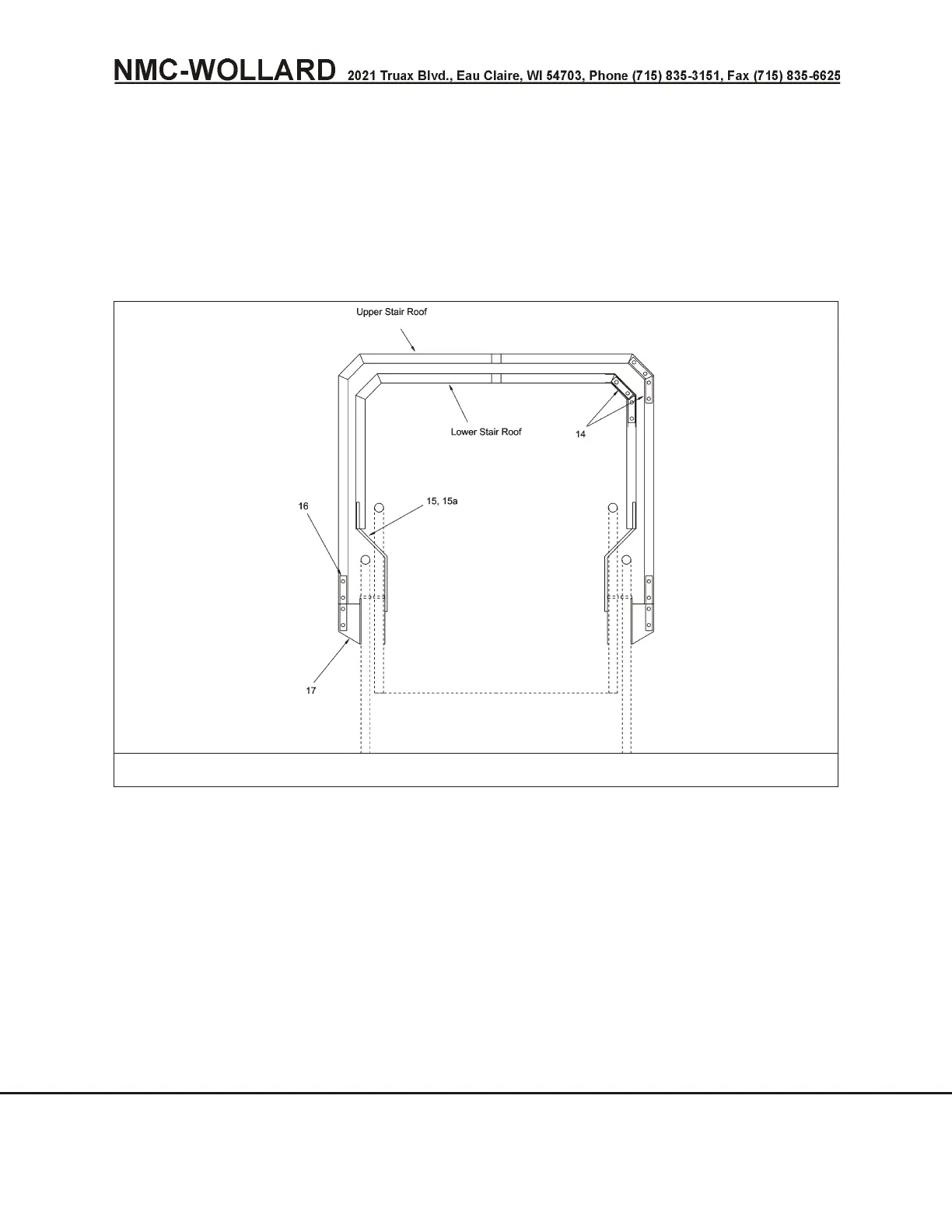

FIGURE 4. CANOPY ASSEMBLY LOWER SECTION
