ACCESSORY: PRODUCT SPRAYNG FLAPS
GUARDS FOR OPEN MACHINE OPERATIONS
MAX
SPRAYNG
FLAPS
POSITION
MIN
SPRAYNG
FLAPS
POSITION
The flaps inclination can be changed by choosing
different holes.

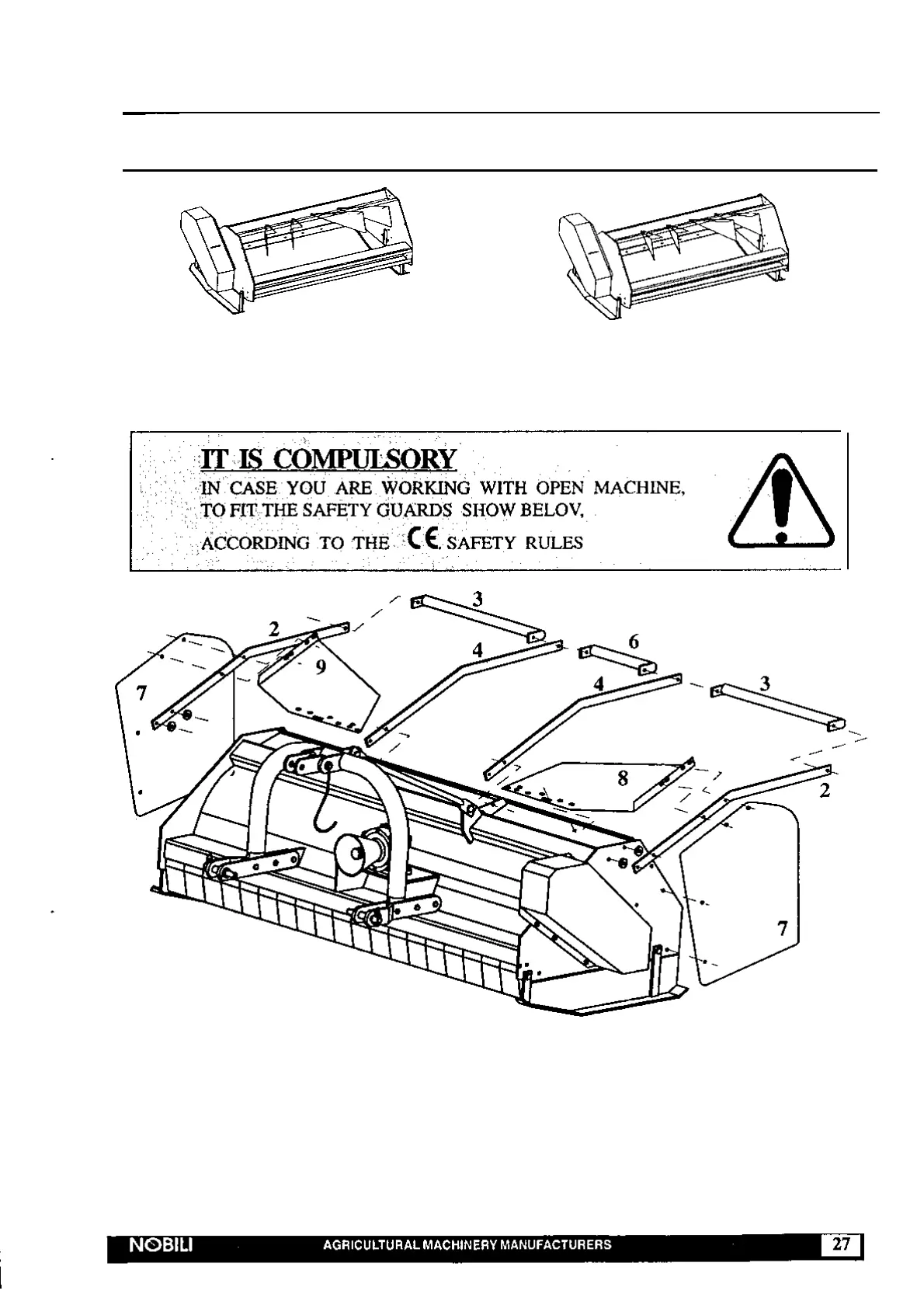

FITTING
Firts mount parts
2
with
spacer and bolts, after lateral sheet
7,
do
not
tight
nuts
.
Fit sheet
8,
and now tighen all bolts.
Repeat operation on the other side.
Fit
parts
4,
and rear protections
3
and
6.
6
