Nobles FALCON 2800 PLUS - Machine Components; Control Panel Symbols

OPERATION
Falcont 2800 Plus (08- 03)
7

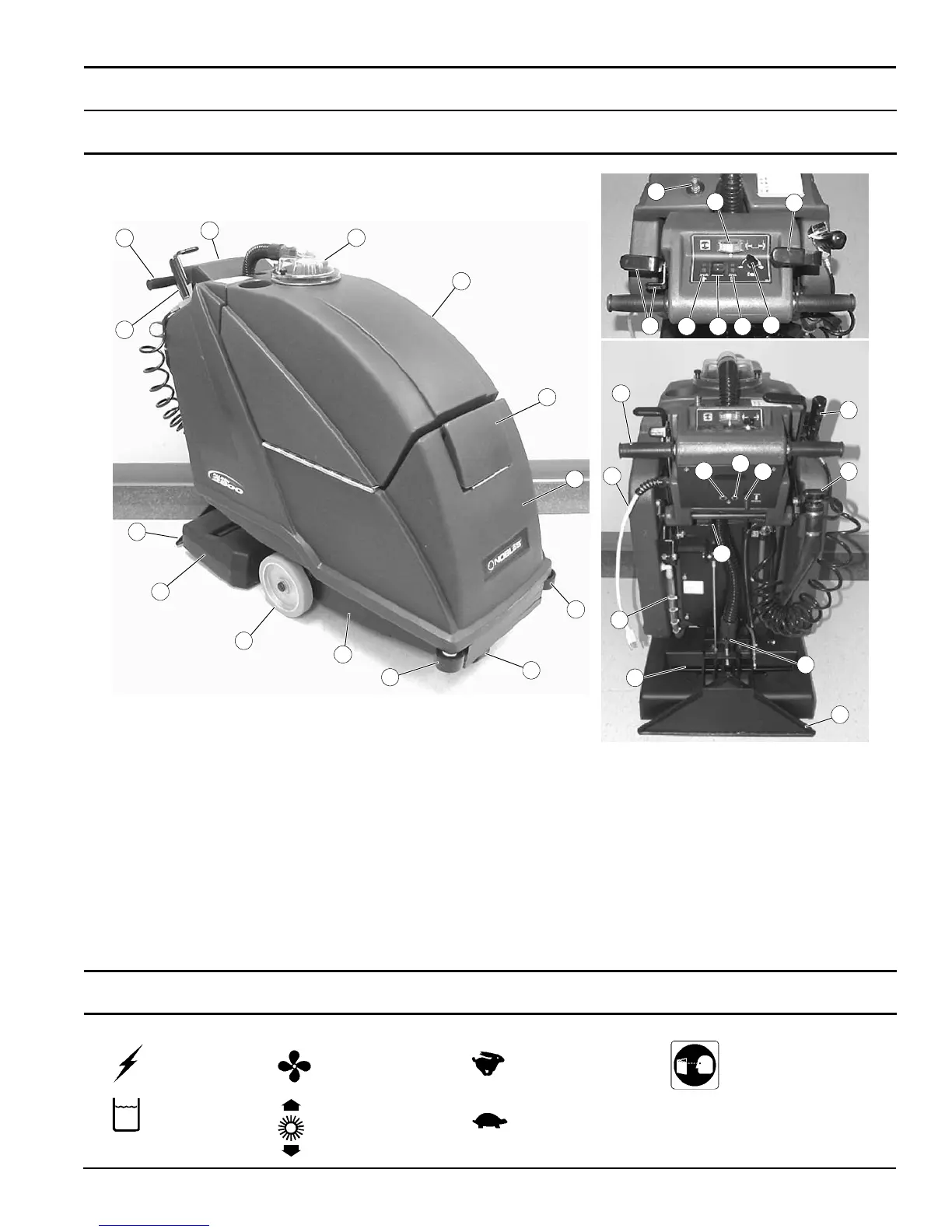

MACHINE COMPONENTS
17
20
1918
13
15
14
16
25
22
23
3
24
21
28
29
30
26
27
2
5
6
2
3
8
10
8
11
4
7
12
1
9
30
1. Control Console
2. Control Grips
3. Prespray Wand
4. Recovery Tank Dome
5. Recovery Tank
6. Solution Tank Fill Door
7. Solution Tank
8. Wall Rollers
9. Front Caster
10. Inline Solution Filter Strainer
11. Non - Marking Drive Wheels
12. Brush Base
13. Accessory Solution Hose Coupler
14. Brush Pressure Meter
15. Reverse Release Lever
16. Brush Lever Raise/Lower
17. Vacuum ON/OFF Switch
18. Main ON/OFF Switch
19. Pump ON/OFF Switch
20. Speed Control Knob
21. Power Cord Pigtail
22. Brush Motor Circuit Breaker
23. Drive Motor Circuit Breaker
24. Recovery Tank Drain Hose
25. Cleaning Mode Switch
26. Adjustable Control Console Levers
27. Solution Tank Level Indicator
28. Spray Bar
29. Brush Height Adjustment Knob
30. Vacuum Pick-Up Head
CONTROL PANEL SYMBOLS
Main
Power
Vacuum
Brush
Pressure
Fast
Speed
Slow
Speed
Read Manual
Before Operating
Pump
