4. PBX installation

An analog trunk interface of a PBX, or an analog telephone set can be installed to

the trunk connector of the Nokia 32 terminal. The extension connector of the

Nokia 32 terminal is used for connecting the terminal to an extension line of a

PBX. This section describes the mandatory settings needed when connecting the

Nokia 32 terminal to a PBX trunk interface. For more information about PBX

configuration, contact your PBX service provider.

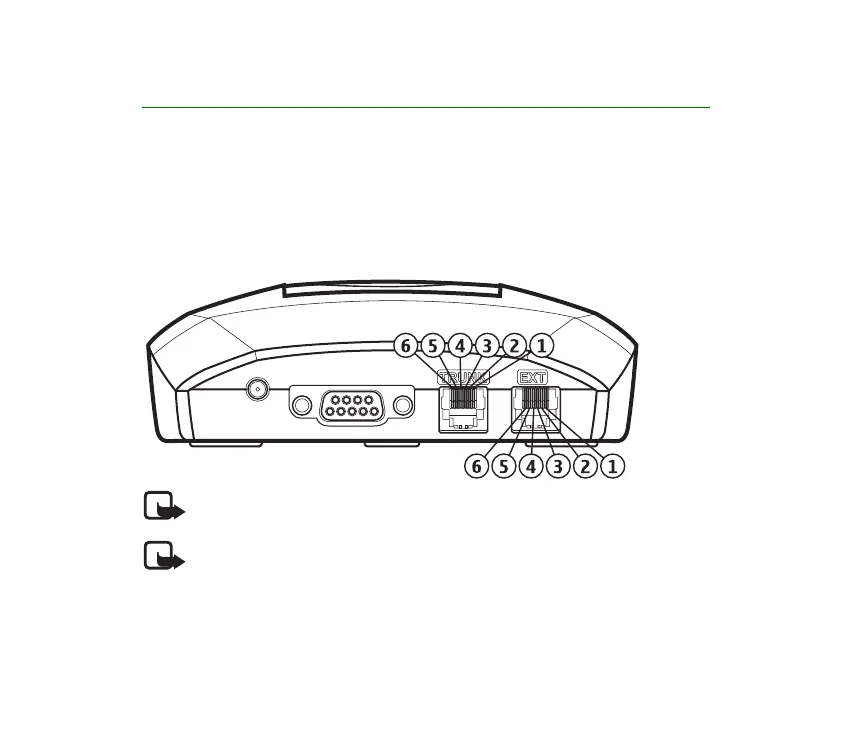

Note: In the figure above, the pin numbers equal to the physical

connector, not the wire itself.

Note: If you connect a landline phone to the trunk connector, check that

only pins 3 and 4 are connected from the Nokia 32 terminal to the

telephone set.
