18

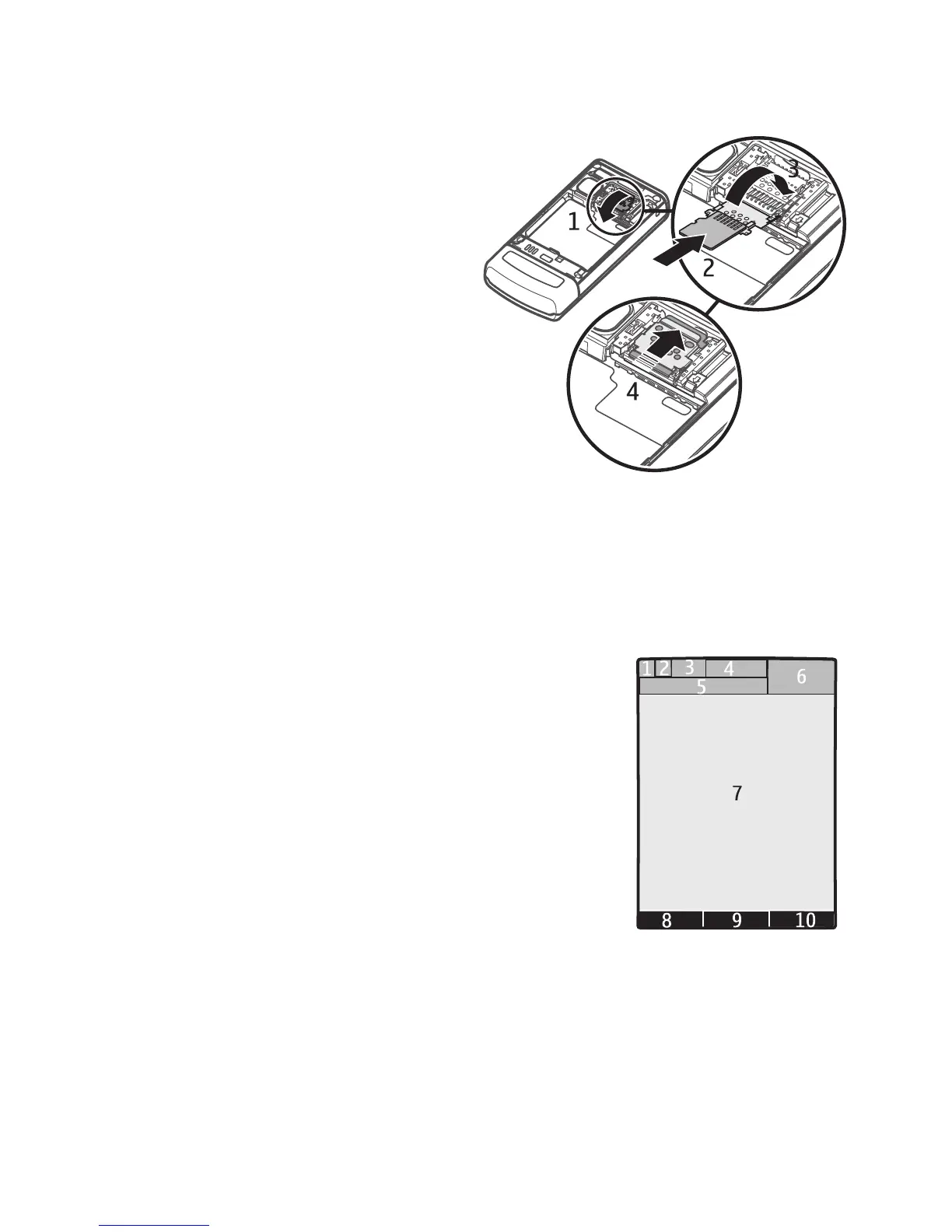

1. Remove the battery cover of the
phone. Swing the microSD
memory card holder open (1).
2. Insert the card with the gold-
colored contact area facing up (2).
Swing the card holder back in
place (3), and close it at shown (4).
Replace the battery cover.
Remove the microSD card in
reverse order.
■ Standby mode
When the phone is ready for use, and you have not entered any characters,
the phone is in the standby mode.
1. 3G indicator
2. Signal strength of the cellular network
3. Battery charge level
4. Indicators. See "Indicators," p. 19.
5. Name of the network or the operator logo
6. Clock
7. Display
8. The left selection key (8) is Go to or a shortcut to
another function. See "Left selection key," p. 38
9. The middle selection key (9) mode is Menu.
