11 Mounting and connecting the
Nokia FastMile 4G Receiver
11.1 Overview
11.2 Mounting and connecting the Nokia FastMile 4G Receiver
11.1 Overview
After you have determined the mounting location for the Nokia FastMile 4G Receiver
as described in chapter 10, you can mount the Nokia FastMile 4G Receiver on a wall
or pole, and make connections to it as described in this chapter.
As part of mounting and connecting the Nokia FastMile 4G Receiver you will be
working with most of the physical interfaces shown in the following figures:
• Figure 46 shows the location of the physical interfaces on the Compact
mono-band and ABA models of the Nokia FastMile 4G Receiver
• Figure 47 shows the location of the physical interfaces on the underside of the
Compact multi-band models of the Nokia FastMile 4G Receiver

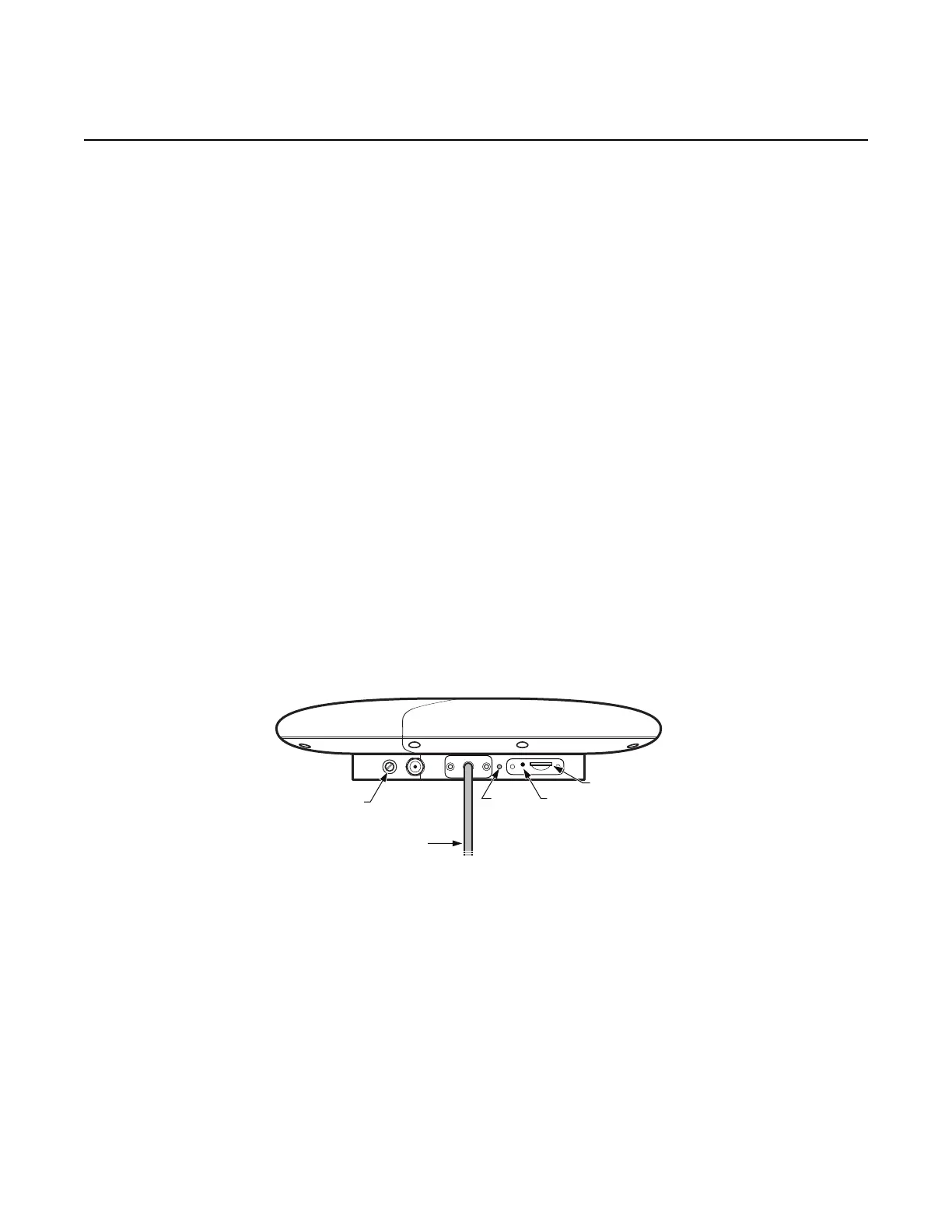

Figure 46 Location of physical interfaces on the Compact mono-band and ABA models of the
Nokia FastMile 4G Receiver
SIM slot
Ground point
Ethernet Cable
Status
LED
Reset
button
28797
