Nokia FastMile 4G - Figure 58 Location of the Measurement Button; Figure 59 Location of the Signal Strength Leds

Nokia FastMile 4G Receiver Installation Guide Mounting and connecting the Nokia FastMile 4G
Receiver
Issue: 01 3TG-00387-ABBA-TCZZA 99

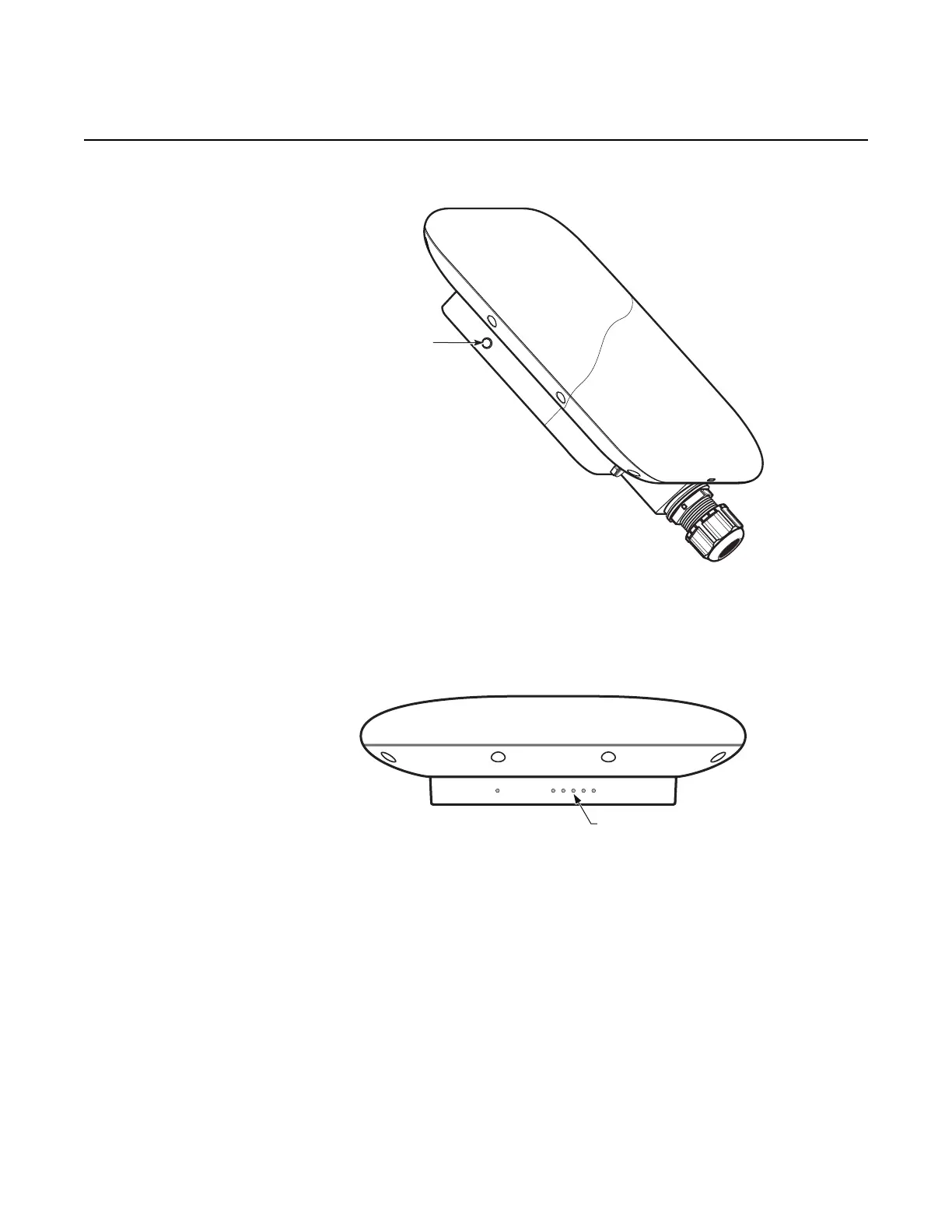

Figure 58 Location of the measurement button
Figure 59 shows the location of the signal strength LEDs.
Figure 59 Location of the signal strength LEDs
After the Nokia FastMile 4G Receiver receives power, all five signal strength LEDs turn on
for five seconds and then turn off.
During measurement, the five signal strength LEDs blink one-by-one on a
1,2,3,4,5,off,1,2,3,5,off cycle repeatedly until the best signal in the direction is found. When
the best signal in the direction is found, the number of LEDs that correspond to the signal
strength level will blink together for five seconds. For example, if the signal strength is fourth
level, LEDs 1, 2, 3, and 4 will blink together for five seconds.
Measurement button
28885
28773
Signal strength LEDs
