Get started
Insert SIM card and battery
A USIM card is an enhanced version of the SIM card and is
supported by UMTS mobile phones.

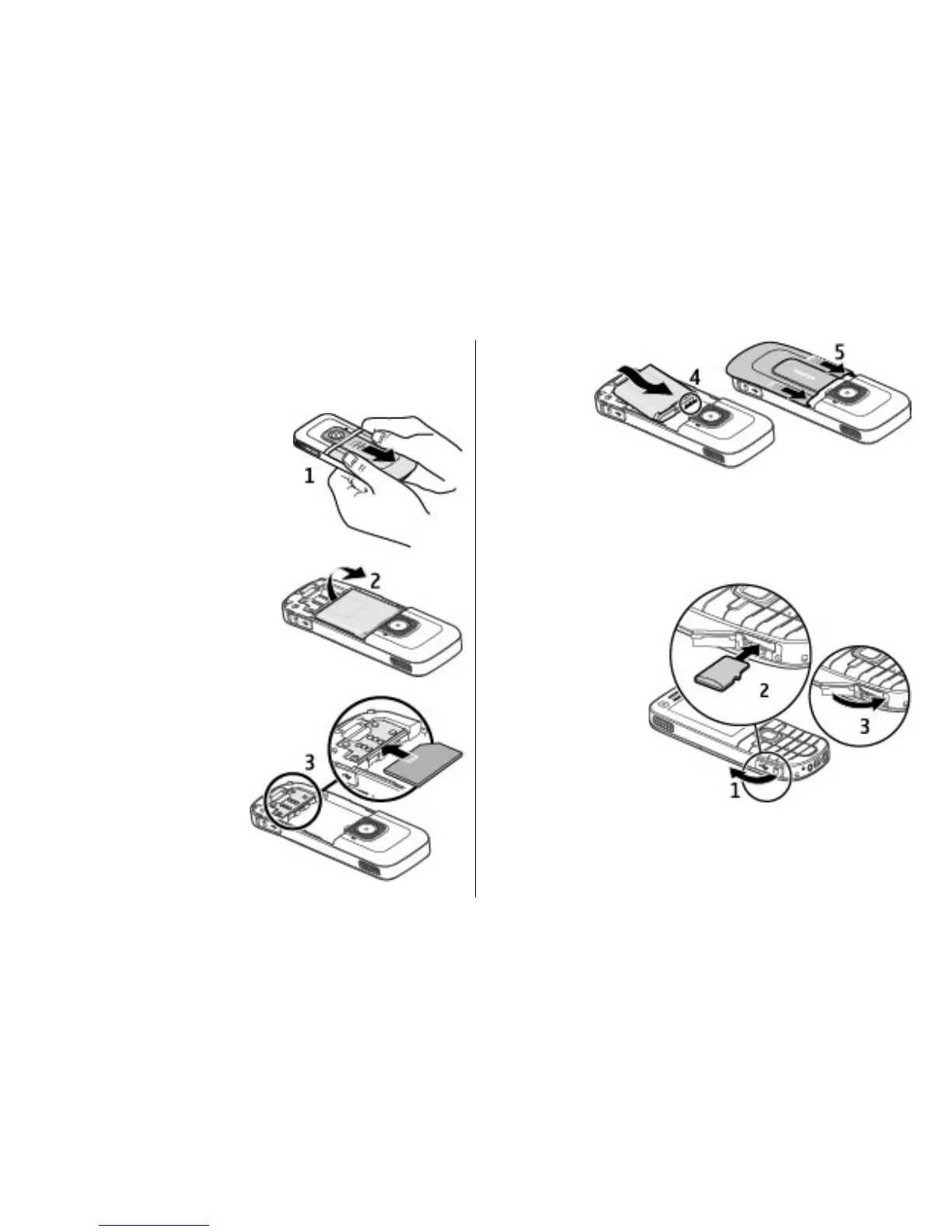

1. To remove the back cover of the
device, press the back cover
with your fingers, slide the
cover open (1), and lift the cover
off.
2. To remove the battery, lift it
from the end (2).
3. Slide the SIM card into the SIM
card holder (3).
Make sure that the gold-
coloured contact area on the
card is facing down on the
device, and the bevelled
corner is facing toward the
card holder slot.
4. Replace
the
battery
(4).
5. Replace
the back
cover (5).
Insert a memory card
The memory card may be supplied with the device, and may
already be inserted.
1. Open the memory card slot cover (1).
2. Place the card in
the slot with the
contact area
facing down (2).
3. Push the card
gently to lock it
into place. Close
the slot cover (3).
© 2009 Nokia. All rights reserved. 9
