Nokia N80 - Bluetooth Self Tests in Phoenix

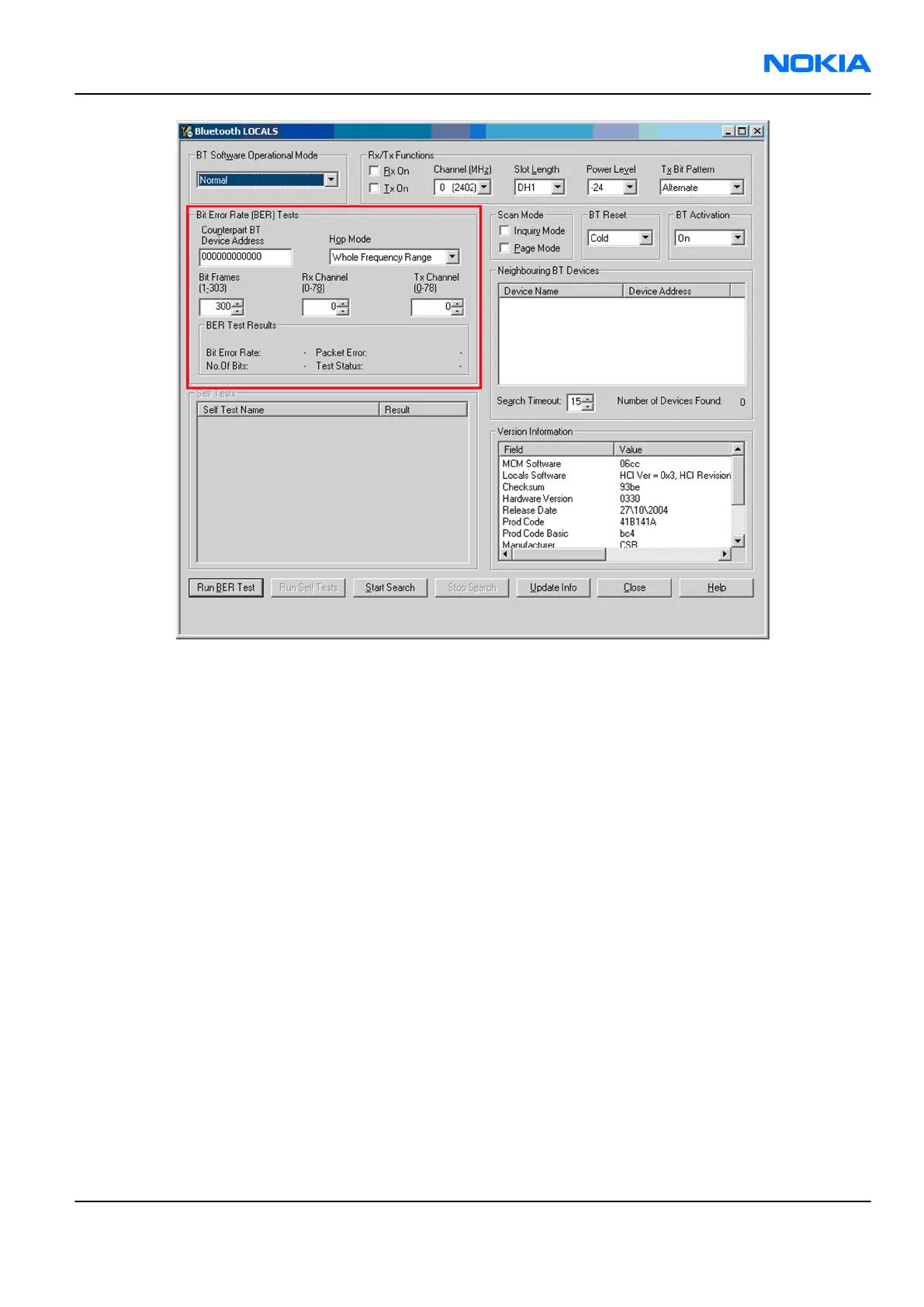

Figure 50 BER test result
Bluetooth self tests in Phoenix
Steps
1. Start
Phoenix service software.
2. ChooseFile→Scan Product.
3. Place the phone to a flash adapter.
4. From the Mode drop-down menu, set mode to Local.
5. Choose Testing→Self Tests.
6. In the
Self Tests window check the following Bluetooth related tests:
• ST_LPRF_IF_TEST
• ST_LPRF_AUDIO_LINES_TEST
• ST_BT_WAKEUP_TEST
RM-91; RM-92
BB Troubleshooting and Manual Tuning Guide Nokia Customer Care
Issue 1 COMPANY CONFIDENTIAL Page 6 –53
Copyright © 2006 Nokia. All rights reserved.
