Nokia RM-598 Service Manual

WCDMA transmitter troubleshooting
Steps
1. Set the phone to local mode.
2. In Phoenix, select Testing→WCDMA→Tx control . The Tx Control window opens.

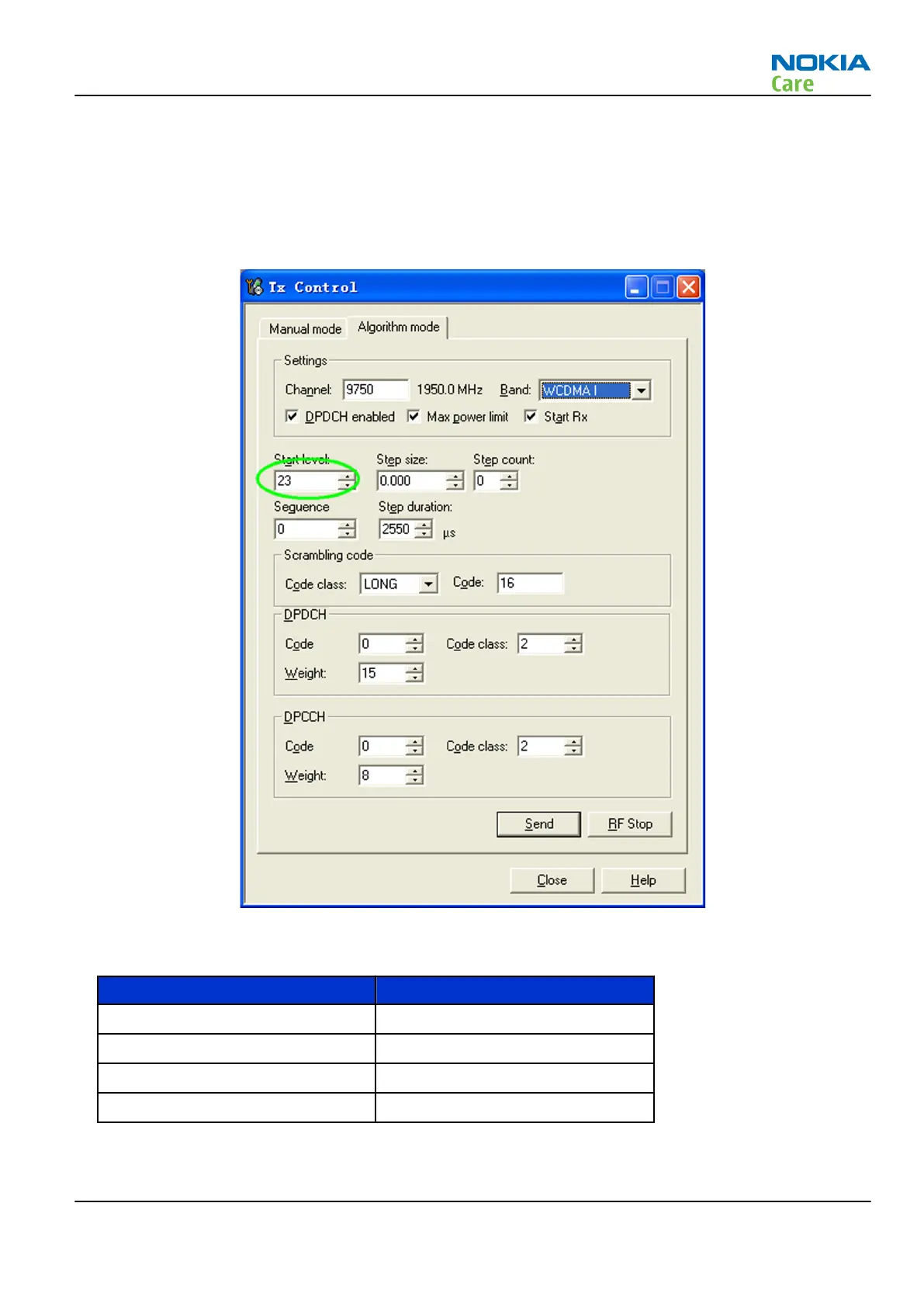

Figure 21 Phoenix WCDMA Tx control window
3. Make settings for the band to be tested, according to the following table:
Band Channel
WCDMA I 9750
WCDMA II 9400
WCDMA V 4183
WCDMA VIII 2788
4. Make the following general settings (the same values for all bands). Note that Max power limit is not
checked by default.
RM-598; RM-604
RF Troubleshooting
Issue 1 COMPANY CONFIDENTIAL Page 4 –21
Copyright © 2009 Nokia. All rights reserved.
