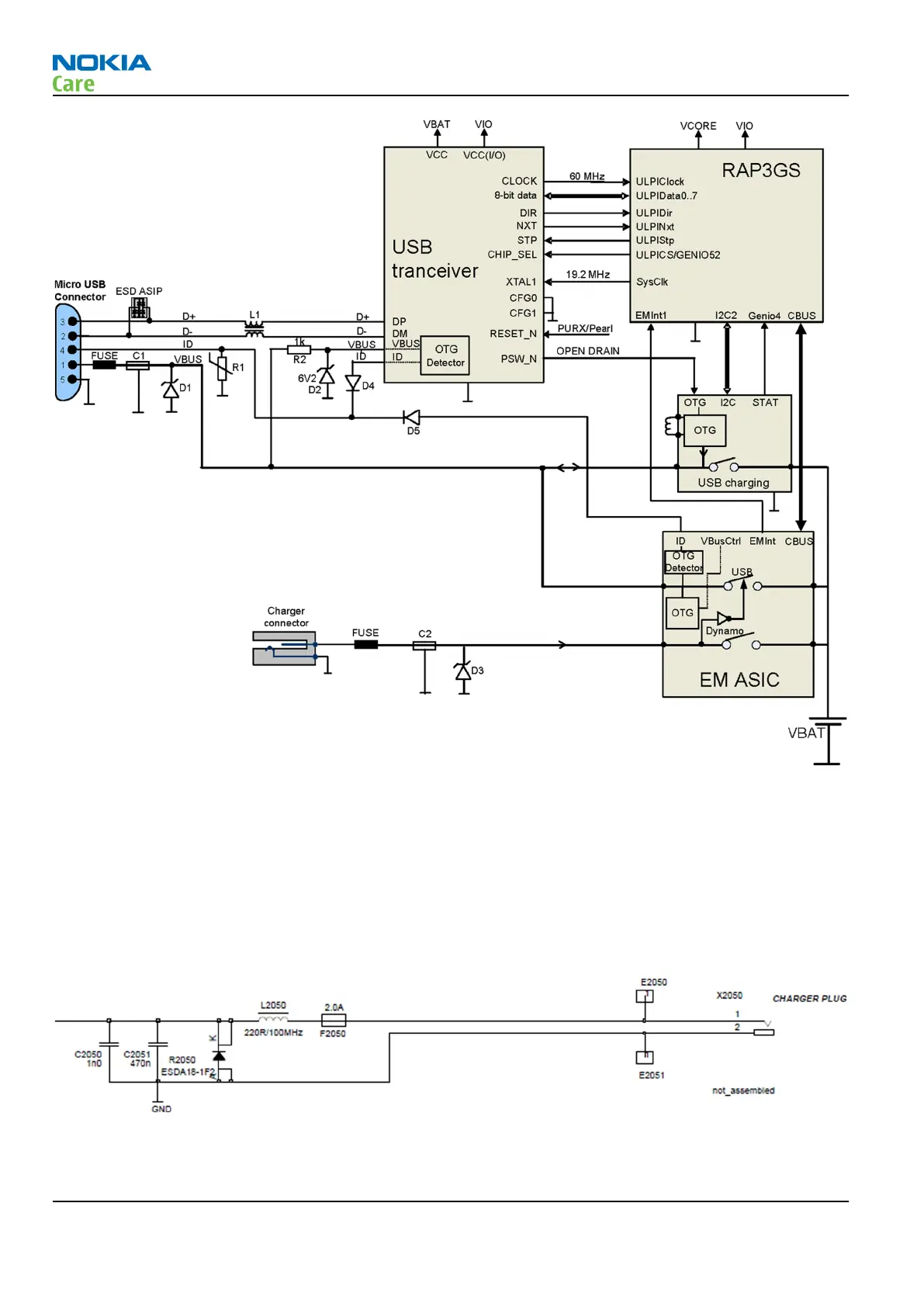

Figure 31 USB interface
The phone supports full speed (12 Mb/s) in device mode.
Charger interface
The charger interface is a 2 mm Dynamo charger plug. Older chargers with a 3.5 mm plug are supported via
the charger adapter cable CA-44.
Charging is controlled by GAZOO (N2200). Additional external components are needed for EMC purposes,
reverse polarity and transient protection of the input to the baseband module.
Figure 32 Charger interface
RM-598; RM-604
System Module
Page 5 –12 COMPANY CONFIDENTIAL Issue 1
Copyright © 2009 Nokia. All rights reserved.
